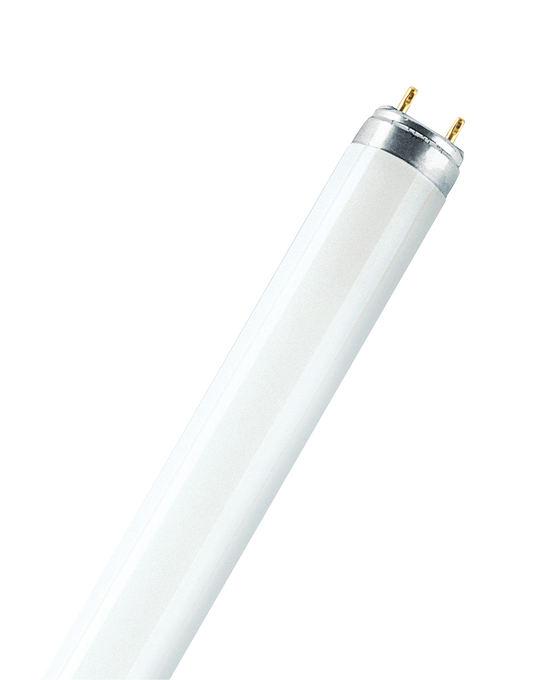

L 36 W/950
4008321423047
Product benefits
- Accurate chromaticity coordinates
- Stable light-technical and electrical data
- Uniform coating
Areas of application
- Printing industry, graphic workshops, photographic laboratories
- Industrial inspection and color matching facilities
- Incoming goods inspection
Product features
- Meets the application requirements of ISO 3664:2009 (when used in appropriate fixtures)
- Metamerism indices: MVIS ≤ 1.0 and MUV ≤ 1.5
Safety advice
- In case of lamp breakage:
Anti-glare shield
No
Base (standard designation)
G13
Beam angle correspondence
SPHERE_360
Chromaticity coordinate x
0,342
Chromaticity coordinate y
0,348
Claim of equivalent power
No
Color rendering index Ra
≥95
Color temperature
5000 K
Color-tuneable light source
No
Connected light source (CLS)
No
Construction wattage
37.90 W
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Additional info can be provided per individual request
Correlated colour temperature type
SINGLE_VALUE
Diameter
26.00 mm
Dimmable
Yes
Energy consumption
38.00 kWh/1000h
Energy efficiency class
G
Envelope
No
EPREL ID
546378
GTIN
4008321423047
Height
26.00 mm
High luminance light source
No
ILCOS
FD-36/950-E-G13-26/1200
Length
1213.60 mm
Length with base excl. base pins/connection
1200 mm
Lifespan B50
20000 h
Light color
950
Light color (designation)
Daylight
Light source cap-type (or other electric interface)
G13
Lighting technology used
OTHER_FL
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminous efficacy
57 lm/W
Luminous flux
2150 lm
Mains or non-mains
NMLS
Mercury content
5.3 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Model number
AC34153
Nominal current
0.43 A
Nominal voltage
103 V
Nominal wattage
36 W
Non-directional or directional
NDLS
Order reference
L 36W/950 COLOR
Overall length
1213.60 mm
Packaging recyclability
Mostly recyclable packaging 1)
Product recyclability
Mostly recyclable product 1)
Product weight
165.00 g
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Rated lamp survival factor at 12,000 h
0.99
Rated lamp survival factor at 16,000
0.90
Rated lamp survival factor at 2,000 h
0.99
Rated lamp survival factor at 20,000 h
0.50
Rated lamp survival factor at 4,000 h
0.99
Rated lamp survival factor at 6,000 h
0.99
Rated lamp survival factor at 8,000 h
0.99
Rated LLMF at 12,000 h
0.79
Rated LLMF at 16,000 h
0.78
Rated LLMF at 2,000 h
0.90
Rated LLMF at 20,000 h
0.76
Rated LLMF at 4,000 h
0.86
Rated LLMF at 6,000 h
0.84
Rated LLMF at 8,000 h
0.81
Service life
2500 h
Tube diameter
26 mm
Width
26.00 mm
