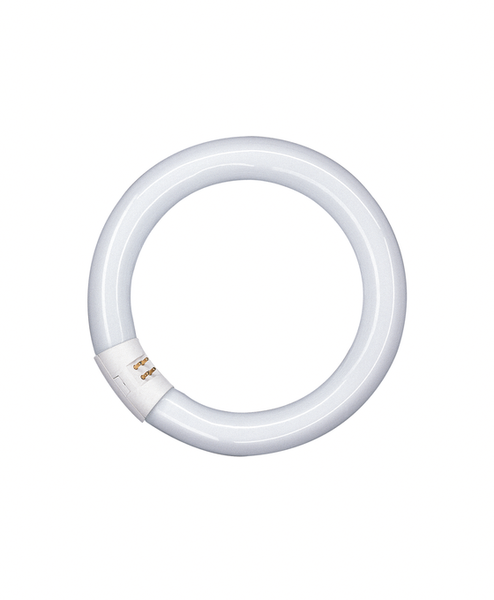

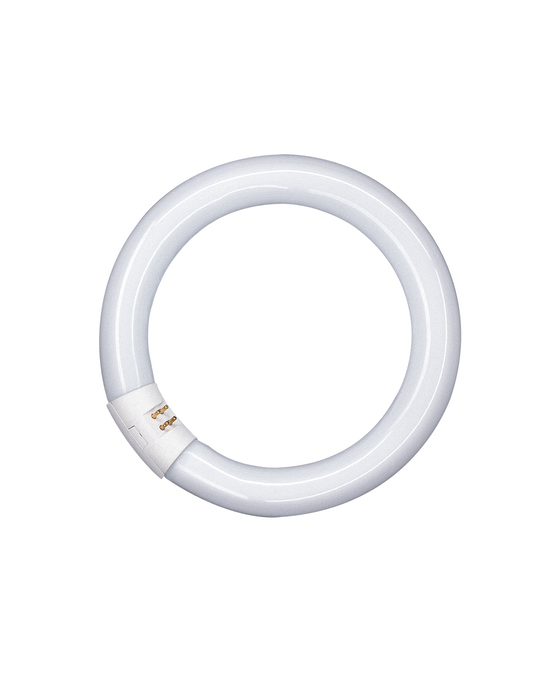

L 22 W/865 G10Q
4008321581105
Product benefits
- Excellent uniform illumination with no shadows
Areas of application
- Public buildings
- Restaurants
- Industry
- Shops
- Supermarkets and department stores
- Hotels
Product features
- Good color rendering index
- Single-ended round fluorescent lamp
- Dimmable
Equipment / Accessories
- Suitable for operation on electronic and conventional control gears
Safety advice
- In case of lamp breakage:
Anti-glare shield
No
Base (standard designation)
G10q
Beam angle correspondence
SPHERE_360
Chromaticity coordinate x
0,313
Chromaticity coordinate y
0,337
Claim of equivalent power
No
Color rendering index Ra
≥80
Color temperature
6500 K
Color-tuneable light source
No
Connected light source (CLS)
No
Construction wattage
22.90 W
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Additional info can be provided per individual request
Correlated colour temperature type
SINGLE_VALUE
Design / version
LUMILUX version
Diameter
216 mm
Dimmable
Yes
Energy consumption
23.00 kWh/1000h
Energy efficiency class
G
Envelope
No
EPREL ID
546413
GTIN
4008321581105
Height
216 mm
High luminance light source
No
ILCOS
FSC-22/865-E-G10q-29/216
Length
209.00 mm
Lifespan B50
9000 h
Light color
865
Light color (designation)
LUMILUX Cool White
Light source cap-type (or other electric interface)
G10q
Lighting technology used
OTHER_FL
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminous efficacy
50 lm/W
Luminous flux
1150 lm
Mains or non-mains
NMLS
Mercury content
4.8 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Model number
AC34188
Nominal current
0.4 A
Nominal voltage
62 V
Nominal wattage
22 W
Non-directional or directional
NDLS
Order reference
L 22W/865 C G10
Overall length
209.00 mm
Packaging recyclability
Mostly recyclable packaging 1)
Product recyclability
Mostly recyclable product 1)
Product weight
124.4 g
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Rated lamp survival factor at 2,000 h
0.99
Rated lamp survival factor at 4,000 h
0.95
Rated lamp survival factor at 6,000 h
0.83
Rated lamp survival factor at 8,000 h
0.62
Rated LLMF at 2,000 h
0.72
Rated LLMF at 4,000 h
0.67
Rated LLMF at 6,000 h
0.65
Rated LLMF at 8,000 h
0.63
Service life
6300 h 1)
Tube diameter
29 mm
Width
216 mm
