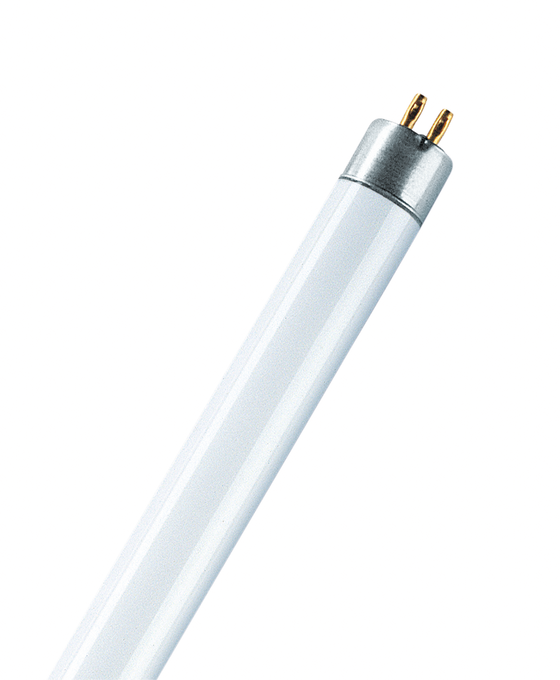

HE 21 W/830
4050300591506
Product benefits
- Up to 20 % more economical than LUMILUX® T8
Areas of application
- Public buildings
- Offices
- Shops
- Supermarkets and department stores
- Industry
- Outdoor applications only in suitable luminaires
Product features
- Very good lumen maintenance: 90 % throughout the service lifetime of the lamp
- Good color rendering index
- Dimmable
Safety advice
- In case of lamp breakage:
Anti-glare shield
No
Base (standard designation)
G5
Beam angle correspondence
SPHERE_360
Chromaticity coordinate x
0,440
Chromaticity coordinate y
0,403
Claim of equivalent power
No
Color rendering index Ra
≥80
Color temperature
3000 K
Color-tuneable light source
No
Connected light source (CLS)
No
Construction wattage
20.70 W
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Additional info can be provided per individual request
Correlated colour temperature type
SINGLE_VALUE
Diameter
16,0 mm
Dimmable
Yes
Energy consumption
21.00 kWh/1000h
Energy efficiency class
F
Envelope
No
EPREL ID
546266
GTIN
4050300591506
Height
16,0 mm
High luminance light source
No
ILCOS
FDH-21/830-L/P/-G5-16/849
Length
863.20 mm
Length with base excl. base pins/connection
849,00 mm
Lifespan B50
24000 h
Light color
830
Light color (designation)
LUMILUX Warm White
Light source cap-type (or other electric interface)
G5
Lighting technology used
LFL_T5_HE
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminous efficacy
97 lm/W
Luminous flux
2000 lm
Luminous flux at 35 °C
2000 lm
Mains or non-mains
NMLS
Mercury content
1.5 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Model number
AC34030
Nominal current
0.17 A
Nominal voltage
126 V
Nominal wattage
21 W
Non-directional or directional
NDLS
Order reference
HE 21W/830
Overall length
863.20 mm
Packaging recyclability
Mostly recyclable packaging 1)
Product recyclability
Mostly recyclable product 1)
Product remark
Suitable for ECG operation on
Product weight
70.92 g
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Rated lamp survival factor at 12,000 h
0.99
Rated lamp survival factor at 16,000
0.97
Rated lamp survival factor at 2,000 h
0.99
Rated lamp survival factor at 20,000 h
0.85
Rated lamp survival factor at 4,000 h
0.99
Rated lamp survival factor at 6,000 h
0.99
Rated lamp survival factor at 8,000 h
0.99
Rated LLMF at 12,000 h
0.90
Rated LLMF at 16,000 h
0.90
Rated LLMF at 2,000 h
0.95
Rated LLMF at 20,000 h
0.89
Rated LLMF at 4,000 h
0.92
Rated LLMF at 6,000 h
0.91
Rated LLMF at 8,000 h
0.90
Service life
19000 h 1)
Tube diameter
16 mm
Width
16,0 mm
