FC 22 W/6500 K
4050300528441
Product benefits
- Excellent uniform illumination with no shadows
Areas of application
- Public buildings
- Offices
- Restaurants
- Industry
- Shops
- Supermarkets and department stores
- Hotels
Product features
- Good color rendering index

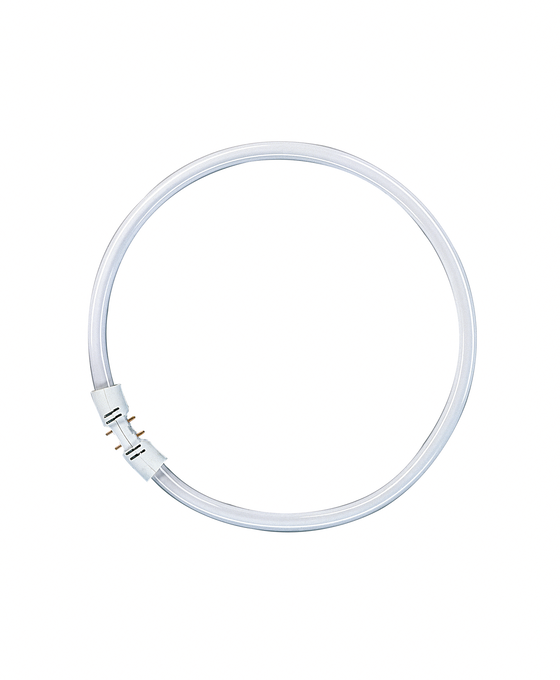

- Single-ended round fluorescent lamp
- Dimmable
Equipment / Accessories
- Exclusively for operation on electronic control gears
Safety advice
- In case of lamp breakage:
Anti-glare shield
No
Base (standard designation)
2GX13
Beam angle correspondence
SPHERE_360
Chromaticity coordinate x
0,313
Chromaticity coordinate y
0,337
Claim of equivalent power
No
Color rendering index Ra
≥80
Color temperature
6500 K
Color-tuneable light source
No
Connected light source (CLS)
No
Construction wattage
23.80 W
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Additional info can be provided per individual request
Correlated colour temperature type
SINGLE_VALUE
Diameter
16,0 mm
Dimmable
Yes
Energy consumption
24.00 kWh/1000h
Energy efficiency class
G
Envelope
No
EPREL ID
546402
GTIN
4050300528441
Height
16,0 mm
High luminance light source
No
ILCOS
FSCH-22/865-L/P-2Gx13-16/225
Length
240.00 mm
Lifespan B50
12000 h
Light color
865
Light color (designation)
LUMILUX Cool Daylight
Light source cap-type (or other electric interface)
2GX13
Lighting technology used
OTHER_FL
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminous efficacy
71 lm/W
Luminous flux
1700 lm
Mains or non-mains
NMLS
Mercury content
3.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Model number
AC34177
Nominal current
0.3 A
Nominal voltage
75 V
Nominal wattage
22 W
Non-directional or directional
NDLS
Order reference
FC 22W/865
Overall length
240.00 mm
Packaging recyclability
Mostly recyclable packaging 1)
Product recyclability
Mostly recyclable product 1)
Product remark
Suitable for ECG operation only
Product weight
81.00 g
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Rated lamp survival factor at 12,000 h
0.50
Rated lamp survival factor at 2,000 h
0.99
Rated lamp survival factor at 4,000 h
0.99
Rated lamp survival factor at 6,000 h
0.98
Rated lamp survival factor at 8,000 h
0.92
Rated LLMF at 12,000 h
0.75
Rated LLMF at 2,000 h
0.85
Rated LLMF at 4,000 h
0.83
Rated LLMF at 6,000 h
0.80
Rated LLMF at 8,000 h
0.80
Service life
8000 h 1)
Tube diameter
16 mm
Width
16,0 mm
