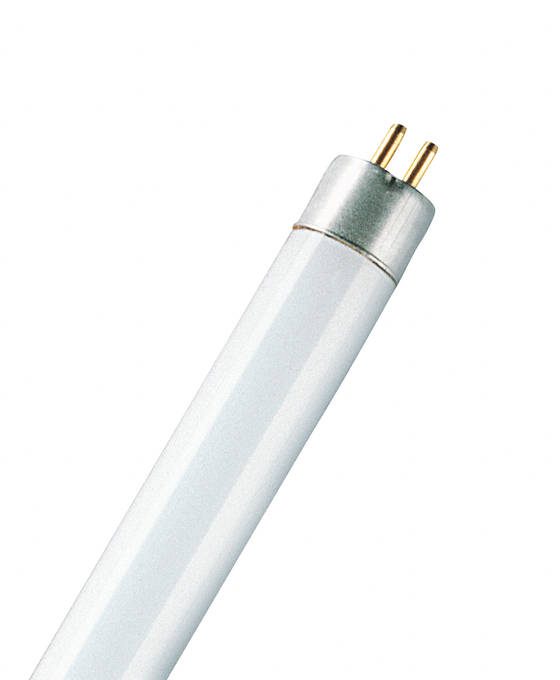

Emergency Lighting 8 W/640
4050300606644
Product benefits
- Optimized for emergency power operation
Areas of application
- Public buildings
- Industry
- Shops
- Supermarkets and department stores
Product features
- Suitable for emergency power operation
Safety advice
- In case of lamp breakage:
Anti-glare shield
No
Base (standard designation)
G5
Beam angle correspondence
SPHERE_360
Chromaticity coordinate x
0,380
Chromaticity coordinate y
0,394
Claim of equivalent power
No
Color rendering index Ra
≥60
Color temperature
4000 K
Color-tuneable light source
No
Connected light source (CLS)
No
Construction wattage
7.50 W
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Correlated colour temperature type
SINGLE_VALUE
Design / version
Emergency Lighting (Basic) T5 short tubular, G5 base
Diameter
16.00 mm
Dimmable
Yes
Energy consumption
8.00 kWh/1000h
Energy efficiency class
G
Envelope
No
EPREL ID
546310
GTIN
4050300606644
Height
16.00 mm
High luminance light source
No
ILCOS
FD-8/640-E-G5-16/288
Length
302.50 mm
Length with base excl. base pins/connection
288,00 mm
Lifespan B50
10000 h
Light color
640
Light color (designation)
Cold White
Light source cap-type (or other electric interface)
G5
Lighting technology used
OTHER_FL
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Luminous efficacy
51 lm/W
Luminous flux
385 lm
Mains or non-mains
NMLS
Mercury content
2.9 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Model number
AC34077
Nominal current
0.15 A
Nominal voltage
56 V
Nominal wattage
8 W
Non-directional or directional
NDLS
Order reference
L 8W/640 EL
Overall length
302.50 mm
Packaging recyclability
Mostly recyclable packaging 1)
Product recyclability
Mostly recyclable product 1)
Product remark
BASIC T5 SHORT for emergency lighting
Product weight
25.71 g
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Rated lamp survival factor at 2,000 h
0.99
Rated lamp survival factor at 4,000 h
0.99
Rated lamp survival factor at 6,000 h
0.95
Rated lamp survival factor at 8,000 h
0.81
Rated LLMF at 2,000 h
0.75
Rated LLMF at 4,000 h
0.69
Rated LLMF at 6,000 h
0.66
Rated LLMF at 8,000 h
0.64
Service life
4500 h
Tube diameter
16 mm
Width
16.00 mm
