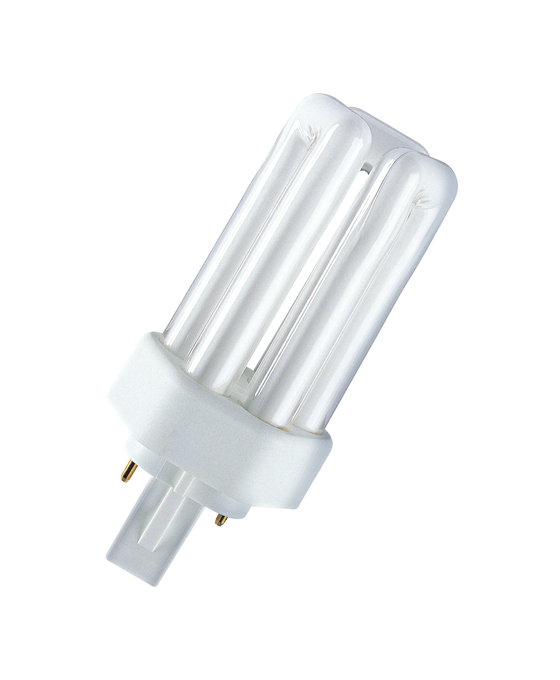

DULUX T PLUS 18 W/827
4050300333502
Product benefits
- Improved maintenance
Areas of application
- Offices, public buildings
- Shops
- Supermarkets and department stores
- Hotels, restaurants
- Industrial lighting
Product features
- Good color rendering index
- Short and compact pin-base lamp with triple-turn tubes
- Single-ended two-pin plug-in GX24d base
Equipment / Accessories
- Suitable for operation on conventional control gear
- Suitable for 0.22 A control gear only (DULUX
T 18 W PLUS)
Safety advice
- In case of lamp breakage:
Ambient temperature range
-5…+40 °C
Anti-glare shield
No
Base (standard designation)
GX24d-2
Beam angle correspondence
SPHERE_360
Chromaticity coordinate x
0,463
Chromaticity coordinate y
0,420
Claim of equivalent power
No
Color rendering index Ra
≥80
Color temperature
2700 K
Color-tuneable light source
No
Connected light source (CLS)
No
Construction wattage
19.00 W
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Additional info can be provided per individual request
Correlated colour temperature type
SINGLE_VALUE
Diameter
12.00 mm
Dimmable
No
Energy consumption
19.00 kWh/1000h
Energy efficiency class
G
Envelope
No
EPREL ID
546455
GTIN
4050300333502
Height
12.00 mm
High luminance light source
No
ILCOS
FSM-18/827-I-GX24d-2
Length
124.00 mm
Length with base excl. base pins/connection
101,00 mm
Lifespan B50
10000 h
Light color
827
Light color (designation)
LUMILUX INTERNA
Light source cap-type (or other electric interface)
GX24d-2
Lighting technology used
CFLNI
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminous efficacy
63 lm/W
Luminous flux
1200 lm
Mains or non-mains
NMLS
Mercury content
2.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Model number
AC34230
Nominal current
0.23 A
Nominal voltage
100 V
Nominal wattage
18 W
Non-directional or directional
NDLS
Order reference
DULUX T 18W/827
Overall length
124.00 mm
Packaging recyclability
Mostly recyclable packaging 1)
Product recyclability
Mostly recyclable product 1)
Product remark
Suitable only for operation with 0.22 A control gear
Product weight
56.5 g
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Rated lamp survival factor at 2,000 h
0.99
Rated lamp survival factor at 4,000 h
0.99
Rated lamp survival factor at 6,000 h
0.95
Rated lamp survival factor at 8,000 h
0.81
Rated LLMF at 2,000 h
0.85
Rated LLMF at 4,000 h
0.78
Rated LLMF at 6,000 h
0.76
Rated LLMF at 8,000 h
0.75
Service life
6500 h
Tube diameter
12 mm
Width
12.00 mm
