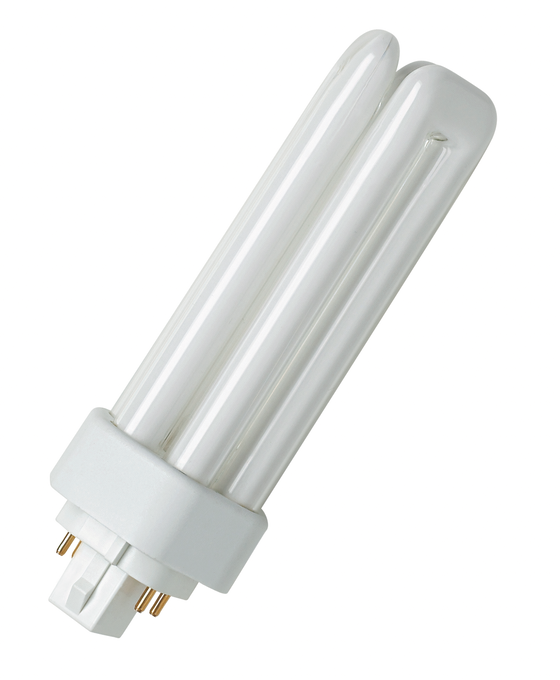

DULUX T/E CONSTANT 26 W/830
4050300425467
Product benefits
- Excellent luminous flux at high and low ambient temperatures
- Improved maintenance
Areas of application
- Street and city lighting
- Industrial lighting
- Hot luminaires
- Locations with special thermal requirements
- Outdoor applications only in suitable luminaires
Product features
- Good color rendering index
- Luminous flux > 90 % in a temperature range from +10…+70 °C
- Dimmable (3…100 %)
- Short and compact pin-base lamp with triple-turn tubes
- Single-ended four-pin plug-in GX24q base with shortened base casing
Equipment / Accessories
- Suitable for operation on electronic control gear
Safety advice
- In case of lamp breakage:
Ambient temperature range
-5…+40 °C
Anti-glare shield
No
Base (standard designation)
GX24q-3
Beam angle correspondence
SPHERE_360
Chromaticity coordinate x
0,440
Chromaticity coordinate y
0,403
Claim of equivalent power
No
Color rendering index Ra
≥80
Color temperature
3000 K
Color-tuneable light source
No
Connected light source (CLS)
No
Construction wattage
27.10 W
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Correlated colour temperature type
SINGLE_VALUE
Diameter
12.00 mm
Dimmable
Yes
Energy consumption
28.00 kWh/1000h
Energy efficiency class
G
Envelope
No
EPREL ID
546470
GTIN
4050300425467
Height
12.00 mm
High luminance light source
No
ILCOS
FSMH//L//H-26/830-/P/-GX24q-3
Length
127.50 mm
Length with base excl. base pins/connection
112.00 mm
Lifespan B50
20000 h
Light color
830
Light color (designation)
LUMILUX Warm White
Light source cap-type (or other electric interface)
GX24q-3
Lighting technology used
CFLNI
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Luminous efficacy
65 lm/W
Luminous flux
1750 lm
Mains or non-mains
NMLS
Mercury content
3.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Model number
AC34245
Nominal current
0.33 A
Nominal voltage
105 V
Nominal wattage
26 W
Non-directional or directional
NDLS
Order reference
DULUX T/E 26W/8
Overall length
127.50 mm
Packaging recyclability
Mostly recyclable packaging 1)
Product recyclability
Mostly recyclable product 1)
Product remark
For ECG operation only
Product weight
61.5 g
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Rated lamp survival factor at 12,000 h
0.95
Rated lamp survival factor at 16,000
0.81
Rated lamp survival factor at 2,000 h
0.99
Rated lamp survival factor at 20,000 h
0.50
Rated lamp survival factor at 4,000 h
0.99
Rated lamp survival factor at 6,000 h
0.99
Rated lamp survival factor at 8,000 h
0.99
Rated LLMF at 12,000 h
0.79
Rated LLMF at 16,000 h
0.78
Rated LLMF at 2,000 h
0.90
Rated LLMF at 20,000 h
0.90
Rated LLMF at 4,000 h
0.84
Rated LLMF at 6,000 h
0.83
Rated LLMF at 8,000 h
0.81
Service life
13000 h
Tube diameter
12 mm
Width
12.00 mm
