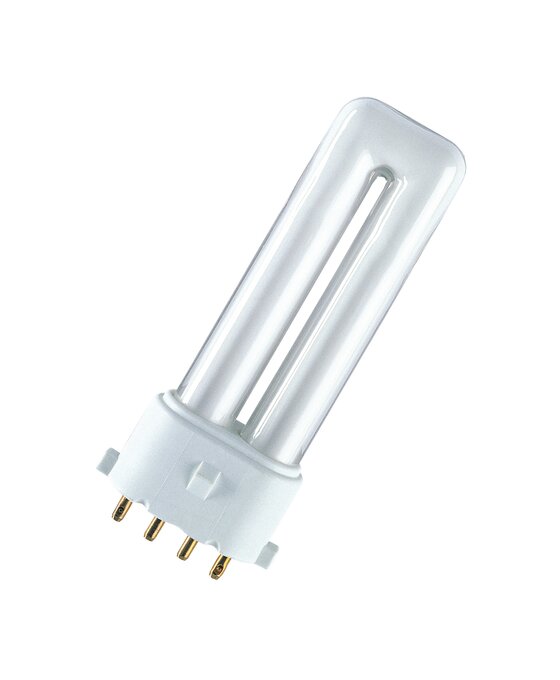

DULUX S/E 9 W/840
4050300020174
Product benefits
- Long service life
Areas of application
- Offices, public buildings
- Shops
- Supermarkets and department stores
- Hotels, restaurants
Product features
- Good color rendering index
- Dimmable (3…100 %)
- Short and compact pin-base lamps with single-turn tubes
- Single-ended four-pin plug-in 2G7 base
Equipment / Accessories
- Suitable for operation on electronic control gear
Safety advice
- In case of lamp breakage:
Ambient temperature range
-5…+40 °C
Anti-glare shield
No
Base (standard designation)
2G7
Beam angle correspondence
SPHERE_360
Chromaticity coordinate x
0,380
Chromaticity coordinate y
0,380
Claim of equivalent power
No
Color rendering index Ra
≥80
Color temperature
4000 K
Color-tuneable light source
No
Connected light source (CLS)
No
Construction wattage
8.70 W
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Additional info can be provided per individual request
Correlated colour temperature type
SINGLE_VALUE
Diameter
12.00 mm
Dimmable
Yes
Energy consumption
9.00 kWh/1000h
Energy efficiency class
G
Envelope
No
EPREL ID
546497
GTIN
4050300020174
Height
12.00 mm
High luminance light source
No
ILCOS
FSDH-9/840-/P/-2G7
Length
151.80 mm
Length with base excl. base pins/connection
145 mm
Lifespan B50
12000 h
Light color
840
Light color (designation)
LUMILUX Cool White
Light source cap-type (or other electric interface)
2G7
Lighting technology used
CFLNI
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminous efficacy
69 lm/W
Luminous flux
600 lm
Mains or non-mains
NMLS
Mercury content
1.6 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Model number
AC34272
Nominal current
0.17 A
Nominal voltage
60 V
Nominal wattage
9 W
Non-directional or directional
NDLS
Order reference
DULUX S/E 9W/84
Overall length
151.80 mm
Packaging recyclability
Mostly recyclable packaging 1)
Product recyclability
Mostly recyclable product 1)
Product remark
For ECG operation only
Product weight
21.9 g
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Service life
13000 h
Tube diameter
12 mm
Width
12.00 mm
