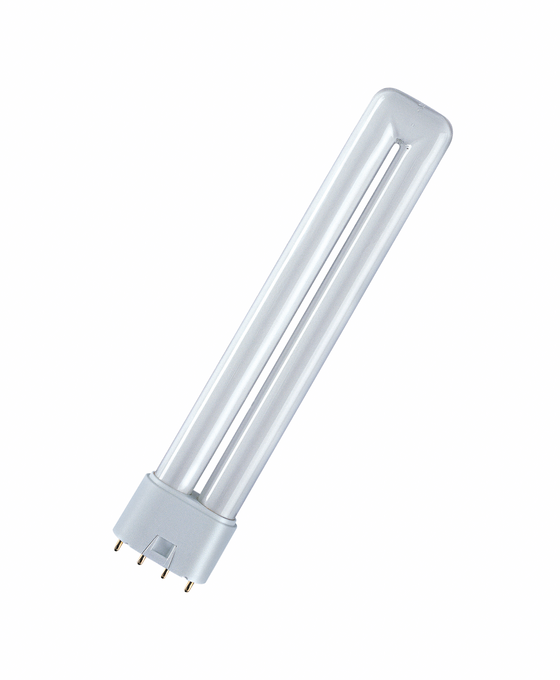

DULUX L 36 W/954 2G11
4050300018461
Areas of application
- Offices, public buildings
- Shops
- Supermarkets and department stores
- Hotels, restaurants
- Industry
Product features
- Short and compact pin-base lamp with double-turn tubes
- Single-ended four-pin plug-in 2G11 base
- Very good color rendering index
Equipment / Accessories
- Suitable for operation on electronic and conventional control gear
Safety advice
- In case of lamp breakage:
Ambient temperature range
-5…+40 °C
Anti-glare shield
No
Base (standard designation)
2G11
Beam angle correspondence
SPHERE_360
Chromaticity coordinate x
0,355
Chromaticity coordinate y
0,350
Claim of equivalent power
No
Color rendering index Ra
≥90
Color temperature
5400 K
Color-tuneable light source
No
Connected light source (CLS)
No
Construction wattage
36.00 W
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Additional info can be provided per individual request
Correlated colour temperature type
SINGLE_VALUE
Diameter
17.20 mm
Dimmable
Yes
Energy consumption
38.00 kWh/1000h
Energy efficiency class
G
Envelope
No
EPREL ID
546511
GTIN
4050300018461
Height
17.20 mm
High luminance light source
No
ILCOS
FSD-36/954-E-2G11-43,9/411
Length
415.00 mm
Length with base excl. base pins/connection
409 mm
Lifespan B50
20000 h
Light color
954
Light color (designation)
LUMILUX DE LUXE Daylight
Light source cap-type (or other electric interface)
2G11
Lighting technology used
CFLNI
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminous efficacy
61 lm/W
Luminous flux
2200 lm
Mains or non-mains
NMLS
Mercury content
3.5 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Model number
AC34286
Nominal current
0.43 A
Nominal voltage
106 V
Nominal wattage
36 W
Non-directional or directional
NDLS
Order reference
DULUX L 36W/954
Overall length
415.00 mm
Packaging recyclability
Mostly recyclable packaging 1)
Product recyclability
Mostly recyclable product 1)
Product remark
For ECG and CCG operation
Product weight
94.29 g
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Rated lamp survival factor at 12,000 h
0.95
Rated lamp survival factor at 16,000
0.81
Rated lamp survival factor at 2,000 h
0.99
Rated lamp survival factor at 20,000 h
0.50
Rated lamp survival factor at 4,000 h
0.99
Rated lamp survival factor at 6,000 h
0.99
Rated lamp survival factor at 8,000 h
0.99
Rated LLMF at 12,000 h
0.71
Rated LLMF at 16,000 h
0.70
Rated LLMF at 2,000 h
0.81
Rated LLMF at 20,000 h
0.68
Rated LLMF at 4,000 h
0.77
Rated LLMF at 6,000 h
0.75
Rated LLMF at 8,000 h
0.73
Service life
13000 h
Tube diameter
17,5 mm
Width
17.20 mm
