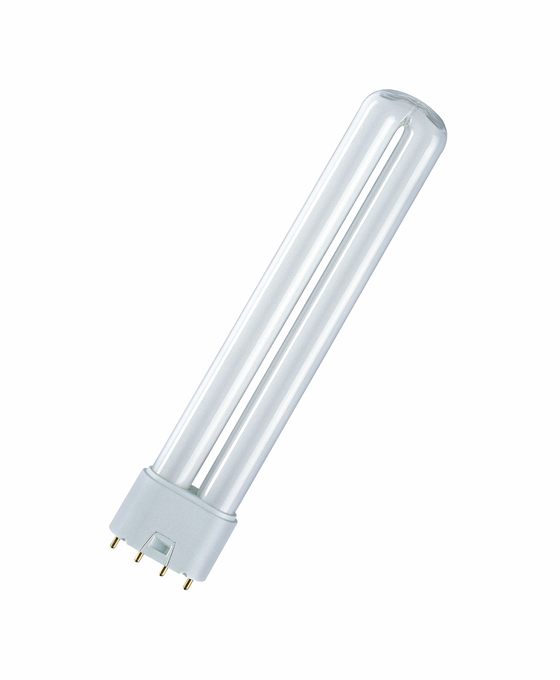

DULUX L 24 W/830 2G11
Скидка 9%
4050300010762
Product benefits
- Less than half as long as tubular fluorescent lamps
Areas of application
- Offices, public buildings
- Shops
- Supermarkets and department stores
- Hotels, restaurants
- Industry
Product features
- Short and compact pin-base lamp with double-turn tubes
- Single-ended four-pin plug-in 2G11 base
- Dimmable (1…100 % with QUICKTRONIC® QTi DALI/DIM)
- Good color rendering index
Equipment / Accessories
- Suitable for standard control gears and starters
- Suitable for operation on electronic and conventional control gear
Safety advice
- In case of lamp breakage:
References / Links
- For more information on the system guarantee and the terms and conditions of the guarantee visit
Ambient temperature range
-5…+40 °C
Anti-glare shield
No
Base (standard designation)
2G11
Beam angle correspondence
SPHERE_360
Chromaticity coordinate x
0,440
Chromaticity coordinate y
0,403
Claim of equivalent power
No
Color rendering index Ra
≥80
Color temperature
3000 K
Color-tuneable light source
No
Connected light source (CLS)
No
Construction wattage
24.00 W
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Additional info can be provided per individual request
Correlated colour temperature type
SINGLE_VALUE
Diameter
17,5 mm
Dimmable
Yes
Energy consumption
26.00 kWh/1000h
Energy efficiency class
G
Envelope
No
EPREL ID
546504
GTIN
4050300010762
Height
17,5 mm
High luminance light source
No
ILCOS
FSD-24/830-E-2G11-43,9/317
Length
321.00 mm
Length with base excl. base pins/connection
315 mm
Lifespan B50
20000 h
Light color
830
Light color (designation)
LUMILUX Warm White
Light source cap-type (or other electric interface)
2G11
Lighting technology used
CFLNI
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminous efficacy
68 lm/W
Luminous flux
1620 lm
Mains or non-mains
NMLS
Mercury content
2.5 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Model number
AC34279
Nominal current
0.34 A
Nominal voltage
87 V
Nominal wattage
24 W
Non-directional or directional
NDLS
Order reference
DULUX L 24W/830
Overall length
321.00 mm
Packaging recyclability
Mostly recyclable packaging 1)
Product recyclability
Mostly recyclable product 1)
Product remark
For ECG and CCG operation
Product weight
73.66 g
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Rated lamp survival factor at 12,000 h
0.95
Rated lamp survival factor at 16,000
0.81
Rated lamp survival factor at 2,000 h
0.99
Rated lamp survival factor at 20,000 h
0.50
Rated lamp survival factor at 4,000 h
0.99
Rated lamp survival factor at 6,000 h
0.99
Rated lamp survival factor at 8,000 h
0.99
Rated LLMF at 12,000 h
0.84
Rated LLMF at 16,000 h
0.81
Rated LLMF at 2,000 h
0.94
Rated LLMF at 20,000 h
0.80
Rated LLMF at 4,000 h
0.90
Rated LLMF at 6,000 h
0.88
Rated LLMF at 8,000 h
0.85
Service life
13000 h 1)
Tube diameter
17,5 mm
Width
17,5 mm
