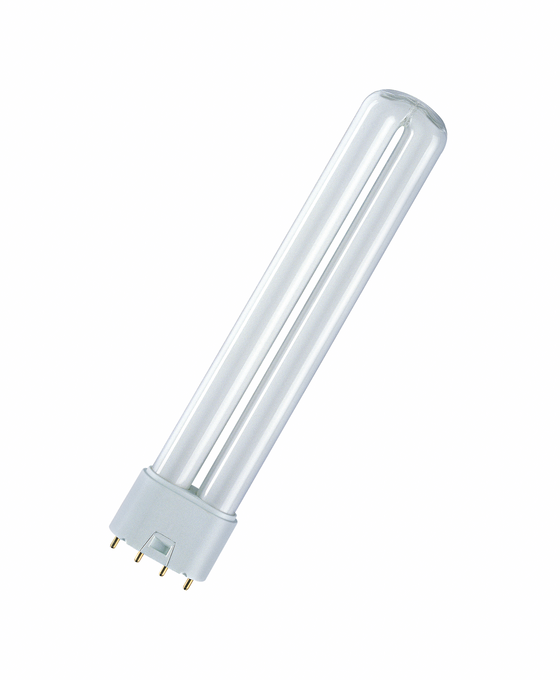

DULUX L 18 W/6500 K 2G11
4052899306042
Product benefits
- Less than half as long as tubular fluorescent lamps
Areas of application
- Offices, public buildings
- Shops
- Supermarkets and department stores
- Hotels, restaurants
- Industry
Product features
- Short and compact pin-base lamp with double-turn tubes
- Single-ended four-pin plug-in 2G11 base
- Dimmable (1…100 % with QUICKTRONIC® QTi DALI/DIM)
- Good color rendering index
Equipment / Accessories
- Suitable for standard control gears and starters
- Suitable for operation on electronic and conventional control gear
Safety advice
- In case of lamp breakage:
References / Links
- For more information on the system guarantee and the terms and conditions of the guarantee visit
Base (standard designation)
2G11
Color rendering index Ra
80…89
Color temperature
6500 K
Construction wattage
18.00 W
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Additional info can be provided per individual request
Diameter
16.00 mm
Energy consumption
19.80 kWh/1000h
Energy efficiency class
G
GTIN
4052899306042
Height
16.00 mm
Length
217.00 mm
Light color
865
Light source cap-type (or other electric interface)
2G11
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminous flux
1140 lm
Maximum diameter
17 mm
Mercury content
2.3 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Nominal wattage
18 W
Operation mode LLMF/LSF
HF
Order reference
DULUX L 18W/865
Overall length
214.50 mm
Packaging recyclability
Mostly recyclable packaging 1)
Product recyclability
Mostly recyclable product 1)
Product remark
For ECG and CCG operation
Product weight
55.00 g
Rated ambient temp.w.max.luminous
25.0 °C
Rated lamp efficacy (standard co.)
63 lm/W
Rated lamp survival factor at 12,000 h
0.95
Rated lamp survival factor at 16,000
0.81
Rated lamp survival factor at 2,000 h
0.99
Rated lamp survival factor at 20,000 h
0.50
Rated lamp survival factor at 4,000 h
0.99
Rated lamp survival factor at 6,000 h
0.99
Rated lamp survival factor at 8,000 h
0.99
Rated LLMF at 12,000 h
0.76
Rated LLMF at 16,000 h
0.73
Rated LLMF at 2,000 h
0.84
Rated LLMF at 20,000 h
0.72
Rated LLMF at 4,000 h
0.81
Rated LLMF at 6,000 h
0.79
Rated LLMF at 8,000 h
0.77
Service life
13000 h 1)
Suitable for indoor
Yes
Tube diameter
17,5 mm
Width
16.00 mm
