DULUX F 36 W/840 2G10
4050300299037
Product benefits
- Extremely low profile
Areas of application
- Offices, public buildings
- Shops
- Supermarkets and department stores
- Hotels, restaurants
- Industry
Product features

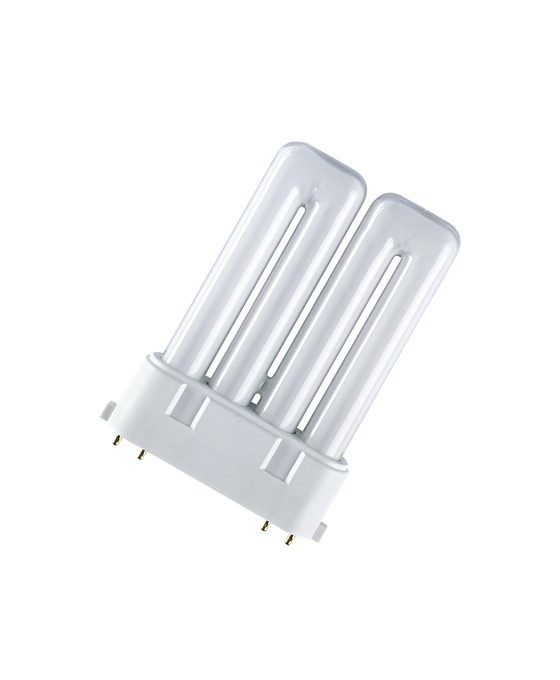

- Short and compact pin-base lamp with double-turn tubes
- Single-ended four-pin plug-in 2G10 base
- Good color rendering index
Equipment / Accessories
- Suitable for operation on electronic and conventional control gear
Safety advice
- In case of lamp breakage:
Ambient temperature range
-5…+40 °C
Anti-glare shield
No
Base (standard designation)
2G10
Beam angle correspondence
SPHERE_360
Chromaticity coordinate x
0,380
Chromaticity coordinate y
0,380
Claim of equivalent power
No
Color rendering index Ra
≥80
Color temperature
4000 K
Color-tuneable light source
No
Connected light source (CLS)
No
Construction wattage
36.00 W
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Correlated colour temperature type
SINGLE_VALUE
Diameter
16.20 mm
Dimmable
Yes
Energy consumption
38.00 kWh/1000h
Energy efficiency class
G
Envelope
No
EPREL ID
546531
GTIN
4050300299037
Height
16.20 mm
High luminance light source
No
ILCOS
FSD-36/840-E-2G10-90/217
Length
221.00 mm
Length with base excl. base pins/connection
215,0 mm
Lifespan B50
13000 h
Light color
840
Light color (designation)
LUMILUX Cool White
Light source cap-type (or other electric interface)
2G10
Lighting technology used
CFLNI
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Additional info can be provided per individual request
Luminous efficacy
78 lm/W
Luminous flux
2800 lm
Mains or non-mains
NMLS
Mercury content
2.5 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Model number
AC34305
Nominal current
0.44 A
Nominal voltage
106 V
Nominal wattage
36 W
Non-directional or directional
NDLS
Order reference
DULUX F 36W/840
Overall length
221.00 mm
Packaging recyclability
Mostly recyclable packaging 1)
Product recyclability
Mostly recyclable product 1)
Product weight
99.87 g
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Rated lamp survival factor at 12,000 h
0.64
Rated lamp survival factor at 2,000 h
0.99
Rated lamp survival factor at 4,000 h
0.99
Rated lamp survival factor at 6,000 h
0.99
Rated lamp survival factor at 8,000 h
0.95
Rated LLMF at 12,000 h
0.77
Rated LLMF at 2,000 h
0.90
Rated LLMF at 4,000 h
0.86
Rated LLMF at 6,000 h
0.83
Rated LLMF at 8,000 h
0.81
Service life
9000 h 1)
Tube diameter
17,5 mm
Width
16.20 mm
