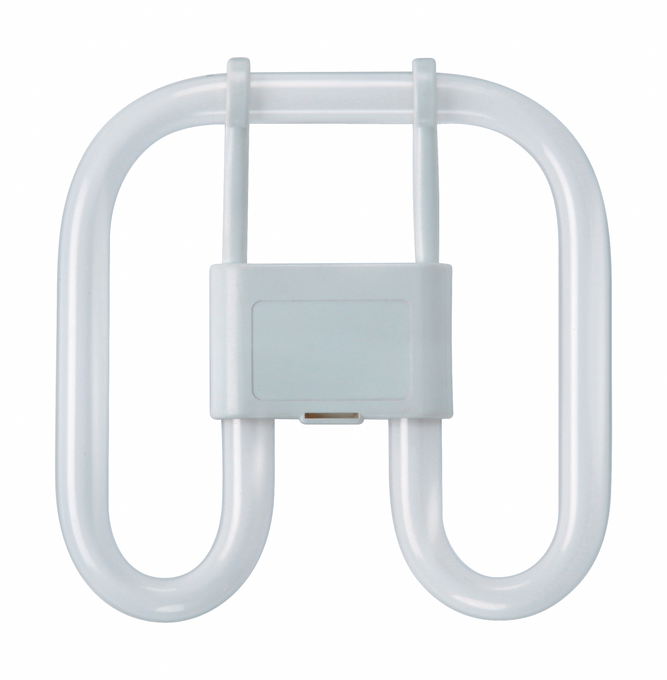

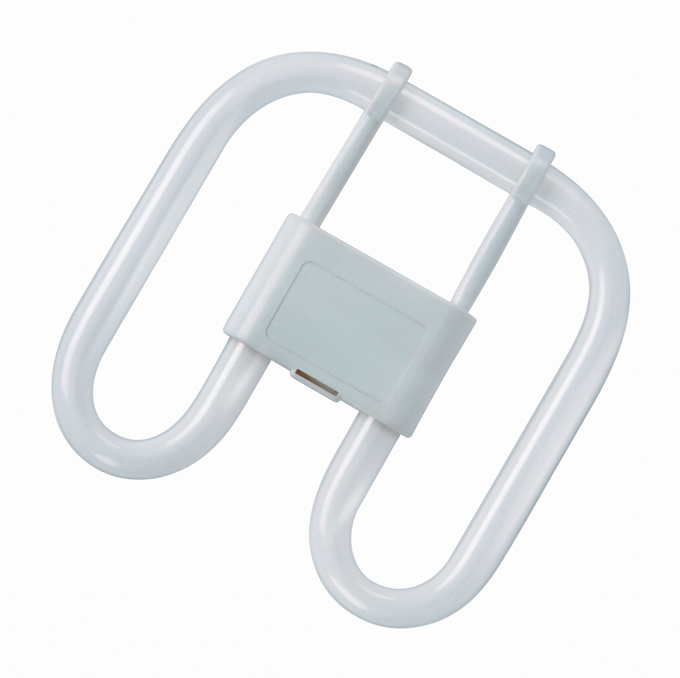

CFL SQUARE 28 W/827 GR8
4050300816913
Product benefits
- Square shape provides uniform distribution of light
- No shadows at either end and no dark patches
- Extremely low profile
Areas of application
- Low-profile wall and ceiling luminaires
- Public buildings, reception areas, offices, corridors, etc.
- Shops
- Supermarkets and department stores
- Hotels, restaurants
- Industry
Product features
- Single-ended two-pin plug-in GR8 base
- Short and compact pin-base lamp with double-turn tubes
- Good color rendering index
Equipment / Accessories
- Suitable for operation on conventional control gear
Safety advice
- In case of lamp breakage:
Ambient temperature range
-5…+40 °C
Anti-glare shield
No
Base (standard designation)
GR8
Beam angle correspondence
SPHERE_360
Chromaticity coordinate x
0,463
Chromaticity coordinate y
0,420
Claim of equivalent power
No
Color rendering index Ra
≥80
Color temperature
2700 K
Color-tuneable light source
No
Connected light source (CLS)
No
Construction wattage
29.10 W
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Correlated colour temperature type
SINGLE_VALUE
Design / version
OSRAM CFL SQUARE® 2-Pin for CCG
Diameter
18.20 mm
Dimmable
No
Energy consumption
30.00 kWh/1000h
Energy efficiency class
G
Envelope
No
EPREL ID
546536
GTIN
4050300816913
Height
33.0 mm
High luminance light source
No
ILCOS
FSS-28/827-I-GR8
Length
204.00 mm 1)
Lifespan B50
10000 h
Light color
827
Light color (designation)
LUMILUX INTERNA
Light source cap-type (or other electric interface)
GR8
Lighting technology used
CFLNI
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Luminous efficacy
65 lm/W
Luminous flux
1900 lm
Mains or non-mains
NMLS
Mercury content
3.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Model number
AC34310
Nominal current
0.32 A
Nominal voltage
108 V
Nominal wattage
28 W
Non-directional or directional
NDLS
Order reference
CFL SQUARE 28W/
Overall length
204.00 mm
Packaging recyclability
Mostly recyclable packaging 1)
Product recyclability
Mostly recyclable product 1)
Product weight
128.00 g
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Rated lamp survival factor at 2,000 h
0.99
Rated lamp survival factor at 4,000 h
0.94
Rated lamp survival factor at 6,000 h
0.84
Rated lamp survival factor at 8,000 h
0.68
Rated LLMF at 2,000 h
0.85
Rated LLMF at 4,000 h
0.78
Rated LLMF at 6,000 h
0.76
Rated LLMF at 8,000 h
0.75
Service life
6000 h
Width
207 mm
