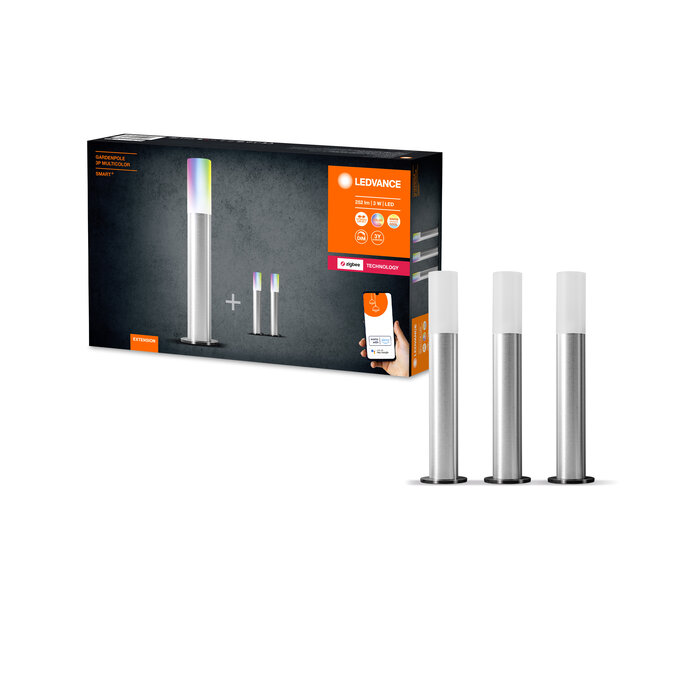

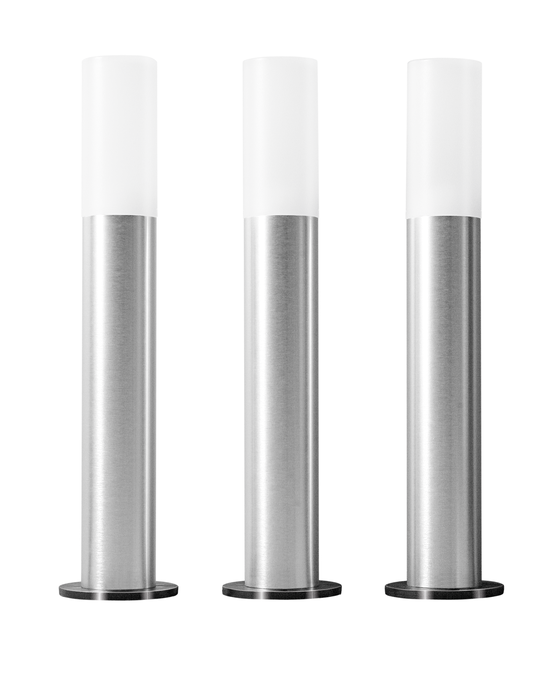

SMART+ ZB GardenPole 3P RGB + W Extension
4099854043932
Product benefits
- Easy to install and use
- Colorful garden lighting with smart and intelligent control options
- Uses multi color and cold or warm white light for most flexible lighting scenes
- Combines the functionality of general lighting and mood lighting
Areas of application
- Gardens, balconies and other outdoor areas
Product features
- Garlands of lights with integrated wireless smart lighting function
- RGB color control, approx. 16 million color options adjustable
- Adjustable color temperature via Tunable White: 2,000…6,500 K
- Dimmable
- Protection class (pole): IP65
- Protection class (power supply): IP44
- Network protocol: ZigBee
- Lifetime: up to 20,000 h
- Controllable via compatible smart home system (gateway and app) or SMART+ Switch
- For full functionality, connection to a compatible smart home System (gateway and app) required
Equipment / Accessories
- Power supply included only in basic set
- Control via app requires LIGHTIFY system (app and gateway) or other compatible Smart home system
Safety advice
- To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
Ambient temperature range
-20…+40 °C
Application environment
Outdoor
Beam angle
160 °
Body material
Aluminum
Color rendering index Ra
> 80
Color temperature
2000 … 6500 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Diameter
60.00 mm
Dimmable
Yes
Flickering metric (Pst LM)
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854043932
Height
367.00 mm
Housing color
Gray
Length
6000.00 mm
Lifespan L70/B50 at 25 °C
20000 h
Light color (designation)
Tunable Whi
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Luminous efficacy
84 lm/W
Luminous flux
420 lm
Mains frequency
50…60 Hz
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Ground
Mounting type
Ground spike
Nominal current
150.000 mA
Nominal voltage
220…240 V
Nominal wattage
3.00 W
Number of switching cycles
10000
Operating mode
External LED driver
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
> 0.5
Product color
Grey
Product recyclability
Mostly recyclable product 1)
Product remark
Reset settings to default by switching the product on for five seconds and off for five seconds and repeating this five times.
Product weight
540.00 g
Protection class
II
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
6 sdcm
Standards
CE
Stroboscope effect metric (SVM)
Total luminous flux of contained light sources
252 lm
Type of connection
Plug type C (EU)
Type of protection
IP65
Width
60.00 mm
With light source
Yes
