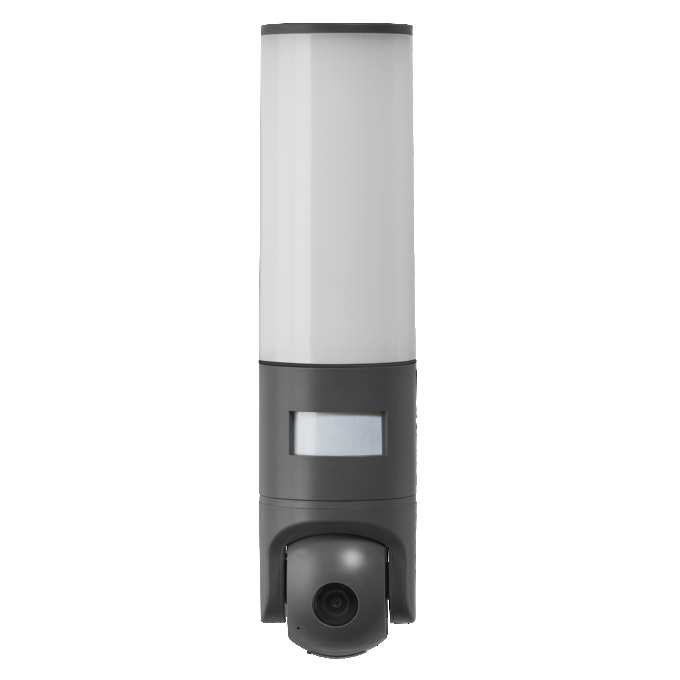

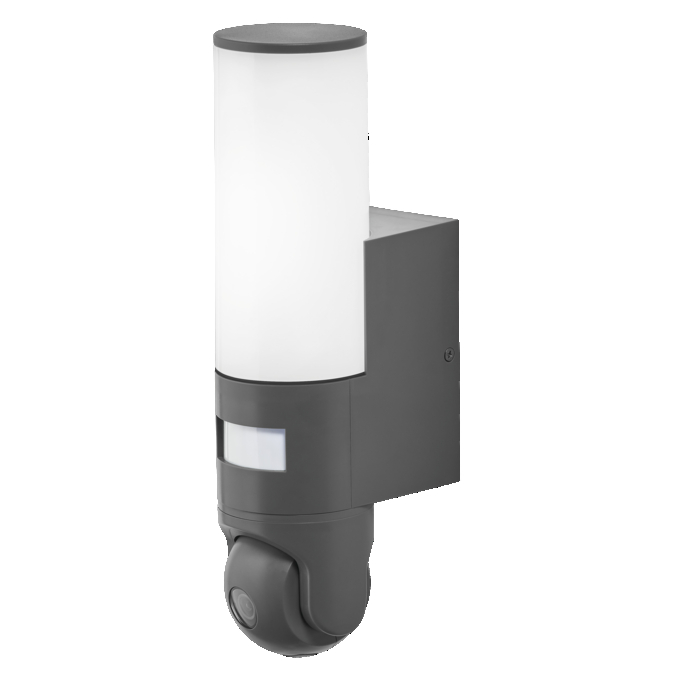

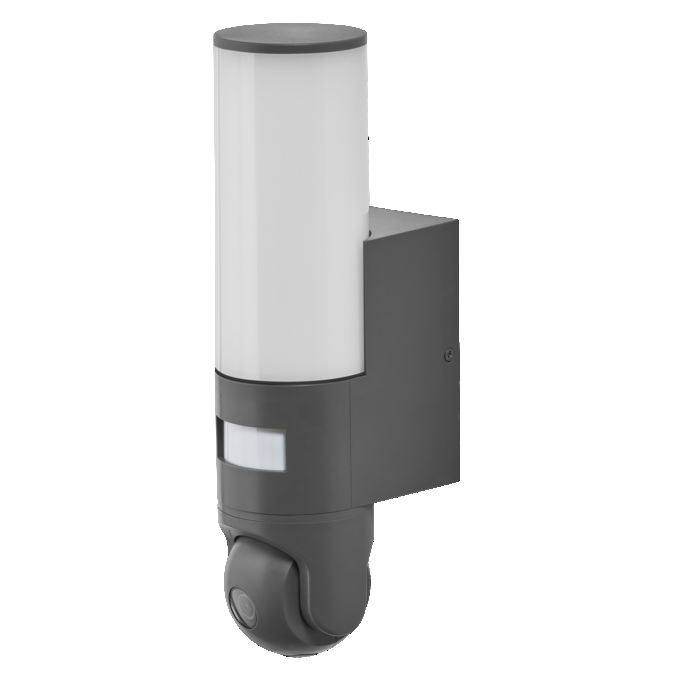

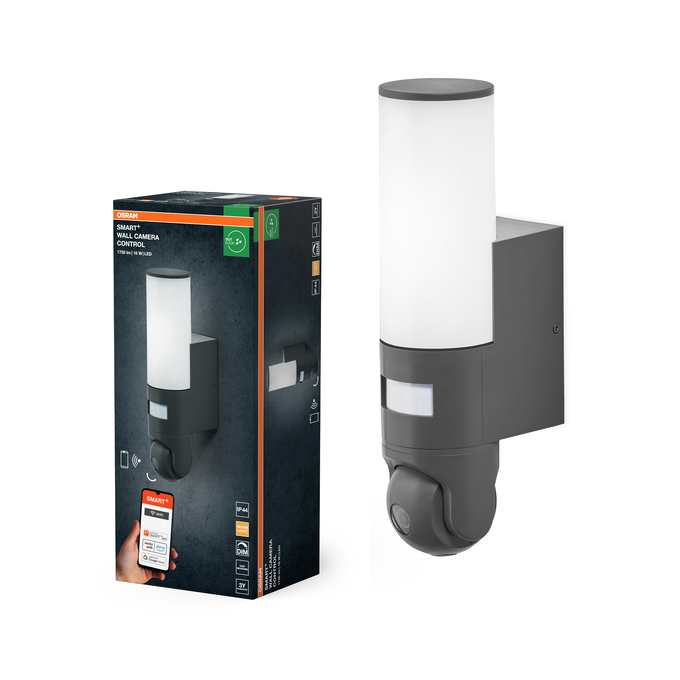

SMART+ Wifi Wall Camera Control
4099854474972
Product benefits
- Easy and quick installation
- Increased perception of safety thanks to high brightness
Areas of application
- Garages
- Entrance areas
- Outdoor use (IP44)
Product features
- Dimmable
- Color temperature: 3,000 K (Warm White)
- Type of protection: IP44
- HD Live view camera
- Built in speaker and alarm siren
- Luminous flux: 900 lm
- Controllable via SMART+ App (with minimum Android 8.0 or iOS 14.0)
Equipment / Accessories
- Complete mounting and connecting accessories included
- For control via SMART+ App, a smartphone or tablet is required (with minimum Android 8.0 or iOS 14.0)
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
References / Links
- Further information and frequently asked questions (FAQs) at
Ambient temperature range
-20…+40 °C
Application environment
Outdoor
Beam angle
207.50 °
Body material
Plastic
Color rendering index Ra
> 80
Color temperature
3000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Polycarbonate (PC)
Dimmable
Yes
GTIN
4099854474972
Height
320.00 mm
Housing color
Dark gray
Length
120.00 mm
Lifespan L70/B50 at 25 °C
25000 h
Light color (designation)
Warm White
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminous efficacy
60 lm/W
Luminous flux
900 lm
Mains frequency
50…60 Hz
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting type
Surface
Nominal current
73.000 mA
Nominal voltage
220…240 V
Nominal wattage
16.00 W
Number of switching cycles
12500
Operating mode
Mains voltage
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62471
RG0
Photobiological safety group acc. to EN62778
RG0
Power factor λ
> 0.5
Product color
Dark gray
Product recyclability
Mostly recyclable product 1)
Product weight
850.00 g
Protection class
II
Protection class IK (shock resistance)
IK05
Sensor technology
Passive infrared (PIR)
Standard deviation of color matching
< 6 sdcm
Temperature range at storage
-20…+80 °C
Total harmonic distortion
≤ 20 %
Total luminous flux of contained light sources
1750 lm
Type of connection
Terminal, 3-Pole (L, N, PE)
Type of dimming
WiFi
Type of protection
IP44
Type of sensor
Infrared sensor
Width
80.00 mm
With light source
Yes
