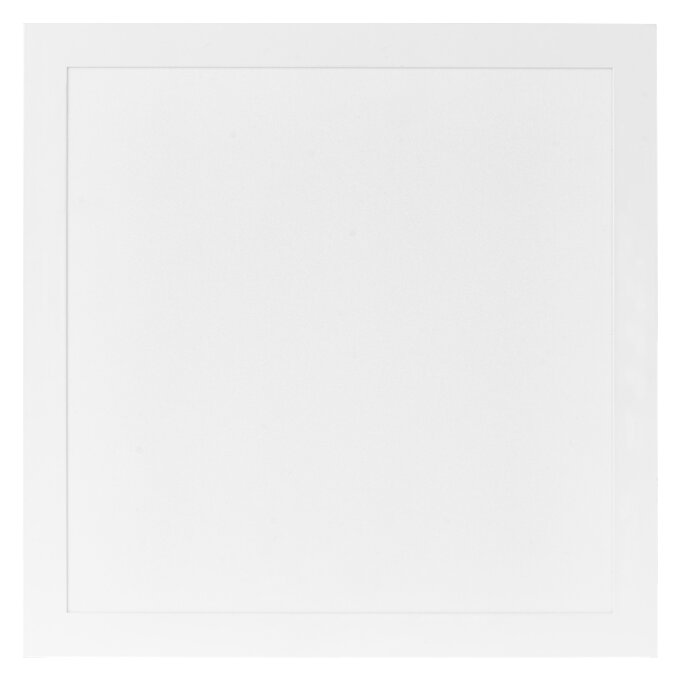

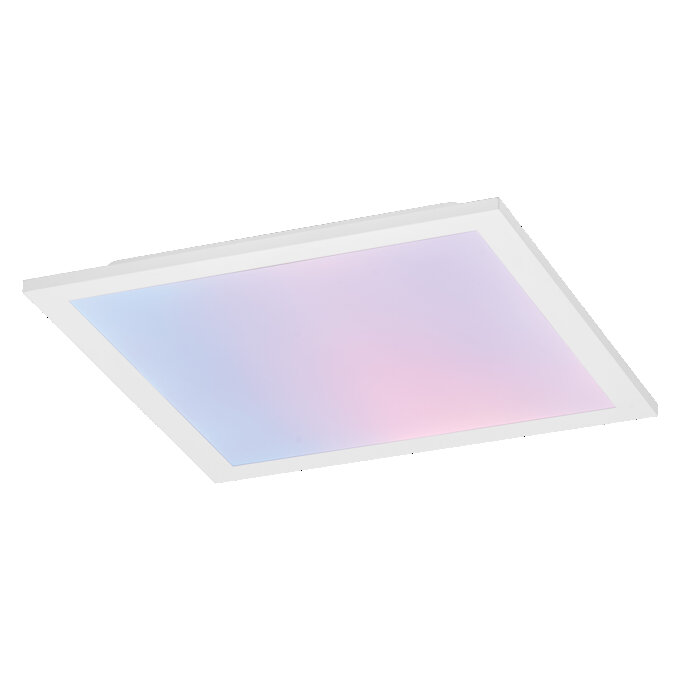

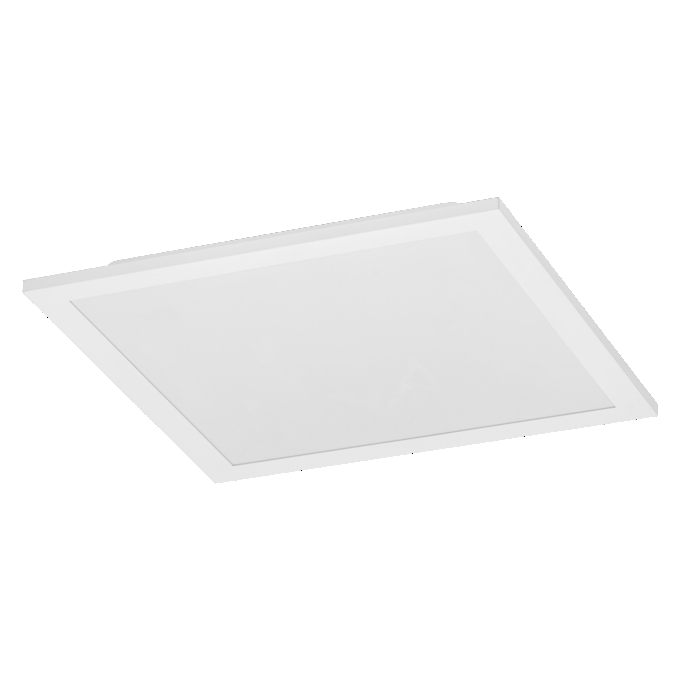

Smart+ Wifi Planon Magic 450x450mm
4099854472213
Areas of application
- Indoor applications
- Kitchens, living rooms, children's rooms or home offices
Product features
- Tunable White and Magic RGB
- Controllable via voice control available: Google Assistant or Amazon Alexa
- Adjustable color temperature via Tunable White: 2,700…6,500 K
- Dimmable
- Network protocol: WiFi
- Controllable via SMART+ App (with minimum Android 8.0 or iOS 14.0)
Equipment / Accessories
- Remote control and battery included
- For control via SMART+ App, a smartphone or tablet is required (with minimum Android 8.0 or iOS 14.0)
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
- Battery Warning: Keep out of reach for children. Swallowing can lead to chemical burns, perforation of soft tissue, and death. Severe burns can occur within 2 hours of ingestion. Seek medical attention immediately.
- If the battery compartment (if applicable) does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.
- Please avoid: Maximal ambient temperature: +35 °C. Replacement of a battery with an incorrect type that can defeat safeguard (for example, in the case of some lithium battery types). Altitude during operation: 2000 m. Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion.
References / Links
- Further information and frequently asked questions (FAQs) at
Ambient temperature range
-20…+40 °C
Application environment
Indoor
Ball shot safe
No
Battery size [GMS]
CR2025
Beam angle
120 °
Body material
Steel
Color rendering index Ra
> 80
Color temperature
2700…6500 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Cover material
Polymethylmethacrylate (PMMA)
Dimmable
Yes
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854472213
Height
60.00 mm
Housing color
White
Inrush current time Th50
620 µs
Length
445.00 mm
Lifespan L70/B50 at 25 °C
30000 h
Light color (designation)
RGBTW
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
79 lm/W
Luminous flux
1900 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
16
Max. number of luminaires per miniature circuit breaker C10
18
Max. number of luminaires per miniature circuit breaker C16
29
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting type
Surface
Nominal current
175.000 mA
Nominal voltage
220…240 V
Nominal wattage
24.00 W
Number of illuminants
empty
Number of switching cycles
100000
Operating mode
Electronic control gear (ECG)
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62471
RG1
Photobiological safety group acc. to EN62778
RG1
Power factor λ
≥0.5
Product color
White
Product recyclability
Mostly recyclable product 1)
Product remark
Reset settings to default by switching the product on for three seconds and off for three seconds and repeating this five times.
Product weight
1200.00 g
Protection class
I
Protection class IK (shock resistance)
IK03
Standard deviation of color matching
6 sdcm
Temperature range at storage
-20…+80 °C
Total harmonic distortion
< 90 %
Total luminous flux of contained light sources
2650 lm
Type of connection
Terminal, 3-Pole (L, N, PE)
Type of protection
IP20
Width
445.00 mm
With light source
Yes
