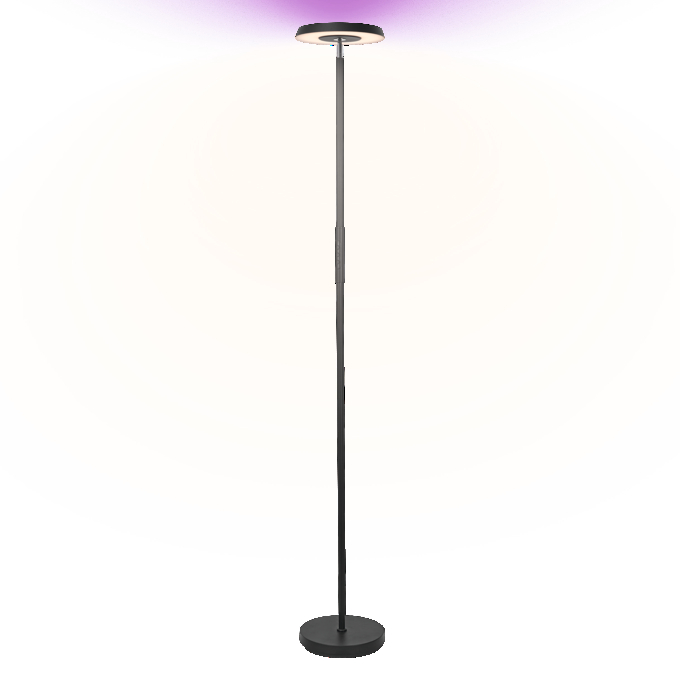

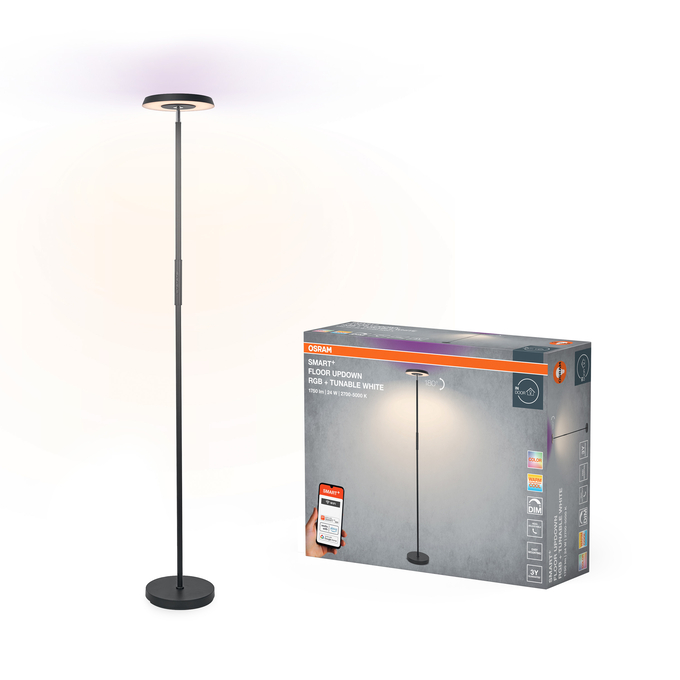

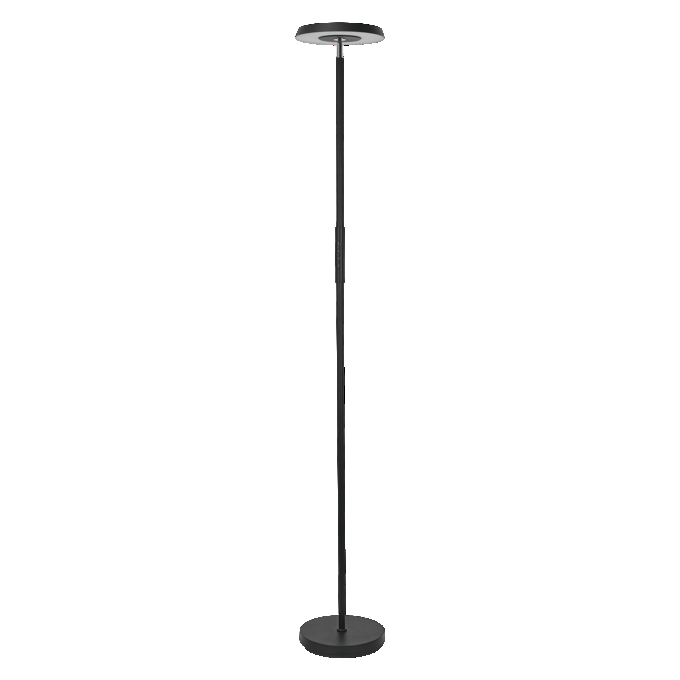

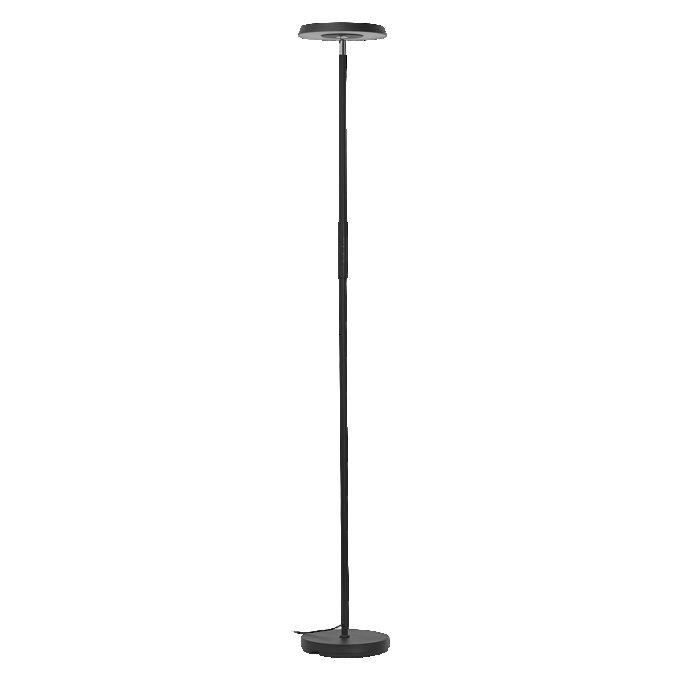

Smart+ Wifi Floor UpDown RGB TW
4099854472251
Product benefits
- Easy and quick installation
- Uses multi color and cold or warm white light for most flexible lighting scenes
Areas of application
- Living areas
- Indirect lighting
- Gaming corners
- Home Entertainment areas
Product features
- Dimmable
- RGB color control, approx. 16 million color options adjustable
- Indirect illumination
- Color temperature and RGB control via switch on the product
- Network protocol: WiFi
- Controllable via SMART+ App (with minimum Android 8.0 or iOS 14.0)
Equipment / Accessories
- Complete mounting and connecting accessories included
- For control via SMART+ App, a smartphone or tablet is required (with minimum Android 8.0 or iOS 14.0)
Safety advice
- To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
References / Links
- Further information and frequently asked questions (FAQs) at
Adjustable
Yes
Ambient temperature range
-10…+40 °C
Application environment
Indoor
Beam angle
110 °
Body material
Metal
Color rendering index Ra
> 80
Color temperature
2700 … 5000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Polycarbonate (PC)
Diameter
251.00 mm
Dimmable
Yes
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854472251
Height
1780.00 mm
Housing color
Black
Inrush current time Th50
148 µs
Lifespan L70/B50 at 25 °C
50000 h
Light color (designation)
RGBTW
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminous efficacy
35 lm/W
Luminous flux
850 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
31
Max. number of luminaires per miniature circuit breaker C10
38
Max. number of luminaires per miniature circuit breaker C16
61
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting type
Standing
Nominal current
150.000 mA
Nominal voltage
220…240 V
Nominal wattage
24.00 W
Number of switching cycles
25000
Operating mode
Mains voltage
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Power factor λ
> 0.70
Product color
Black
Product recyclability
Mostly recyclable product 1)
Product remark
Reset settings to default by switching the product on for three seconds and off for three seconds and repeating this five times.
Product weight
4800.00 g
Protection class
II
Protection class IK (shock resistance)
IK05
Standard deviation of color matching
< 6 sdcm
Standards
CE
Temperature range at storage
-20…+80 °C
Total harmonic distortion
< 65 %
Total luminous flux of contained light sources
1750 lm
Type of connection
Plug, EU
Type of protection
IP20
UGR
< 30
With light source
Yes
