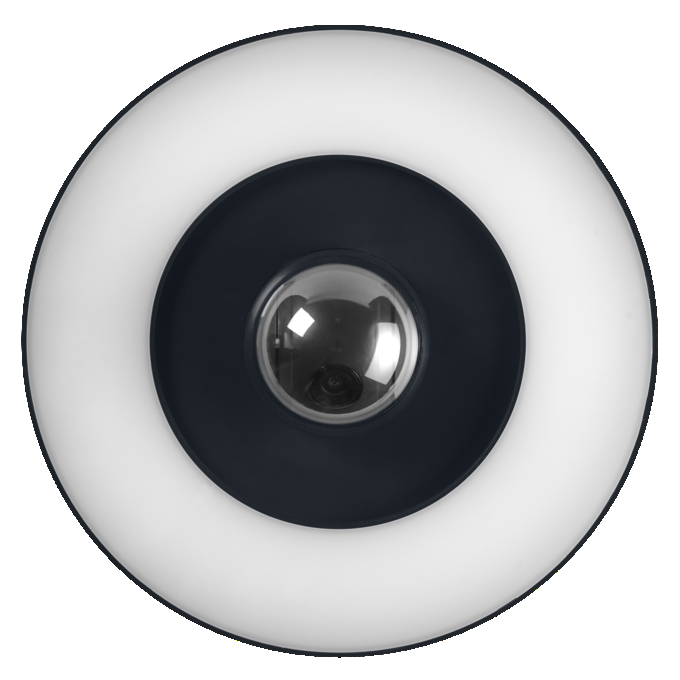

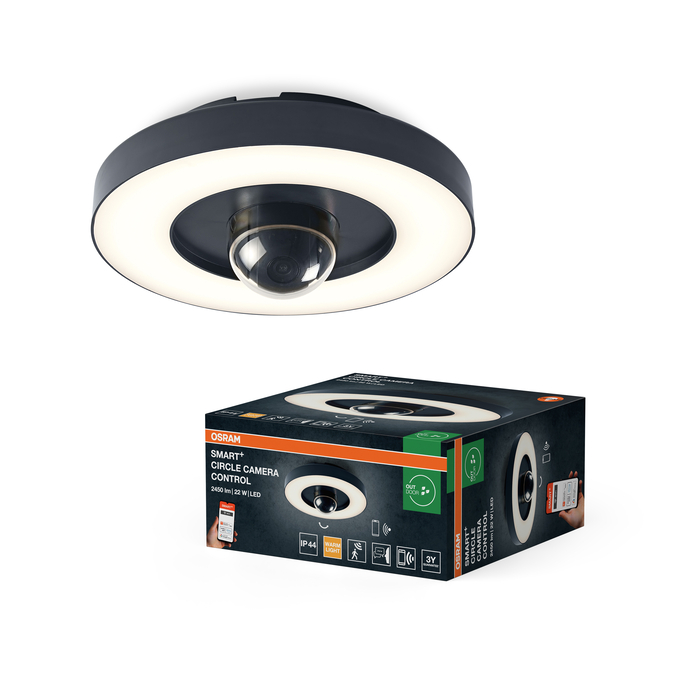

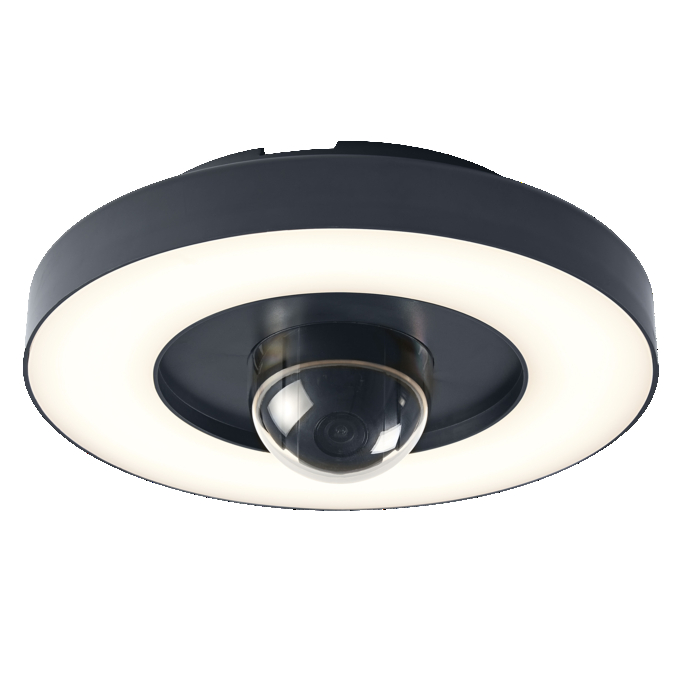

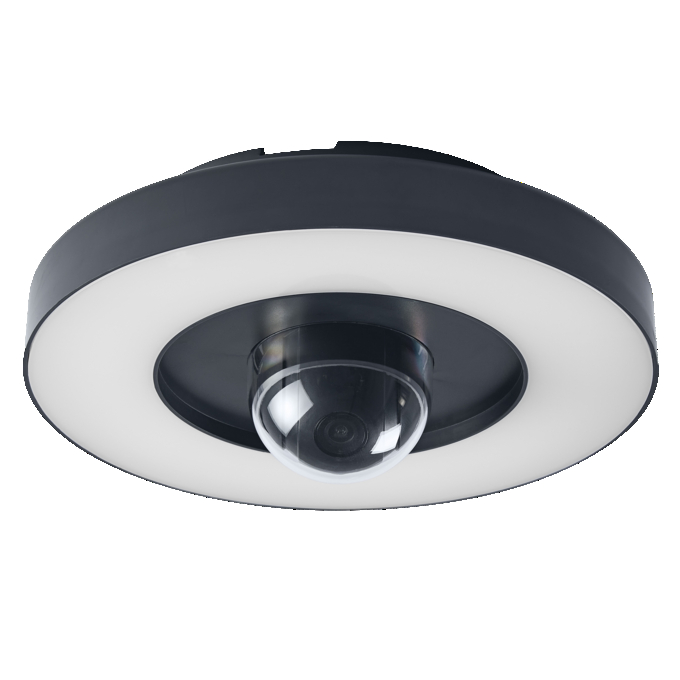

SMART+ Wifi Circle Camera Control
4099854474811
Product benefits
- Easy and quick installation
- Increased perception of safety thanks to high brightness
- The recorded data is saved on the unit's memory card or cloud storage
- High-quality materials
Areas of application
- Outdoor use (IP44)
- Garages
- Entrance areas
Product features
- Controllable via voice control available: Google Assistant or Amazon Alexa
- Built in speaker and alarm siren
- Dimmable
- Color temperature: 3,000 K (Warm White)
- Network protocol: WiFi
- Type of protection: IP44
- HD Live view camera
- The camera can be adjusted
- Controllable via SMART+ App (with minimum Android 8.0 or iOS 14.0)
Equipment / Accessories
- Mounting screws and dowels included
- For control via SMART+ App, a smartphone or tablet is required (with minimum Android 8.0 or iOS 14.0)
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
References / Links
- Further information and frequently asked questions (FAQs) at
Ambient temperature range
-20…+40 °C
Application environment
Outdoor
Ball shot safe
No
Beam angle
112 °
Body material
Acrylonitrile butadiene styrene (ABS)
Color rendering index Ra
> 80
Color temperature
3000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Diameter
280.00 mm
Dimmable
Yes
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854474811
Height
112.00 mm
Housing color
Dark grey
Lifespan L70/B50 at 25 °C
30000 h
Light color (designation)
Warm White
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
72 lm/W
Luminous flux
1600 lm
Mains frequency
50…60 Hz
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting type
Surface
Nominal current
102.000 mA
Nominal voltage
220…240 V
Nominal wattage
22.00 W
Number of switching cycles
100000
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
> 0.5
Product color
Dark grey
Product recyclability
Mostly recyclable product 1)
Product remark
Reset settings to default by switching the product on for three seconds and off for three seconds and repeating this five times.
Product weight
1200.00 g
Protection class
II
Protection class IK (shock resistance)
IK05
Sensor detection angle
340 °
Standard deviation of color matching
≤6 sdcm
Total harmonic distortion
≤ 20 %
Total luminous flux of contained light sources
2450 lm
Type of connection
Terminal, 2-Pole (L, N)
Type of dimming
WiFi
Type of protection
IP44
Type of sensor
Moti
UGR
< 25
With light source
Yes
