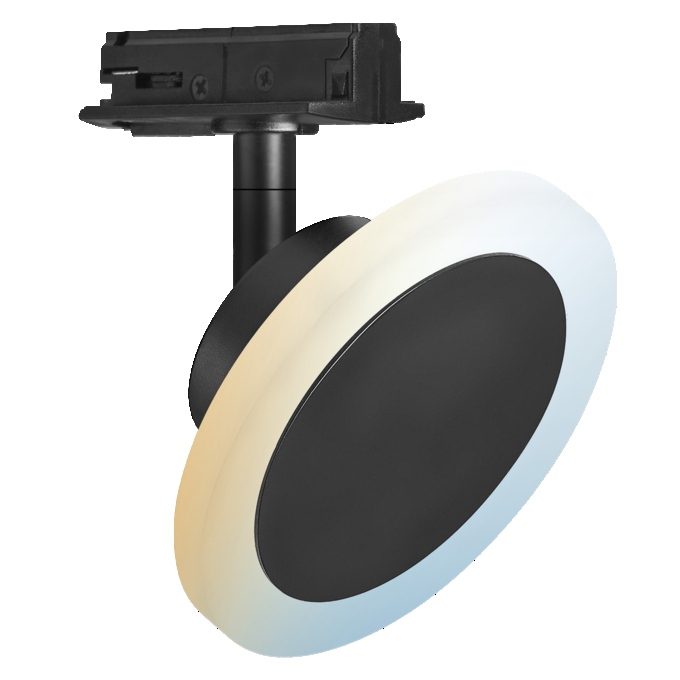

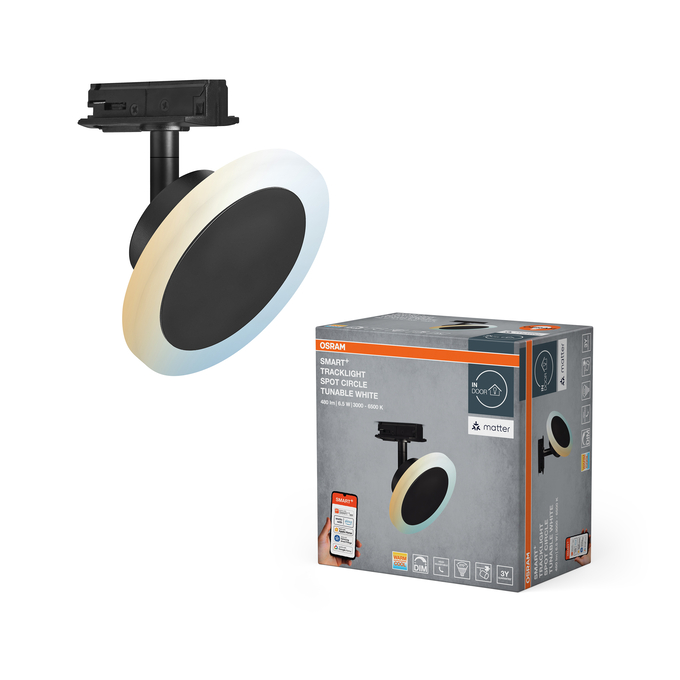

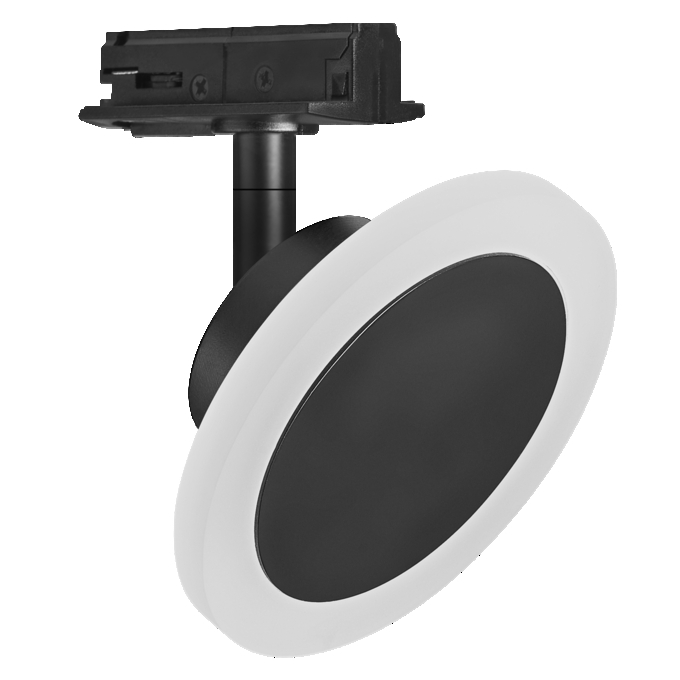

SMART+ MATTER Tracklight Circle Black Tunable White
4099854474682
Product benefits
- Can be rotated and swiveled for optimum illumination
- Creating individual light scenes according to your needs with cold white to warm white (3000 K to 6500 K)
- Timeless elegant design
- High-quality materials
Areas of application
- Kitchens, living rooms, children's rooms or home offices
- Entrance areas
Product features
- Customisable modular smart tracklight system
- Controllable via SMART+ App (with minimum Android 8.0 or iOS 14.0) or any other Matter-compatible platforms
- Controllable via voice control available: Google Assistant or Amazon Alexa
- Adjustable color temperature via Tunable White: 3,000…6,500 K
- Dimmable
- Network protocol: Matter over WiFi (2.4 GHz)
- Compatible with WiFi Remote Control
Equipment / Accessories
- For control via SMART+ App, a smartphone or tablet is required (with minimum Android 8.0 or iOS 14.0)
- Complete mounting and connecting accessories included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
References / Links
- Further information and frequently asked questions (FAQs) at
Ambient temperature range
-20…+40 °C
Application environment
Indoor
Ball shot safe
No
Beam angle
270 °
Body material
Steel
Color rendering index Ra
> 80
Color temperature
3000…6500 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Dimmable
Yes
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854474682
Height
120.00 mm
Housing color
Black
Inrush current time Th50
1900 µs
Length
95.00 mm
Lifespan L70/B50 at 25 °C
30000 h
Light color (designation)
Tunable White
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
53 lm/W
Luminous flux
350 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
11
Max. number of luminaires per miniature circuit breaker C16
18
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting type
Surface
Nominal current
35.000 mA
Nominal voltage
220…240 V
Nominal wattage
6.50 W
Number of switching cycles
15000
Operating mode
Mains voltage
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
≥ 0.5
Product color
Black
Product recyclability
Mostly recyclable product 1)
Product remark
Reset settings to default by switching the product on for five seconds and off for five seconds and repeating this five times.
Product weight
240.00 g
Protection class
II
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
≤6 sdcm
Total harmonic distortion
< 70 %
Total luminous flux of contained light sources
480 lm
Type of connection
Terminal, 2-pin
Type of dimming
WiFi
Type of emergency operation test
None
Type of protection
IP20
Width
120.00 mm
With light source
Yes
