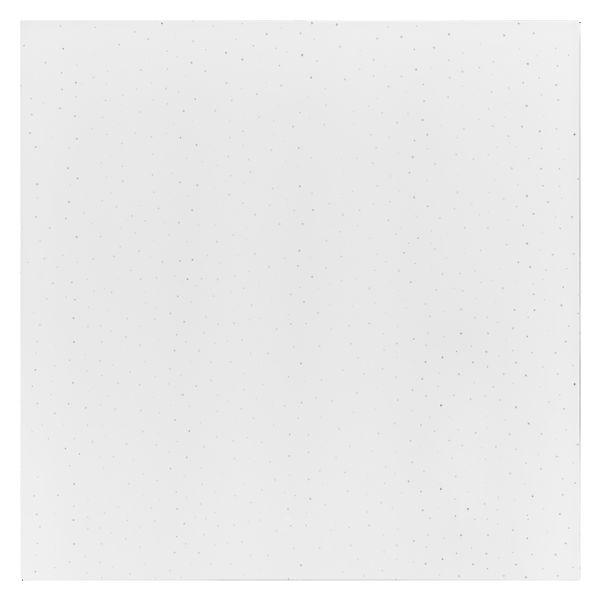

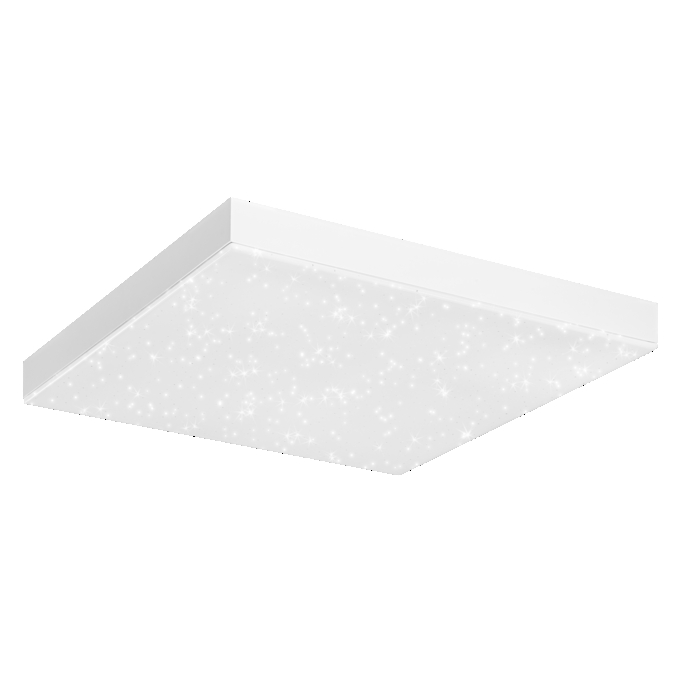

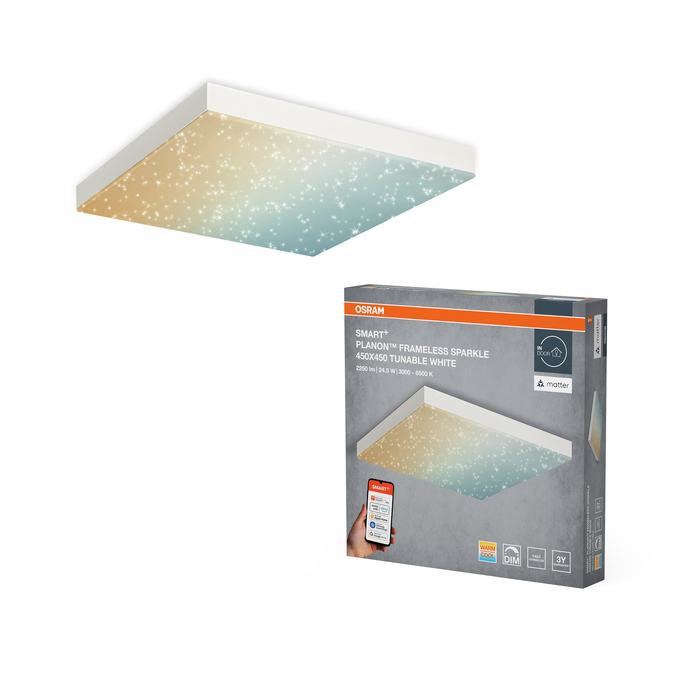

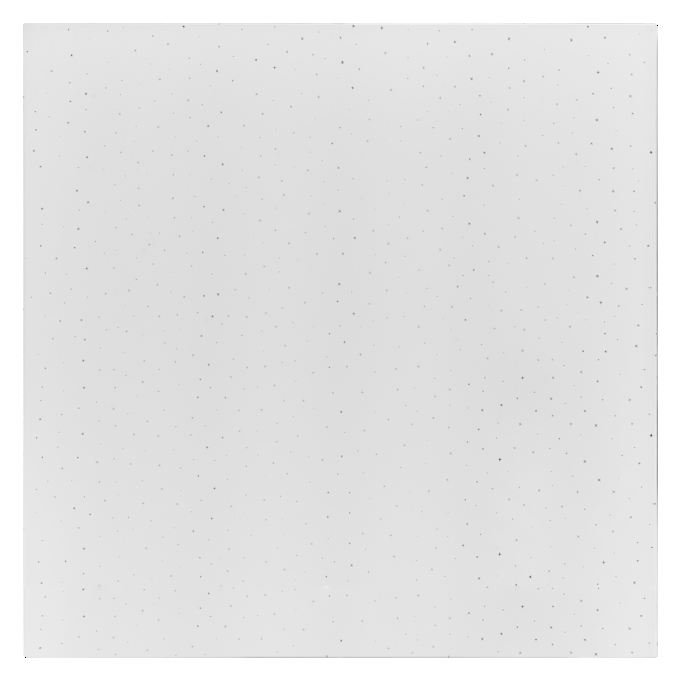

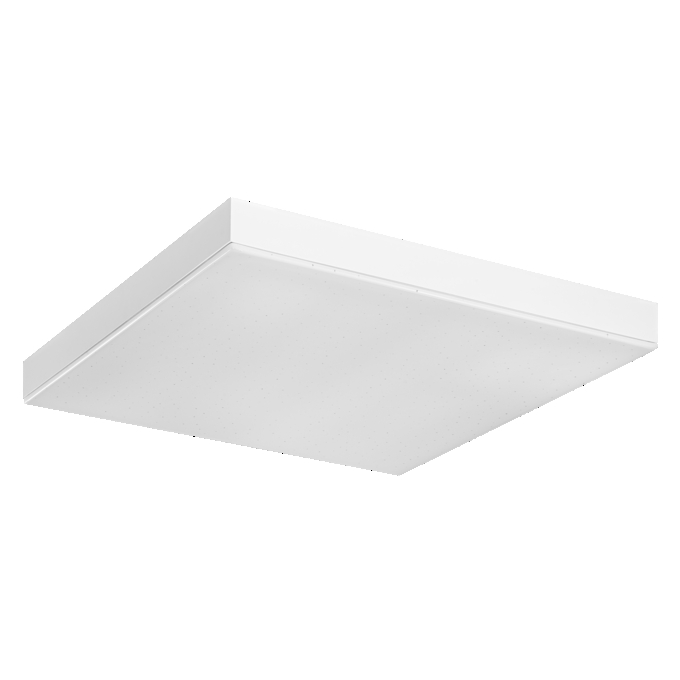

SMART+ MATTER Planon Frameless Sparkle Tunable White 450x450mm
4099854473487
Product benefits
- Creating individual light scenes according to your needs with cold white to warm white (3000 K to 6500 K)
- Elegant design
- Sparkle effect that creates a sky night effect
- Easy and quick installation
Areas of application
- Indoor applications
- Kitchens, living rooms, children's rooms or home offices
Product features
- Controllable via SMART+ App (with minimum Android 8.0 or iOS 14.0)
- Controllable via voice control available: Google Assistant or Amazon Alexa
- Adjustable color temperature via Tunable White: 3,000…6,500 K
- Dimmable
- Network protocol: Matter over WiFi (2.4 GHz)
- Sparkle effect
- Compatible with WiFi Remote Control
Equipment / Accessories
- For control via SMART+ App, a smartphone or tablet is required (with minimum Android 8.0 or iOS 14.0)
- Control via app or voice control requires compatible Smart home system
- Complete mounting and connecting accessories included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
References / Links
- Further information and frequently asked questions (FAQs) at
Ambient temperature range
-20…+40 °C
Application environment
Indoor
Ball shot safe
No
Beam angle
110 °
Body material
Steel
Color rendering index Ra
> 80
Color temperature
3000…6500 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Dimmable
Yes
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854473487
Height
63.00 mm
Housing color
White
Inrush current time Th50
1900 µs
Length
450.00 mm
Lifespan L70/B50 at 25 °C
30000 h
Light color (designation)
Tunable White
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
53 lm/W
Luminous flux
1300 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
29
Max. number of luminaires per miniature circuit breaker C16
49
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting type
Surface
Nominal current
135.000 mA
Nominal voltage
220…240 V
Nominal wattage
24.50 W
Number of illuminants
empty
Number of switching cycles
15000
Operating mode
Mains voltage
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Power factor λ
≥0.7
Product color
White
Product recyclability
Mostly recyclable product 1)
Product remark
Reset settings to default by switching the product on for five seconds and off for five seconds and repeating this five times.
Product weight
2970.00 g
Protection class
I
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
≤6 sdcm
Total harmonic distortion
< 20 %
Total luminous flux of contained light sources
2250 lm
Type of connection
Terminal, 3-Pole (L, N, PE)
Type of dimming
WiFi
Type of emergency operation test
None
Type of protection
IP20
Width
450.00 mm
With light source
Yes
