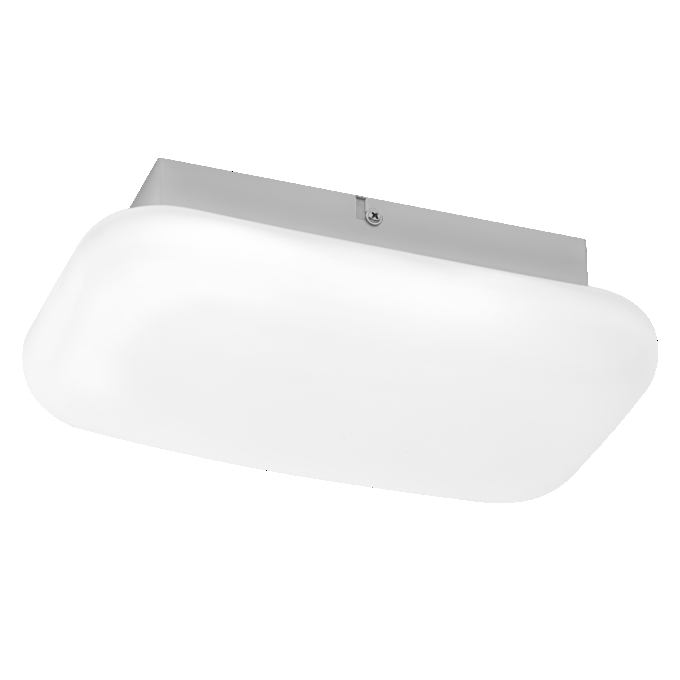

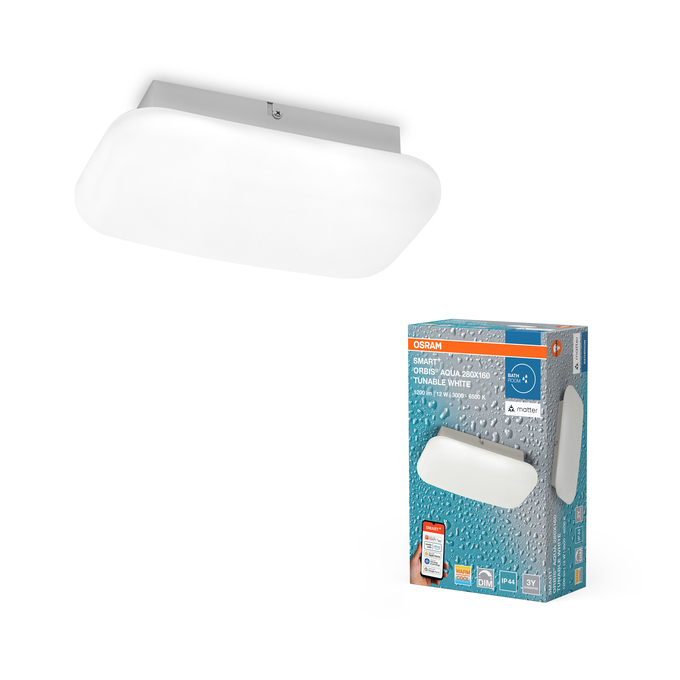

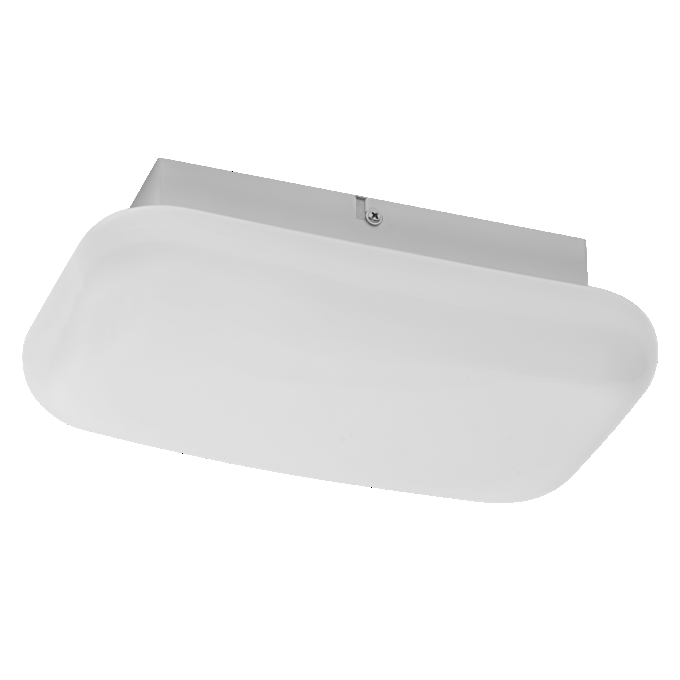

SMART+ MATTER Orbis Wall Aqua IP44 280x160mm Tunable White
4099854473524
Product benefits
- Creating individual light scenes according to your needs with cold white to warm white (3000 K to 6500 K)
- Steerable
- Easy and quick installation
Areas of application
- Bathrooms
Product features
- Controllable via SMART+ App (with minimum Android 8.0 or iOS 14.0) or any other Matter-compatible platforms
- Controllable via voice control available: Google Assistant or Amazon Alexa
- Type of protection: IP44
- Adjustable color temperature via Tunable White: 3,000…6,500 K
- Dimmable
- Network protocol: Matter over WiFi (2.4 GHz)
- Compatible with WiFi Remote Control
Equipment / Accessories
- For control via SMART+ App, a smartphone or tablet is required (with minimum Android 8.0 or iOS 14.0)
- Control via app or voice control requires compatible Smart home system
- Mounting bracket included
- Mounting screws and dowels included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
References / Links
- Further information and frequently asked questions (FAQs) at
Ambient temperature range
-20…+40 °C
Application environment
Indoor
Beam angle
120 °
Body material
Steel
Color rendering index Ra
> 80
Color temperature
3000…6500 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Polycarbonate (PC)
Dimmable
Yes
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854473524
Height
94.00 mm
Housing color
White
Inrush current time Th50
100 µs
Length
280.00 mm
Lifespan L70/B50 at 25 °C
30000 h
Light color (designation)
Tunable White
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
90 lm/W
Luminous flux
1000 lm
Mains frequency
50…60 Hz
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting type
Surface
Nominal current
96.000 mA
Nominal voltage
220…240 V
Nominal wattage
12.00 W
Number of switching cycles
15000
Operating mode
External LED driver
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62471
RG0
Photobiological safety group acc. to EN62778
RG0
Power factor λ
> 0.90
Product color
White
Product recyclability
Mostly recyclable product 1)
Product remark
Reset settings to default by switching the product on for five seconds and off for five seconds and repeating this five times.
Product weight
720.00 g
Protection class
II
Protection class IK (shock resistance)
IK03
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
< 6 sdcm
Temperature range at storage
-20…+80 °C
Total harmonic distortion
< 20 %
Total luminous flux of contained light sources
1200 lm
Type of connection
Screw terminal
Type of dimming
WiFi
Type of emergency operation test
None
Type of protection
IP44
Width
160.00 mm
With light source
Yes
