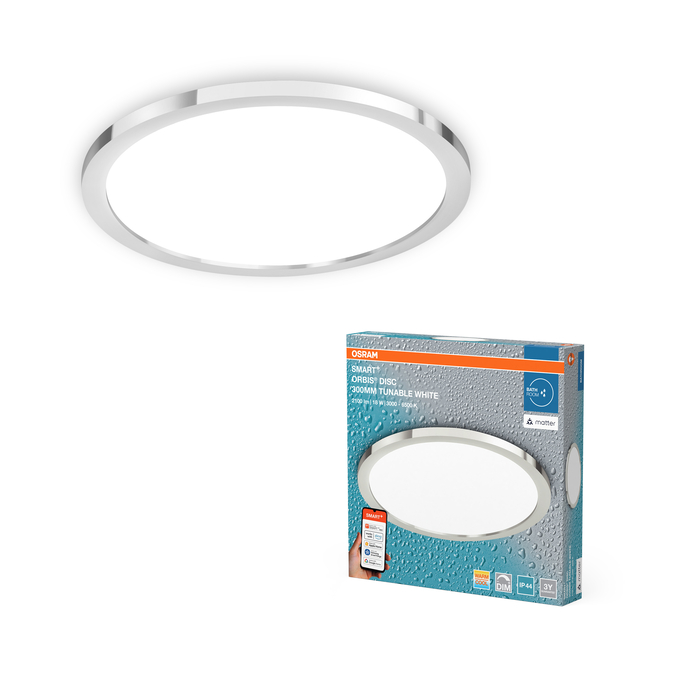

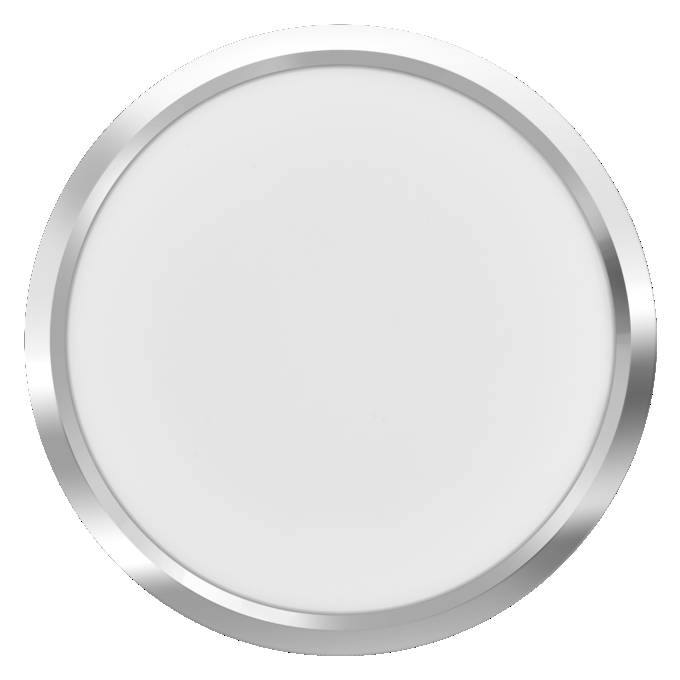

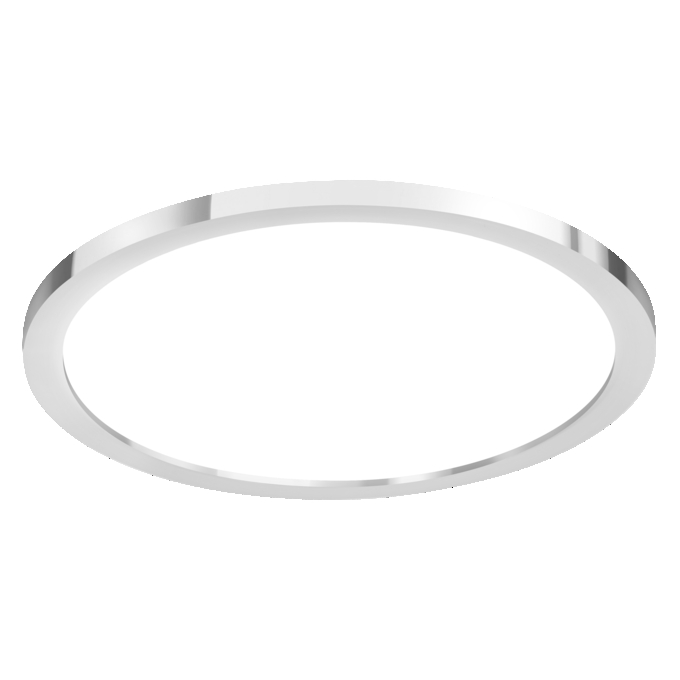

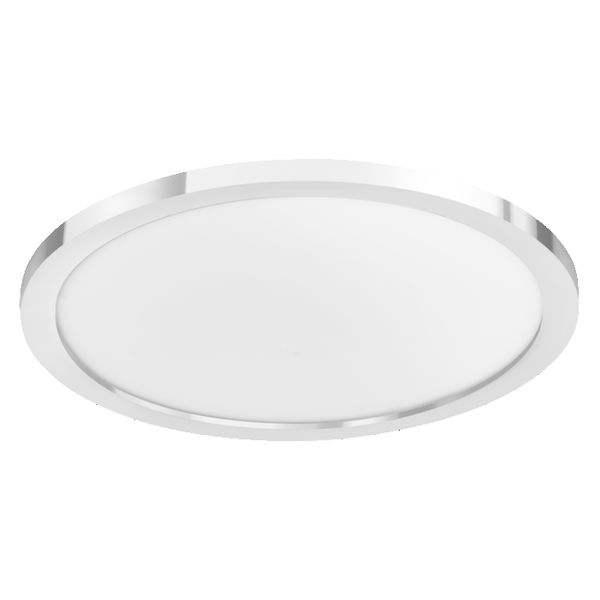

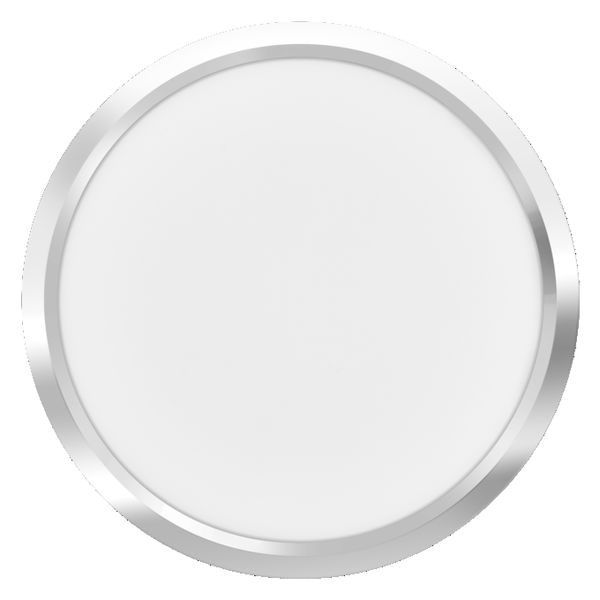

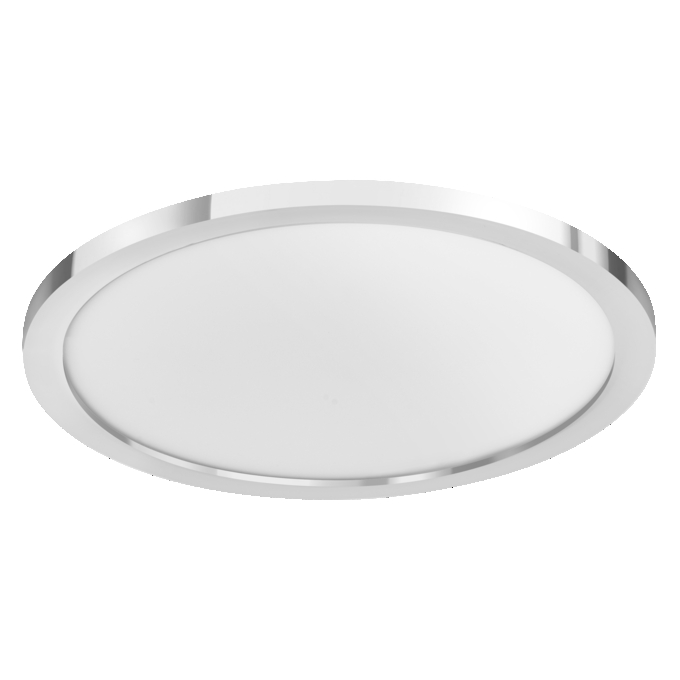

SMART+ MATTER Orbis Disc IP44 300mm Tunable White
4099854473241
Product benefits
- Easy and quick installation
- Steerable
Areas of application
- Bathrooms
Product features
- Type of protection: IP44
- Controllable via voice control available: Google Assistant or Amazon Alexa
- Adjustable color temperature via Tunable White: 3,000…6,500 K
- Dimmable
- Network protocol: WiFi
- Controllable via SMART+ App (with minimum Android 8.0 or iOS 14.0)
Equipment / Accessories
- Mounting bracket included
- Mounting screws and dowels included
- Control via app or voice control requires compatible Smart home system
- For control via SMART+ App, a smartphone or tablet is required (with minimum Android 8.0 or iOS 14.0)
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
References / Links
- Further information and frequently asked questions (FAQs) at
Ambient temperature range
-20…+40 °C
Application environment
Indoor
Beam angle
110 °
Body material
Aluminum
Color rendering index Ra
> 80
Color temperature
3000…6500 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Polycarbonate (PC)
Diameter
300.00 mm
Dimmable
Yes
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854473241
Height
47.00 mm
Housing color
Silver
Inrush current time Th50
100 µs
Lifespan L70/B50 at 25 °C
30000 h
Light color (designation)
Tunable White
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
70 lm/W
Luminous flux
1400 lm
Mains frequency
50…60 Hz
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting type
Surface
Nominal current
130.000 mA
Nominal voltage
220…240 V
Nominal wattage
18.00 W
Number of switching cycles
15000
Operating mode
External LED driver
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62471
RG0
Photobiological safety group acc. to EN62778
RG0
Power factor λ
> 0.70
Product color
Silver
Product recyclability
Mostly recyclable product 1)
Product remark
Reset settings to default by switching the product on for five seconds and off for five seconds and repeating this five times.
Product weight
1150.00 g
Protection class
II
Protection class IK (shock resistance)
IK03
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
< 6 sdcm
Temperature range at storage
-20…+80 °C
Total harmonic distortion
< 20 %
Total luminous flux of contained light sources
2100 lm
Type of connection
Screw terminal
Type of dimming
WiFi
Type of emergency operation test
None
Type of protection
IP44
With light source
Yes
