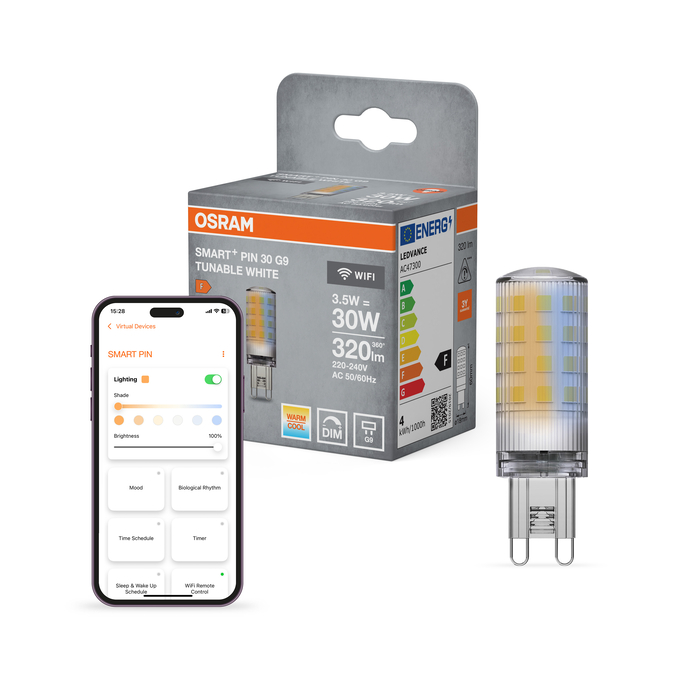

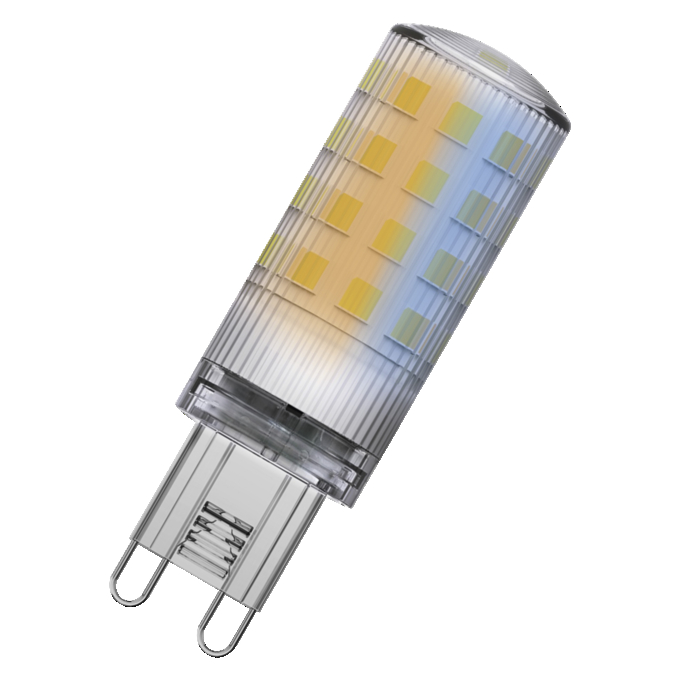

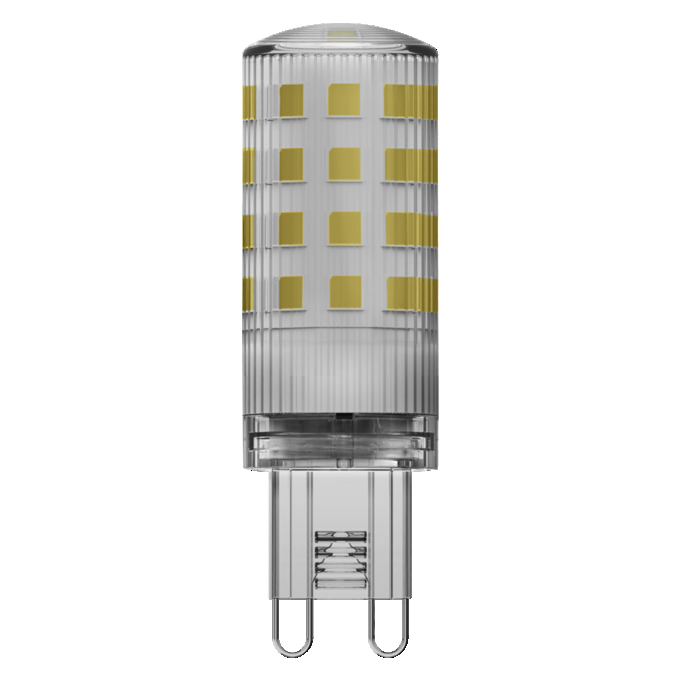

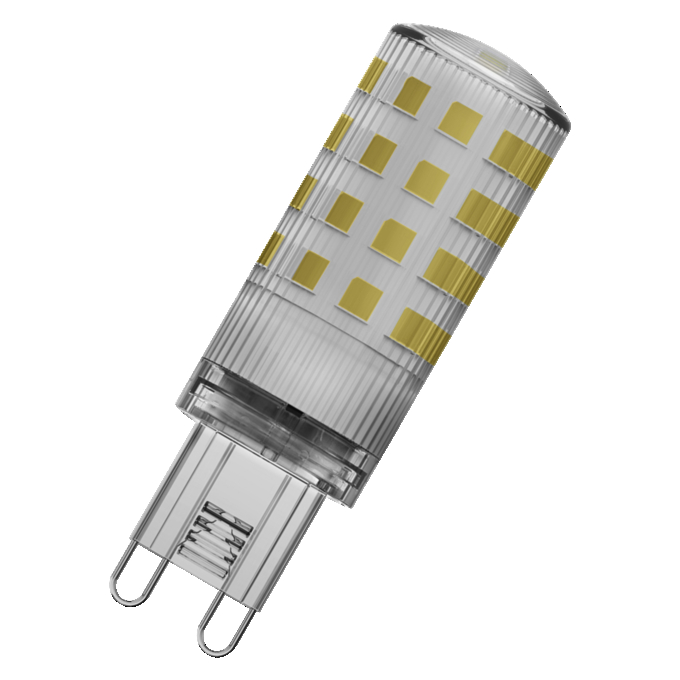

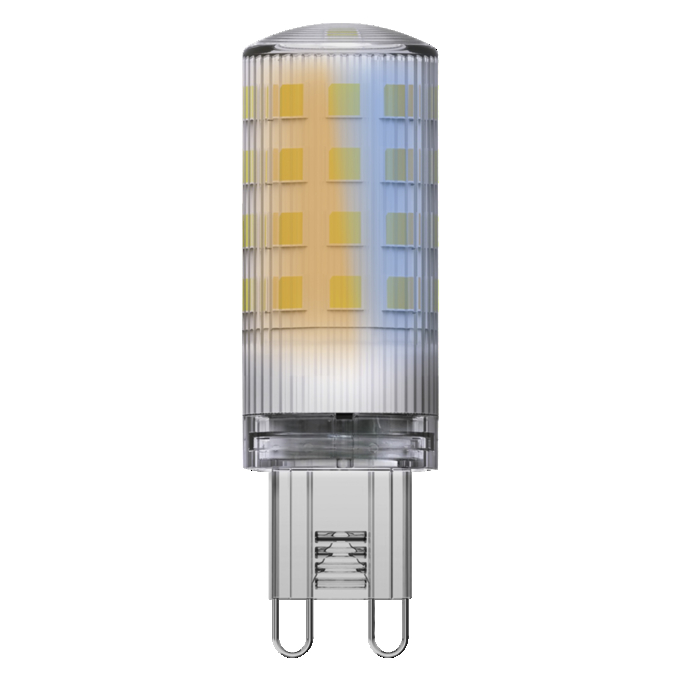

SMART WIFI PIN 3,5W 827 230V TW CL G9
4099854480430
Product benefits
- Wireless control via app
- Easy to install and use
- Contains no mercury
- Lower energy consumption than incandescent or halogen lamps
Areas of application
- General illumination
- Residential interiors
- Professional (hotels, bars, boutiques etc.)
- Outdoor use in suitable outdoor luminaires only
Product features
- Controllable via Google Assistant and Amazon Alexa possible
- Network protocol: WiFi
- Adjustable light color via Tunable White: Warm White to Cool White (2,700 K…6,500 K)
- Dimmable
- Lifetime: up to 20,000 h
- Controllable via SMART+ App (with minimum Android 8.0 or iOS 14.0)
- Compatible with WiFi Remote Control
Equipment / Accessories
- For control via SMART+ App, a smartphone or tablet is required (with minimum Android 8.0 or iOS 14.0)
Safety advice
- Do not touch the lamp if broken.
- Must not be used if outer bulb is defective.
References / Links
- Further information and frequently asked questions (FAQs) at
Adjustable color temperature
2700…6500 K
Ambient temperature range
-20…+40 °C
Anti-glare shield
No
Base (standard designation)
G9
Beam angle
300 °
Beam angle correspondence
SPHERE_360
Body material
Plastic
Chromaticity coordinate x
0.463
Chromaticity coordinate y
0.420
Claim of equivalent power
Yes
Claimed equiv. conventional lamp power
30 W
Color rendering index Ra
80
Color temperature
2700…6500 K
Color-tuneable light source
Yes
Compatible smart home technology
Amazon Ale
Connected light source (CLS)
Yes
Construction wattage
3.50 W
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Correlated colour temperature type
RANGE
Diameter
18.00 mm
Dimmable
Yes 1)
Energy consumption
4.00 kWh/1000h
Energy efficiency class
F 1)
Envelope
No
EPREL ID
1452501
Flickering metric (Pst LM)
1.0
GTIN
4099854480430
Height
18.00 mm
High luminance light source
No
Housing color
Transparent
LED light source replaces a fluorescent light source
No
Length
60.00 mm
Lifespan
20000 h
Light color (designation)
Tunable White
Light source cap-type (or other electric interface)
G9
Lighting technology used
LED
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Lumen main.fact.at end of nom.life time
0.95
Lumen maintenance at end of service lifetime
0.95
Luminous efficacy
91 lm/W
Luminous flux
320 lm
Mains frequency
50…60 Hz
Mains or non-mains
MLS
Maximum diameter
18 mm
Mercury-free
Yes
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Model number
AC47300,AC47300,AC47300
Network protocol
WiFi
Networked standby power for CLS
Nominal current
28 mA
Nominal luminous flux
320 lm
Nominal voltage
220…240 V
Nominal wattage
3.5 W
Non-directional or directional
NDLS
Number of switching cycles
100000
Operating frequency
50…60 Hz
Operating mode
AC Mains
Outer bulb [PICOS]
T18
Packaging recyclability
Mostly recyclable packaging 1)
Power factor λ
0.40
Product color
Clear
Product recyclability
Mostly recyclable product 1)
Product remark
All technical parameters apply to the entire la
Product weight
10.00 g
Standard deviation of color matching
≤6 sdcm
Standby power
＜ 0.5 W
Starting time
< 0.5 s
Stroboscope effect metric (SVM)
0.4
Survival factor
0.90
Type of protection
IP20
Warm-up time (60 %)
‹ 0.50 s
Width
18.00 mm
