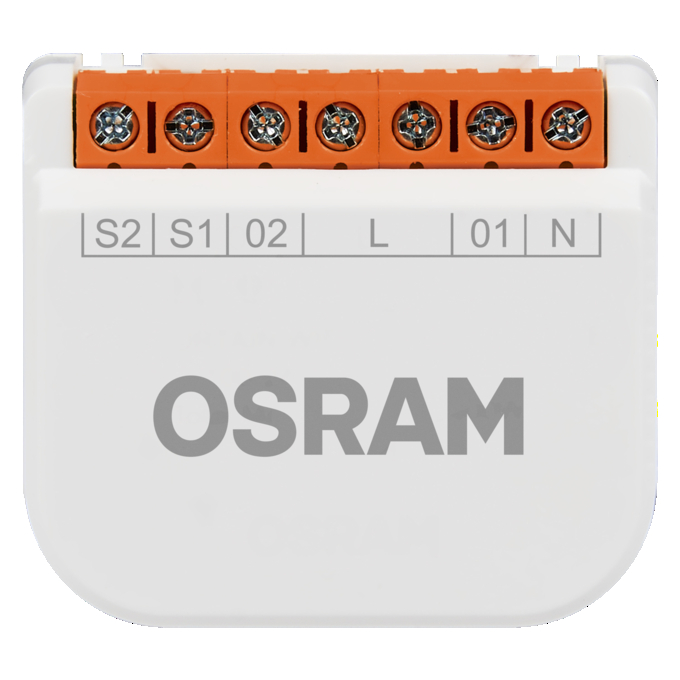

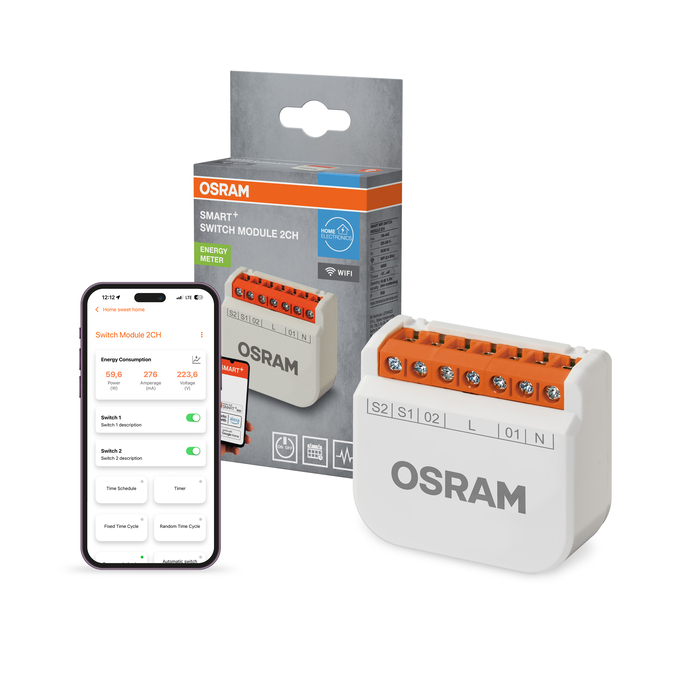

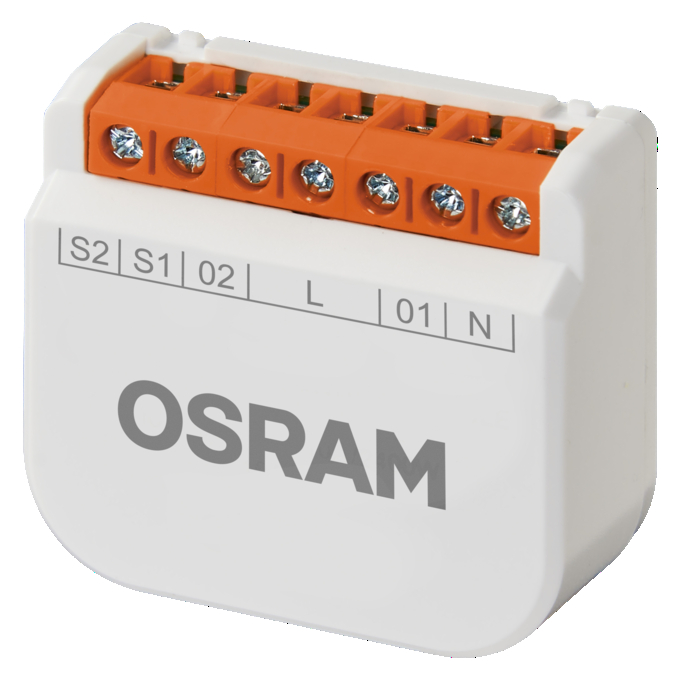

SMART+ WIFI Switch Module 2 Channel
4058075849969
Product benefits
- Wireless control via app or voice control & wired control via switch input
- Integrates conventional electric equipment into compatible smart home systems
- Enables switching of conventional light sources and other electric devices
- Monitors energy usage of connected devices and tracks the energy consumption
- Can trigger and execute smart home routines and automations
Areas of application
- Wherever non-smart devices need to be integrated into compatible smart home systems
- Smart home indoors
Product features
- Controllable via SMART+ App (with minimum Android 8.0 or iOS 14.0)
- Compatible with Amazon Alexa and Google Home
- High switching power: 1CH version: up to 8A-2AX, 2CH version: up to 10A-4AX / channel, total 10A-4AX
- Flexible switching inputs: 1CH version: 1 switching input, 2CH version: 2 switching inputs
- Very compact dimensions enable use even in limited space situations
- Overheating and overload protection
- Energy meter
- Network protocol: WiFi (2.4 GHz)
Equipment / Accessories
- For control via SMART+ App, a smartphone or tablet is required (with minimum Android 8.0 or iOS 14.0)
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Very high capacitive and inductive loads may in some cases lead to destruction of the device or reduction in the number of switching cycles.
- To be connected to an automatic circuit breaker (for 1CH version max. 10 A, for 2CH version max. 16 A).
References / Links
- Further information and frequently asked questions (FAQs) at
Ambient temperature range
-10…+40 °C
Body material
Polycarbonate (PC)
Compatible smart home technology
Amazon Ale
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Dimmable
No
GTIN
4058075849969
Height
38.00 mm
Length
43.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Mains frequency
50…60 Hz
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Network protocol
WiFi
Nominal current
10,0 A
Nominal voltage
220…240 V
Number of switching cycles
40000
Operating mode
Mains voltage
Packaging recyclability
Mostly recyclable packaging 1)
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
30.00 g
Protection class
II
Type of connection
Connection terminals
Type of protection
IP20
Width
18.20 mm
