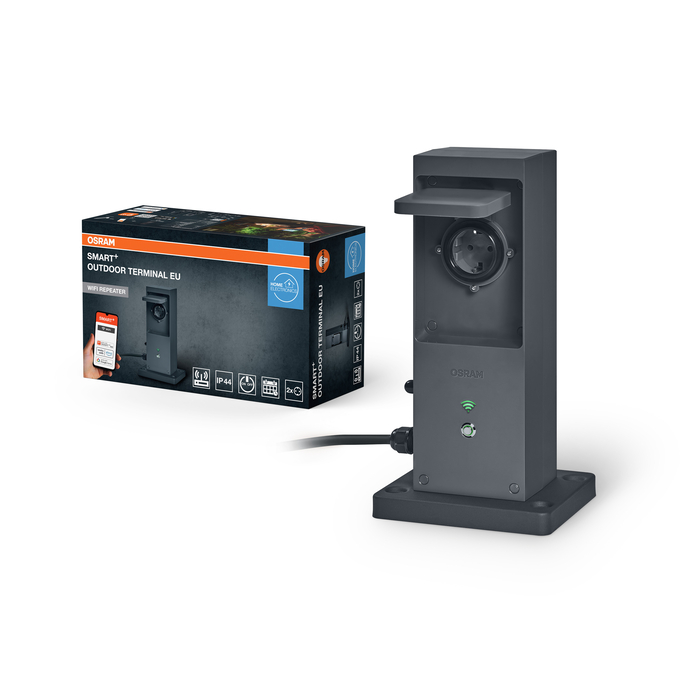

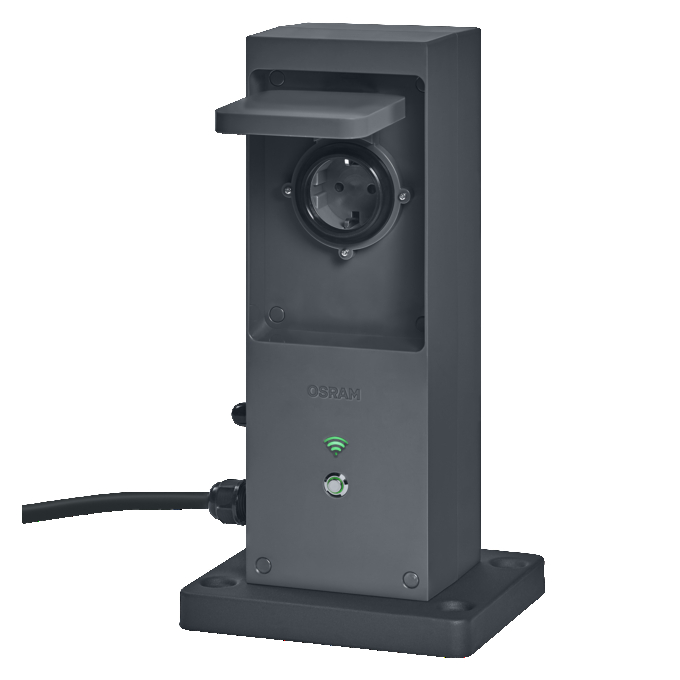

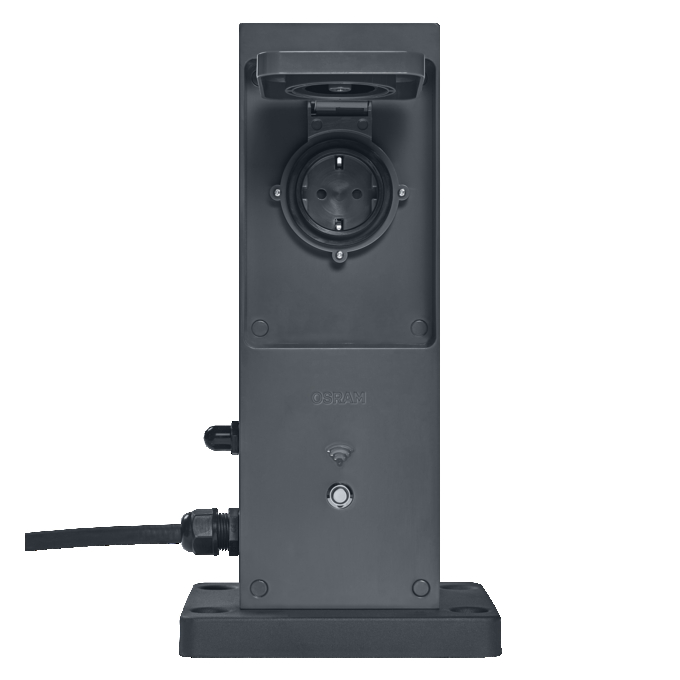

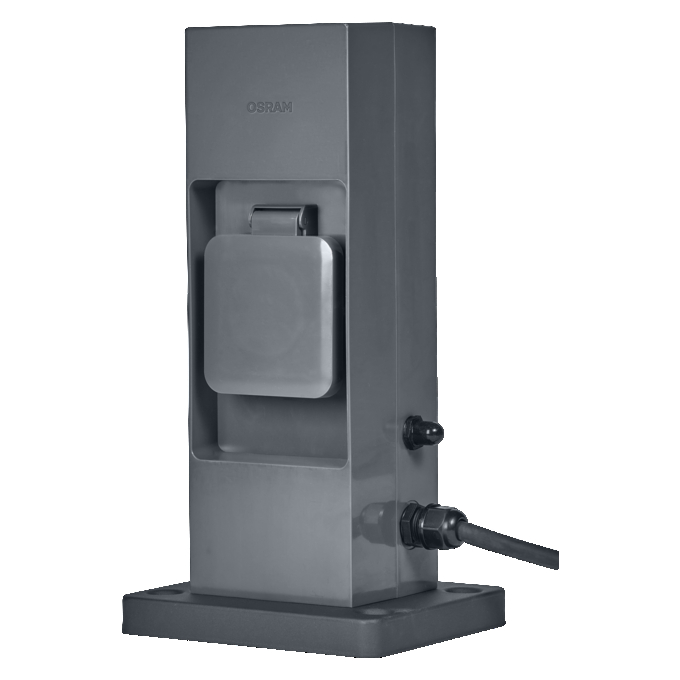

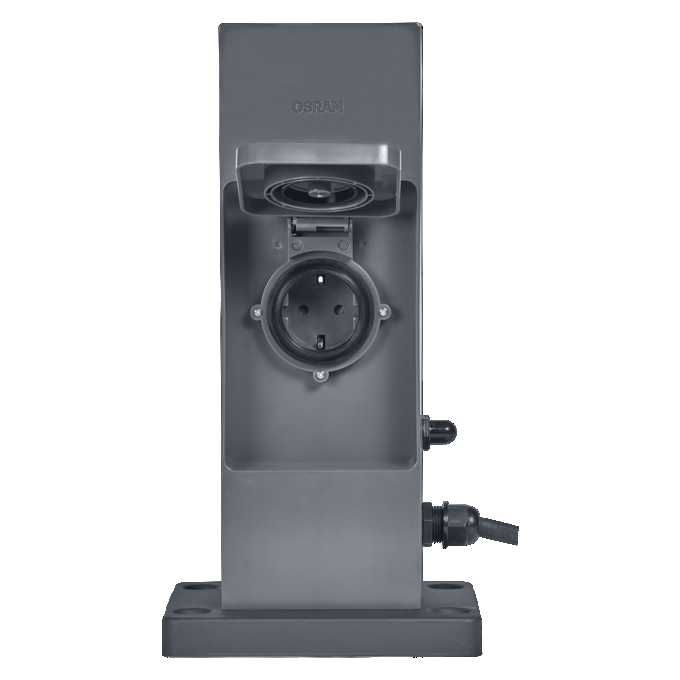

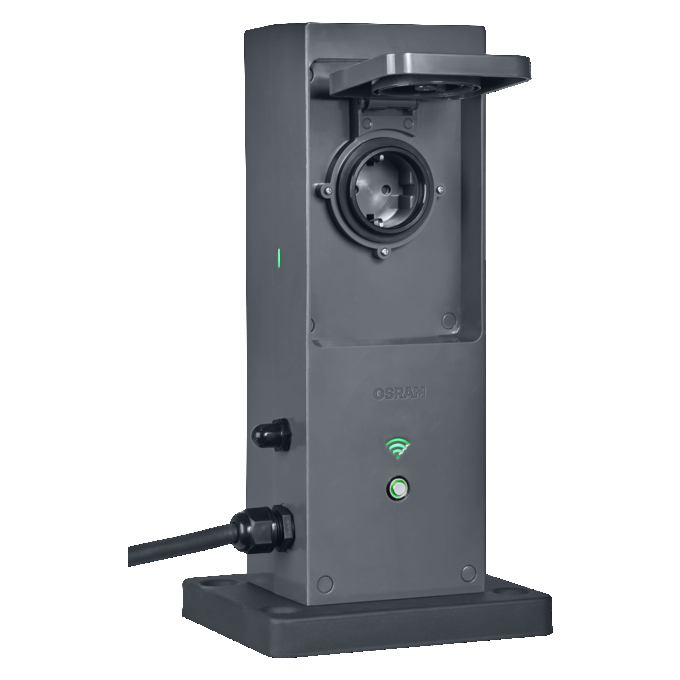

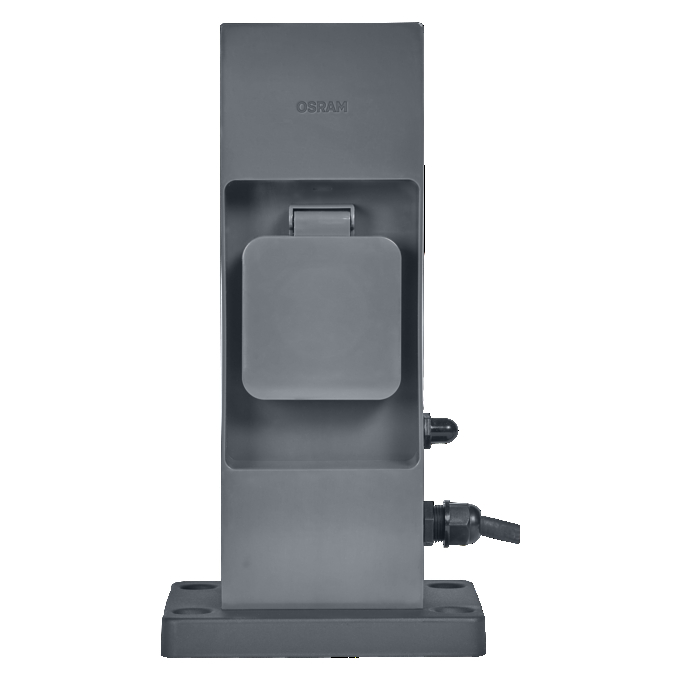

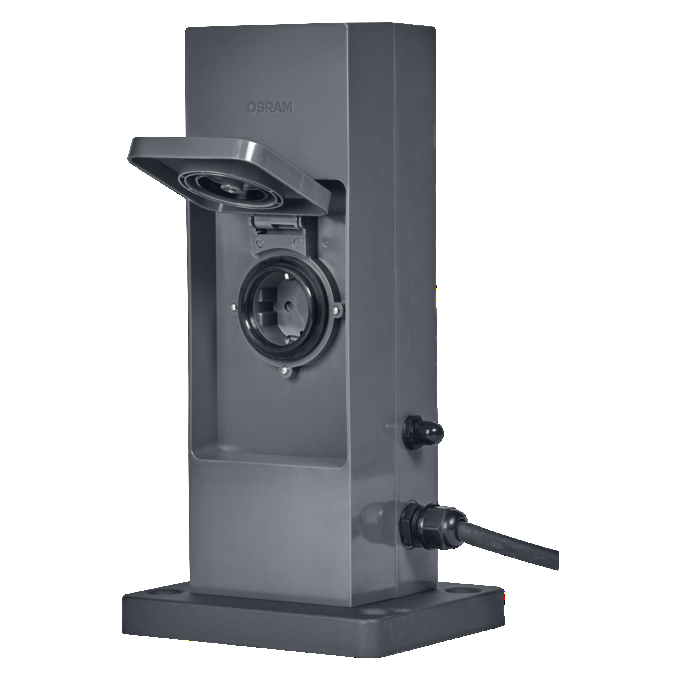

SMART+ WIFI Outdoor Terminal Black
4099854419331
Product benefits
- Integrated WiFi Repeater extends the WLAN zone up to 45 meter in open air
- WiFi Repeater enables pairing of other wireless devices to WLAN upto 15 devices
- High standard of safety: Overload protection, Surge protection
- Integrates conventional electric equipment into compatible smart home systems
- Enables remote switching of conventional light sources and other electric devices
Areas of application
- Wherever non-smart devices need to be integrated into compatible smart home systems
- Gardens, balconies and other outdoor areas
Product features
- Voice control available: Google Assistant and Amazon Alexa
- Two smart standard sockets can be controlled individually
- High switching power: up to 3,680 W / 16 A
- Network protocol: WiFi (2.4 GHz)
- Type of protection: IP44
- Scheduling
- Controllable via SMART+ App (with minimum Android 8.0 or iOS 14.0)
Equipment / Accessories
- Ground spike included for easy fixation in garden soil
- 3 meter power cable for flexible installation
- Cable connector included if the power cord needs to be prolonged
- For control via SMART+ App, a smartphone or tablet is required (with minimum Android 8.0 or iOS 14.0)
Safety advice
- Disconnect devices which generate heat from the mains, i.e. from the SMART+ Outdoor Terminal, after use in order to avoid them being accidentally switched on.
- Very high capacitive and inductive loads may in some cases lead to destruction of the device or reduction in the number of switching cycles.
- Do not use the SMART+ Outdoor Terminal in conjunction with medical equipment.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
References / Links
- Further information and frequently asked questions (FAQs) at
Ambient temperature range
-20…+35 °C
Body material
Plastic
Compatible smart home technology
Amazon Ale
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Dimmable
No
GTIN
4099854419331
Height
325.00 mm
Length
164.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Mains frequency
50 Hz
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Network protocol
WiFi
Nominal current
16 A
Nominal voltage
230 V
Number of switching cycles
10000
Operating mode
Mains voltage
Packaging recyclability
Mostly recyclable packaging 1)
Product color
Anthracite
Product recyclability
Mostly recyclable product 1)
Product weight
1770.00 g
Standards
CE
Type of connection
Plug type E & F
Type of connection, output side
Socket type C & F
Type of protection
IP44
Width
140.00 mm
