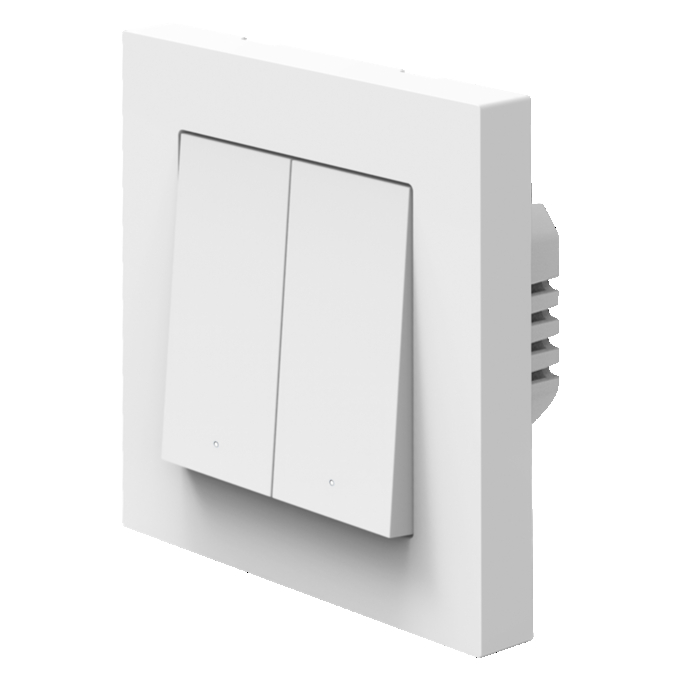

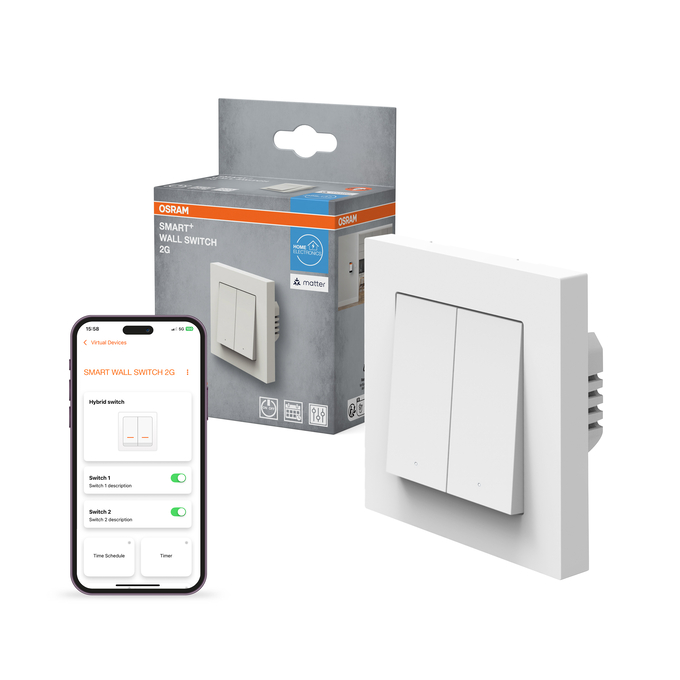

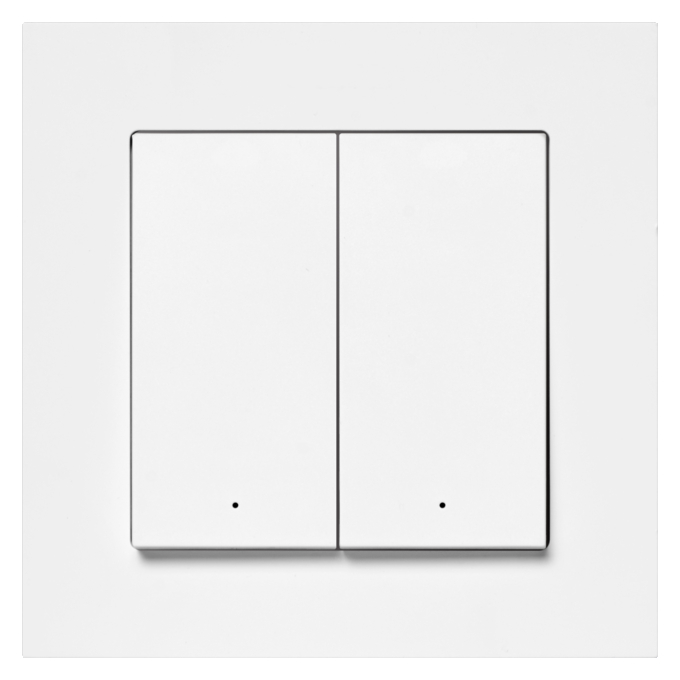

SMART+ MATTER Wall Switch 2 Channel
4058075849921
Product benefits
- Enables switching of conventional light sources and other electric devices
- Smart and relay control: Each button can be individually configured to control one of the relays and/or other SMART+ & Matter products, routines or automations
- Can trigger and execute smart home routines and automations
- Integrated switching relays can be controlled via the Matter systems and the SMART+ app
- Universal control of SMART+ WiFi and Matter over WiFi products
- Wireless control via app or voice control
- Seamless integration with Matter-compatible systems
- Simplified set up process due to the standard user-friendly installation steps
- Enhanced security by implementing strong encryption and authentication protocols
- Integrates conventional electric equipment into compatible smart home systems
Areas of application
- Wherever non-smart devices need to be integrated into compatible smart home systems
- When users want to mix and match smart home products from different manufacturers
- Smart home indoors
Product features
- Controllable via SMART+ App (with minimum Android 8.0 or iOS 14.0) or any other Matter-compatible platforms
- High switching power: 1CH version: up to 10 AX, 2CH version: up to 10 AX / channel, total 16 AX
- Easy installation in standard flush-mounted boxes thanks to 27 mm mounting depth
- Network protocol: Matter over WiFi (2.4 GHz)
- Compatible with Amazon Alexa, Google Home, Apple Home, Samsung SmartThings and other Matter-compatible platforms
Equipment / Accessories
- For control via SMART+ App, a smartphone or tablet is required (with minimum Android 8.0 or iOS 14.0)
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Very high capacitive and inductive loads may in some cases lead to destruction of the device or reduction in the number of switching cycles.
- To be connected to an automatic circuit breaker (for 1G max. 10 A, for 2G max. 16 A).
References / Links
- Further information and frequently asked questions (FAQs) at
Ambient temperature range
-10…+40 °C
Body material
Polycarbonate (PC)
Compatible smart home technology
Amazon Ale
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Dimmable
No
GTIN
4058075849921
Height
86.00 mm
Length
86.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Mains frequency
50…60 Hz
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Network protocol
Matter over WiFi
Nominal current
16 A
Nominal voltage
220…240 V
Number of switching cycles
40000
Operating mode
Mains voltage
Packaging recyclability
Mostly recyclable packaging 1)
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
130.00 g
Protection class
II
Standards
CE
Type of connection
Connection terminals
Type of protection
IP20
Width
42.50 mm
