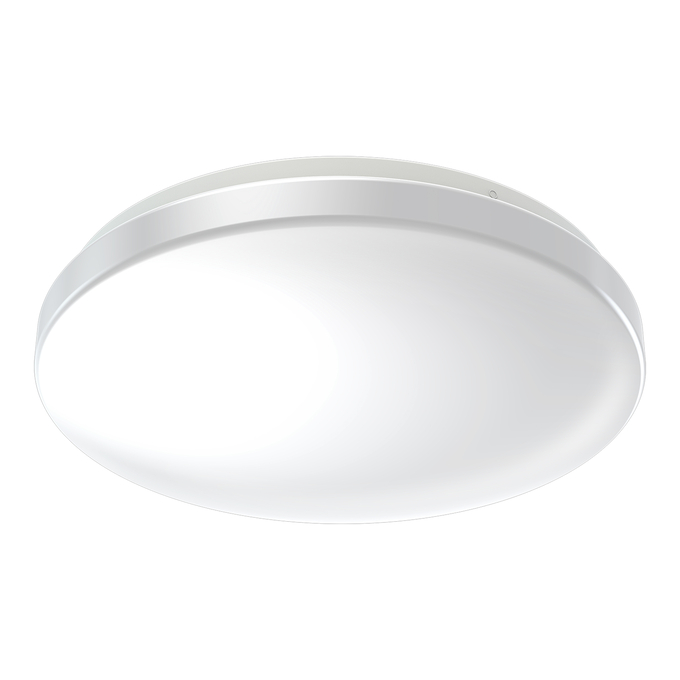

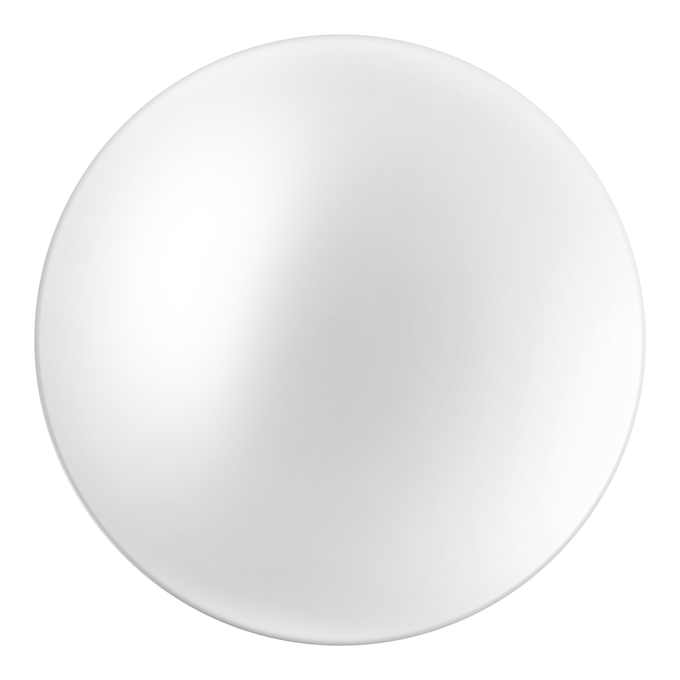

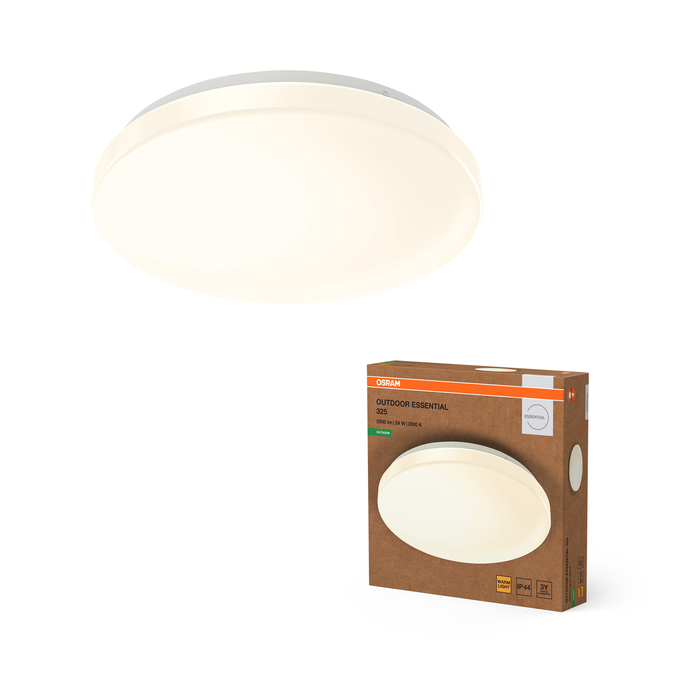

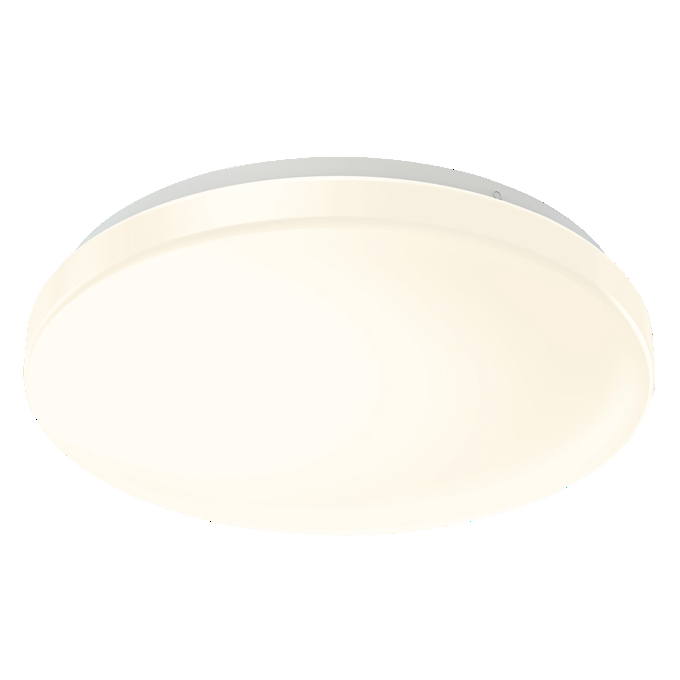

Outdoor Essential 325mm 24W 830 White
4099854445361
Product benefits
- Easy and quick installation
- Homogenous light distribution
- Decorative wall light
Areas of application
- Outdoor
- Patios, balconies
- Entrance lighting
- General illumination
Product features
- Bright and functional outdoor LED luminaires
- Type of protection: IP44
Equipment / Accessories
- Mounting screws and dowels included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
Ambient temperature range
-20…40 °C
Application environment
Outdoor
Ball shot safe
No
Beam angle
120 °
Body material
Steel
Color rendering index Ra
> 80
Color temperature
3000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Cover material
Polymethylmethacrylate (PMMA)
Diameter
325.00 mm
Dimmable
No
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854445361
Height
72.00 mm
Housing color
White
Lifespan L70/B50 at 25 °C
20000 h 1)
Light color (designation)
Warm White
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
75 lm/W
Luminous flux
1800 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
89
Max. number of luminaires per miniature circuit breaker C16
112
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting type
Surface
Nominal current
95.000 mA
Nominal voltage
220…240 V
Nominal wattage
24.00 W
Number of switching cycles
20000
Operating mode
Integrated LED driver
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
> 0.5
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
480.00 g
Protection class
I
Protection class IK (shock resistance)
IK03
Replaceable light source
No
Standard deviation of color matching
< 6 sdcm
Total harmonic distortion
< 130 %
Total luminous flux of contained light sources
2500 lm
Type of connection
Cable, 2-pole
Type of protection
IP44
With light source
Yes
