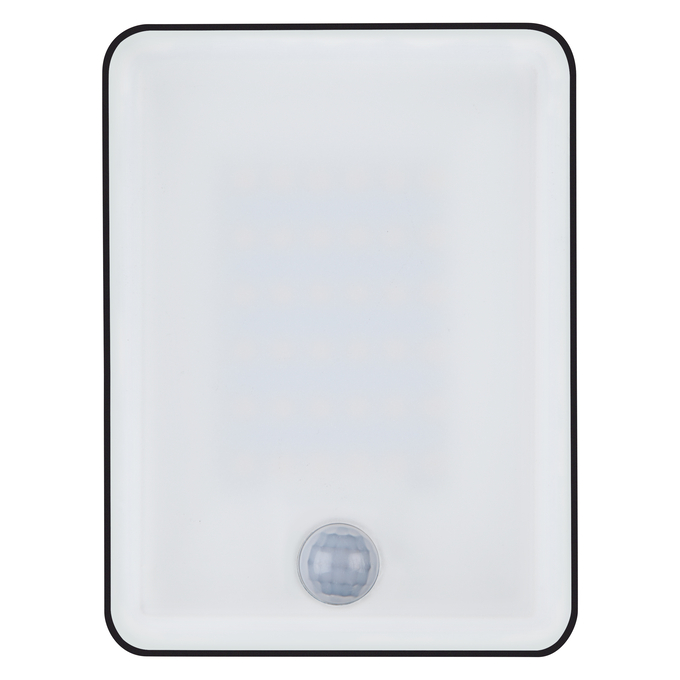

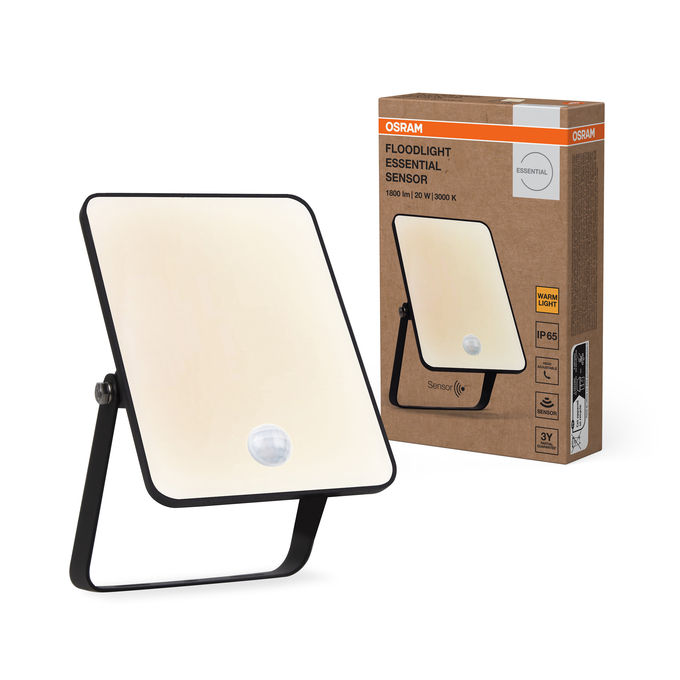

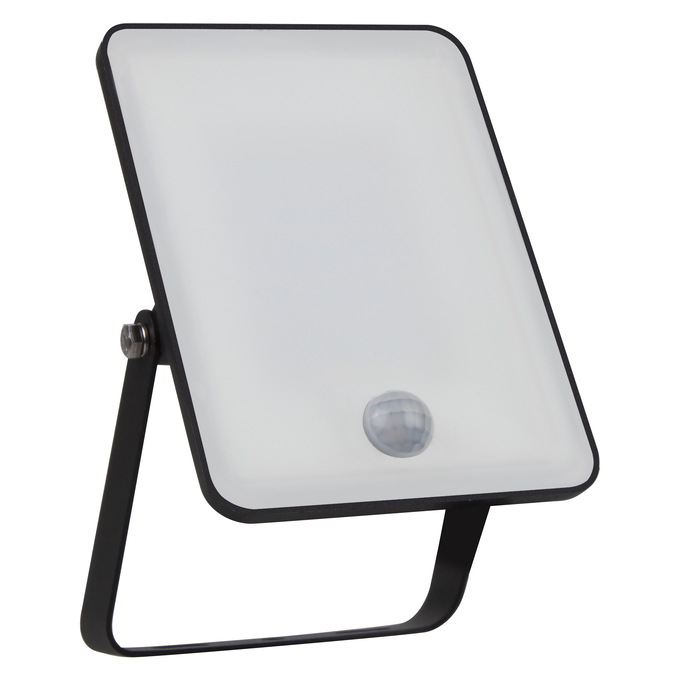

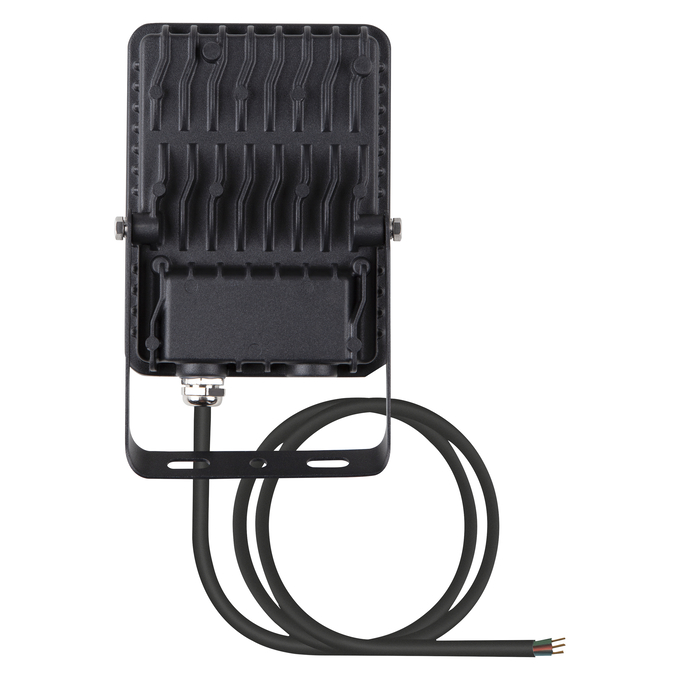

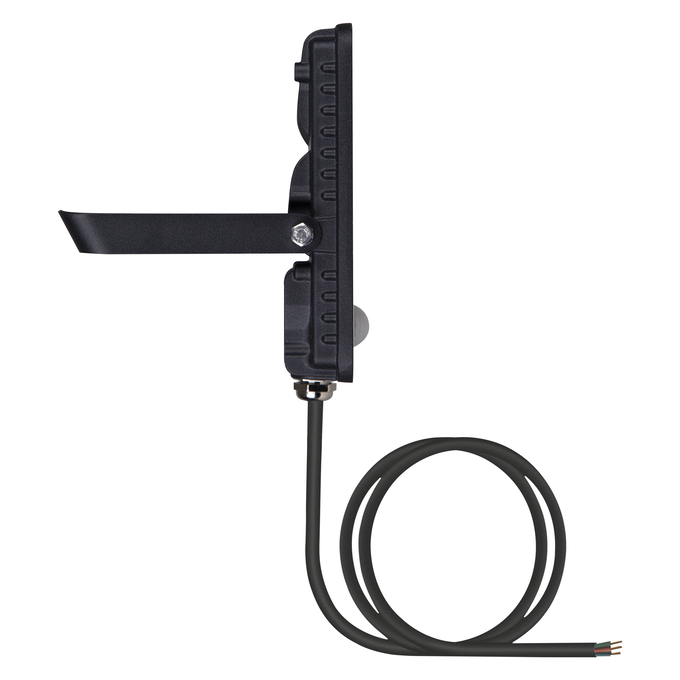

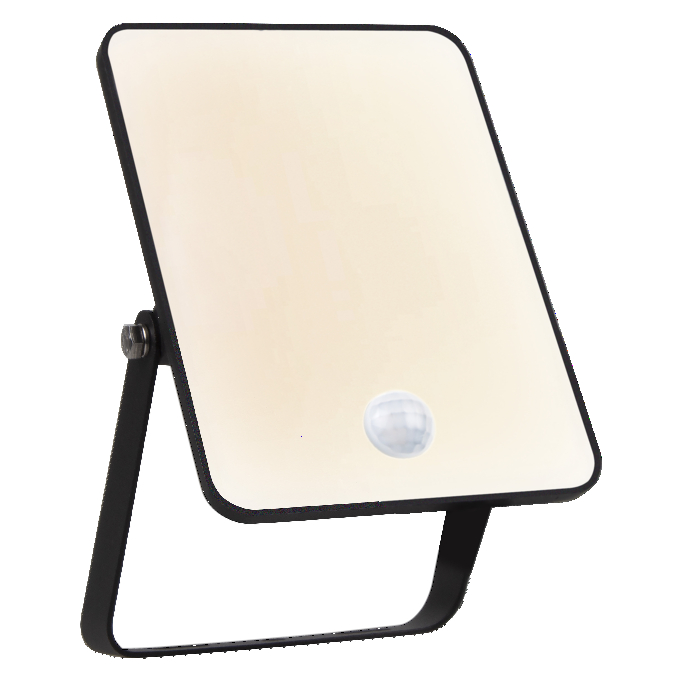

Floodlight Essential Sensor 20W 3000K
4099854430053
Product benefits
- IP65 protection is suitable for outdoor application (for sensor types 100W, 150W, 200W: IP44, the protection against splash water)
- White satin-frosted diffuser for uniform glare-free light
- Demand based lighting and energy saving thanks to motion and daylight sensor
Areas of application
- Outdoor
- Building facades
Product features
- Type of protection, luminaire head and housing: IP65, Type of protection, Sensor: up to IP65
- Adjustable light angle
Equipment / Accessories
- Connection cable included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
- To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
Ambient temperature range
-20…+40 °C
Application environment
Outdoor
Ball shot safe
No
Body material
Aluminum
Cable length
300 mm
Color temperature
3000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Additional info can be provided per individual request
Cover material
Glass
Dimmable
No
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854430053
Height
33.00 mm
Housing color
Black
Inrush current time Th50
56 µs
Length
173.00 mm
Lifespan L70/B50 at 25 °C
25000 h 1)
Light color (designation)
Warm White
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminaire with limited surface temperature, "D sign"
No
Max. number of luminaires per miniature circuit breaker B16
142
Max. number of luminaires per miniature circuit breaker C16
142
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting type
Surface
Nominal wattage
20.00 W
Number of illuminants
empty
Number of switching cycles
25000
Operating mode
Mains voltage
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62471
RG1
Photobiological safety group acc. to EN62778
RG1
Power factor λ
≥0.7
Product color
Black
Product recyclability
Mostly recyclable product 1)
Product weight
360.00 g
Protection class IK (shock resistance)
IK04
Replaceable light source
No
Sensor detection angle
90 °
Standard deviation of color matching
6 sdcm
Total harmonic distortion
< 20 %
Total luminous flux of contained light sources
1800 lm
Type of protection
IP65
Type of sensor
Moti
UGR
< 28
Width
111.00 mm
With light source
Yes
