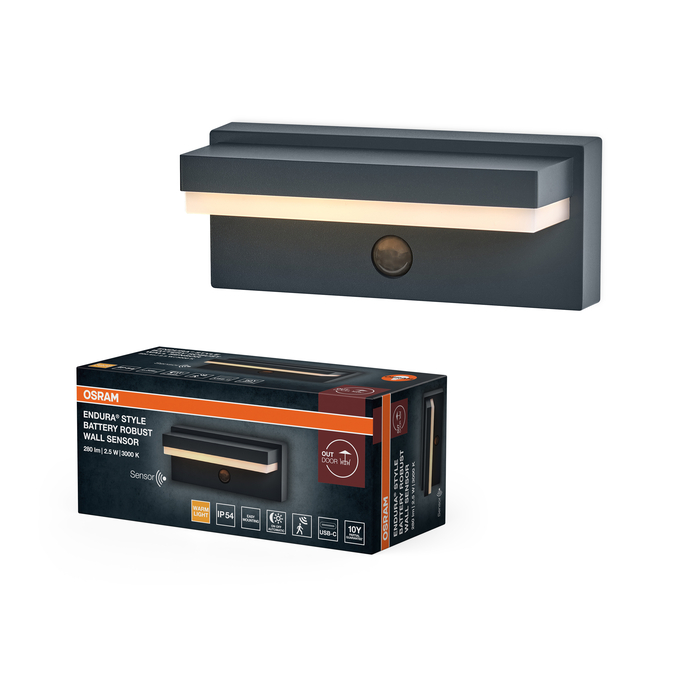

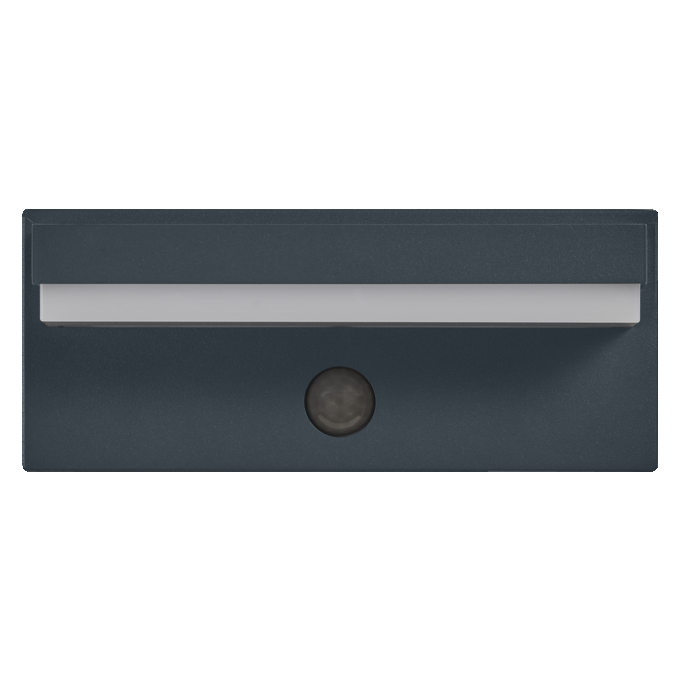

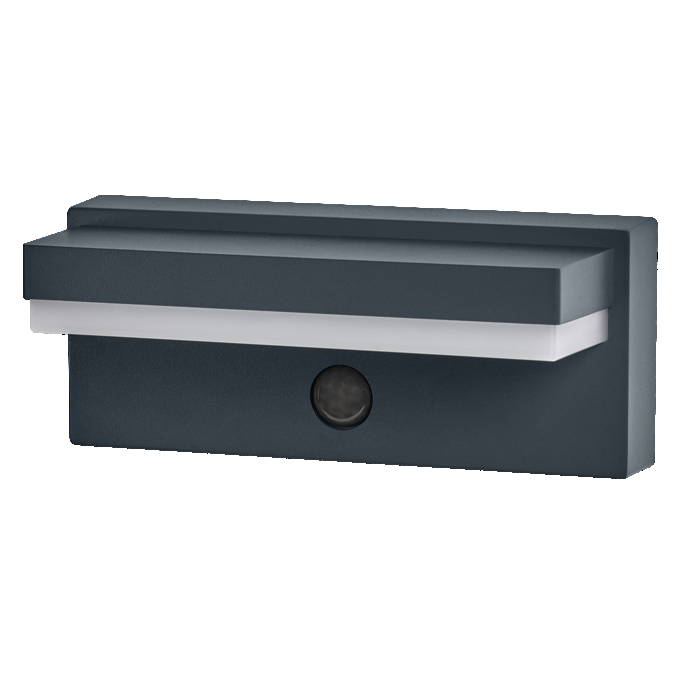

ENDURA® Style USB Robust Sensor Wall IP54 Dark Grey
4099854415692
Product benefits
- Battery-powered outdoor luminaire
- Easy and quick installation, independent from connection to power supply
- Energy-efficient thanks to LED technology
- Long-term energy and cost savings
Areas of application
- Outdoor
- Entrance lighting
- Patios, balconies
- General illumination
- Facade and building illumination
Product features
- Integrated rechargeable lithium battery which can be charged via USB cable
- Robust technical design
- Easily detachable from the wall for charging thanks to slide-up mounting plate
- Type of protection: IP54
- Housing material: aluminum
- Diffuser made of opal polycarbonate
- PIR motion detection and daylight sensor, matching with housing color
- 2 different work modes - Mode 1: 100% light for 40 seconds when motion detected (dusk-to-dawn); Mode 2: 20% light permanently on + 100% light for 40 seconds when motion detected (dusk-to-dawn)
- Lower light smog, on-demand lighting (sensor version)
- Operating time with fully charged battery: up to 2 months (depending on the work mode and conditions)
- Charging time up to 7 h
Equipment / Accessories
- Mounting accessories included
- USB-C charging cable (cable length: 1.0 m) included
Safety advice
- If the battery compartment (if applicable) does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.
- Please avoid: Maximal ambient temperature: +35 °C. Replacement of a battery with an incorrect type that can defeat safeguard (for example, in the case of some lithium battery types). Altitude during operation: 2000 m. Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion.
Ambient temperature range
-20…+40 °C
Application environment
Outdoor
Ball shot safe
No
Battery size [GMS]
Others
Beam angle
90 °
Body material
Aluminum
Cable length
1000 mm
Color rendering index Ra
> 80
Color temperature
3000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Polycarbonate (PC)
Detection range of motion sensor
4…8 m
Detection threshold of daylight sensor
0…80 lx
Dimmable
No
Flickering metric (Pst LM)
≤1 %
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854415692
Height
86.00 mm
Housing color
Dark grey
Length
206.00 mm
Lifespan L70/B50 at 25 °C
50000 h 1)
Light color (designation)
Warm White
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
72 lm/W
Luminous flux
180 lm
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting type
Surface
Nominal capacity of battery
4400 mAh
Nominal current
1000.000 mA
Nominal voltage
3,7 V
Nominal voltage of battery
3.7 V
Nominal wattage
2.50 W
Number of included batteries
1
Number of switching cycles
50000
Operating mode
Battery
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Product color
Dark grey
Product recyclability
Mostly recyclable product 1)
Product weight
620.00 g
Protection class
III
Protection class IK (shock resistance)
IK06
Replaceable light source
No
Sensor controlled switching time
0…40 s
Sensor detection angle
100 °
Sensor technology
Passive infrared (PIR)
Standard deviation of color matching
< 6 sdcm
Stroboscope effect metric (SVM)
≤0.4
Temperature range at storage
-20…+80 °C
Total luminous flux of contained light sources
280 lm
Type of Battery
Lithium ion
Type of protection
IP54
Type of sensor
Lig
Width
88.00 mm
With light source
Yes
