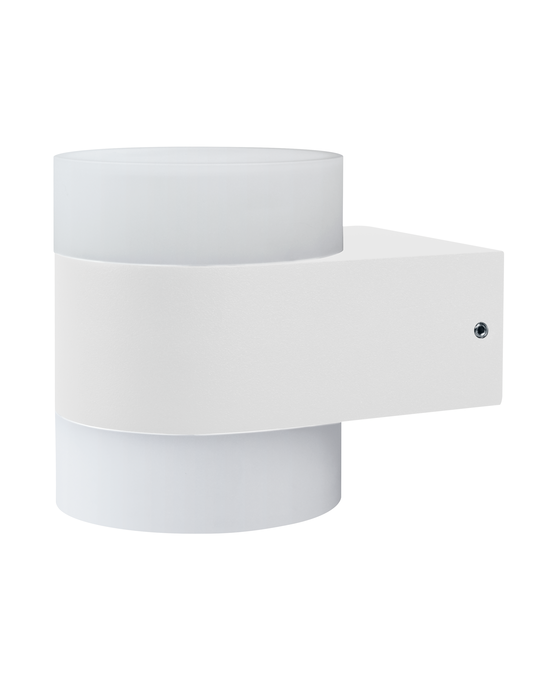

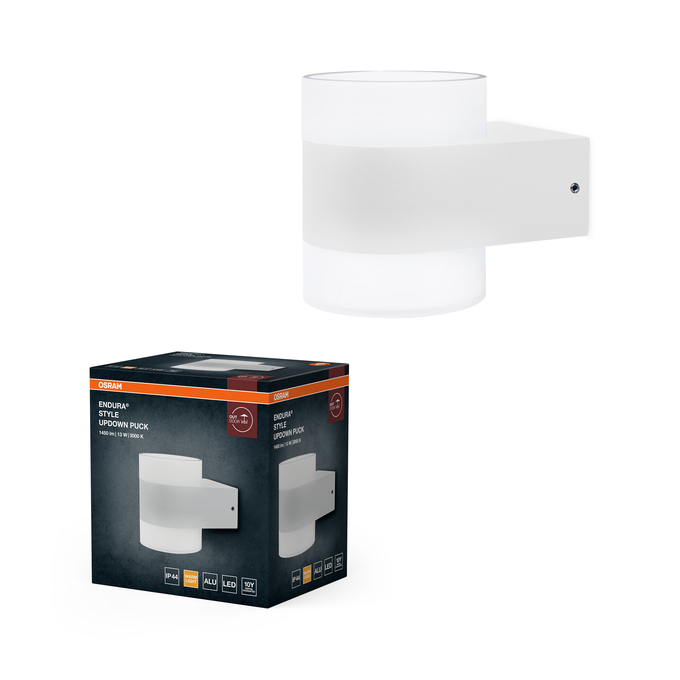

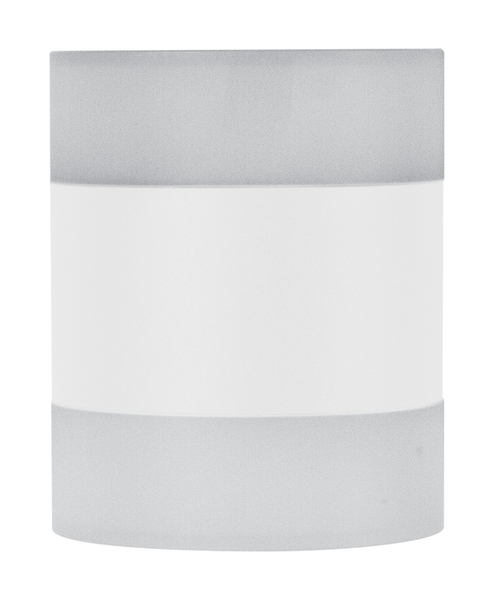

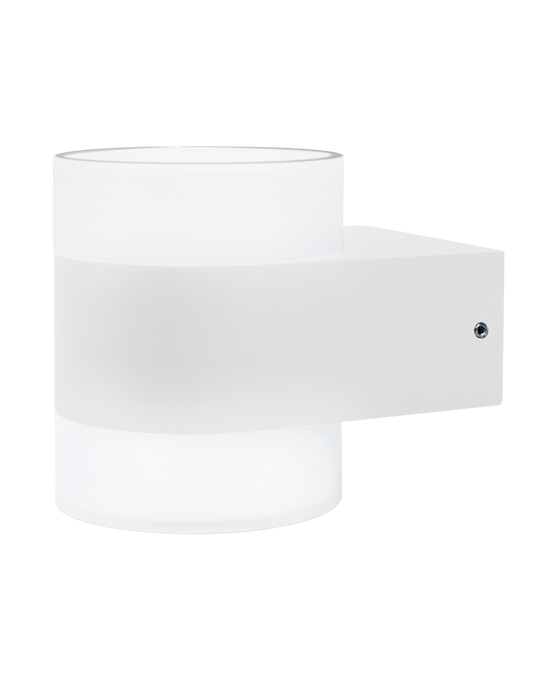

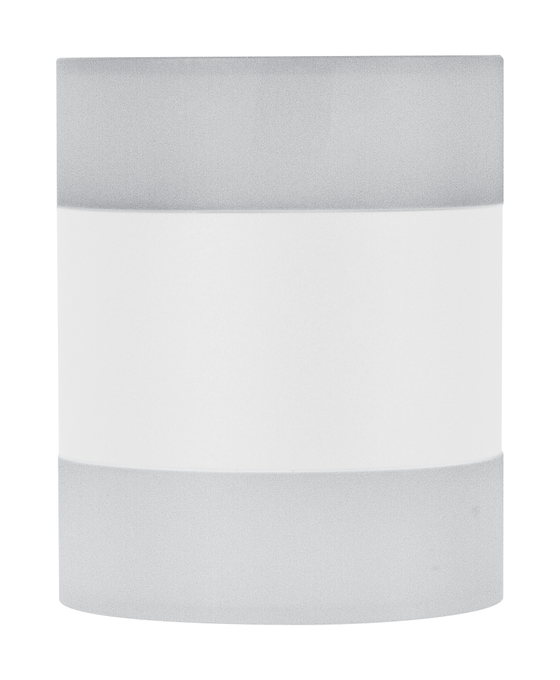

ENDURA Style UpDown Puck 13W White
4099854462115
Product benefits
- Easy and quick installation
- Energy-efficient thanks to LED technology
Areas of application
- Outdoor use (IP44)
- Building facades
- Entrance lighting
- Patios, balconies
Product features
- Bright and functional outdoor LED luminaires
- Die-cast aluminum housing
- Available in two housing colors
Equipment / Accessories
- Complete mounting and connecting accessories included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
Ambient temperature range
-20…+40 °C
Application environment
Outdoor
Beam angle
110 °
Body material
Aluminum
Color rendering index Ra
≥80
Color temperature
3000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Polymethylmethacrylate (PMMA)
Dimmable
No
GTIN
4099854462115
Height
110.00 mm
Housing color
White
Length
131.00 mm
Lifespan L70/B50 at 25 °C
30000 h 1)
Light color (designation)
Warm White
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
75 lm/W
Luminous flux
980 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
100
Max. number of luminaires per miniature circuit breaker C10
110
Max. number of luminaires per miniature circuit breaker C16
200
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting type
Surface
Nominal current
67.000 mA
Nominal voltage
220…240 V
Nominal wattage
12.50 W
Number of illuminants
empty
Number of switching cycles
15000
Operating mode
Electronic control gear (ECG)
Output current
300 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62471
RG0
Photobiological safety group acc. to EN62778
RG1
Power factor λ
> 0.5
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
630.00 g
Protection class
I
Protection class IK (shock resistance)
IK03
Replaceable light source
No
Standard deviation of color matching
< 6 sdcm
Temperature range at storage
-30…+70 °C
Total harmonic distortion
≤ 20 %
Total luminous flux of contained light sources
1450 lm
Type of connection
Screw terminal
Type of protection
IP44
Width
91.00 mm
With light source
Yes
