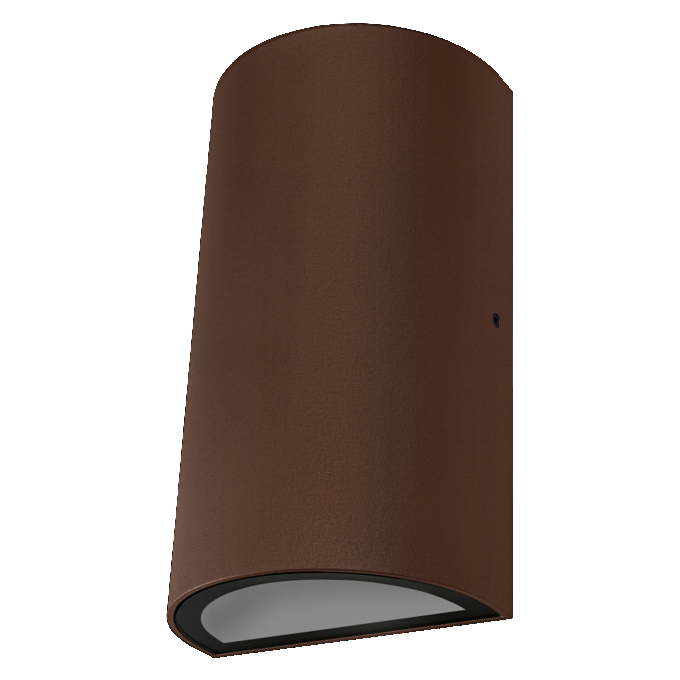

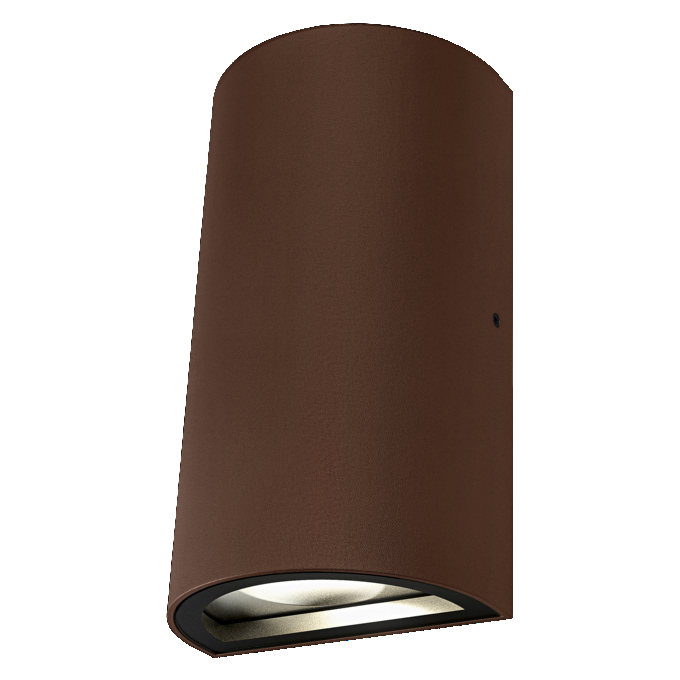

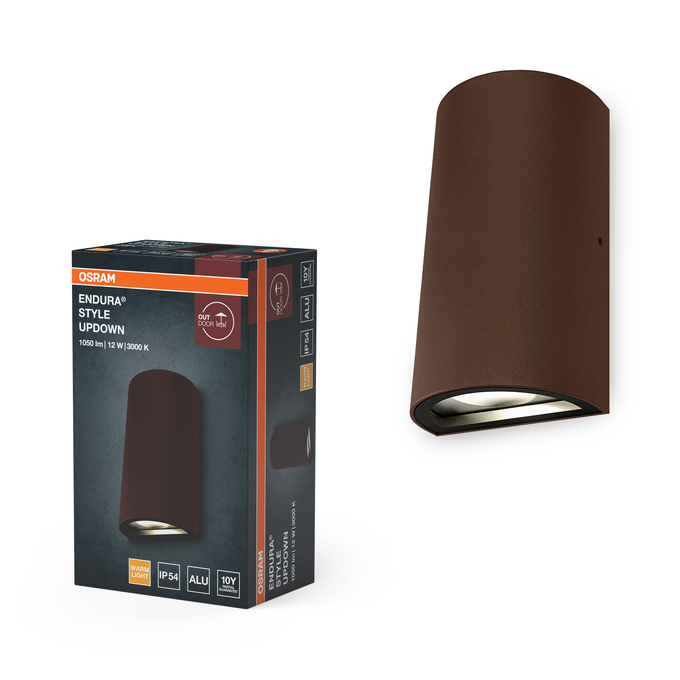

ENDURA® Style UpDown 12W Rusty
4099854711862
Product benefits
- Energy-efficient thanks to LED technology
- Easy and quick installation
Areas of application
- Outdoor use (IP44)
- Building facades
- Decorative illumination
Product features
- Very bright and functional outdoor LED luminaires
- Die-cast aluminum housing
- Available in two housing colors
Equipment / Accessories
- Complete mounting and connecting accessories included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
Ambient temperature range
-20…+40 °C
Application environment
Outdoor
Ball shot safe
No
Beam angle
100 °
Body material
Aluminum
Color rendering index Ra
≥80
Color temperature
3000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Cover material
Glass
Dimmable
No
Flickering metric (Pst LM)
< 1
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854711862
Height
160.00 mm
Housing color
Rust
Length
55.00 mm
Lifespan L70/B50 at 25 °C
30000 h 1)
Light color (designation)
Warm White
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
2-(2H-benzotriazol-2-yl)-4-(1,1,3,3-tetramethylbutyl)phenol (UV-329) (3147-75-9), Lead (7439-92-1), N,N-dimethylformami
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
58 lm/W
Luminous flux
700 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
26
Max. number of luminaires per miniature circuit breaker C10
22
Max. number of luminaires per miniature circuit breaker C16
35
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Wall
Mounting type
Surface
Nominal current
60 mA
Nominal voltage
220…240 V
Nominal wattage
12.00 W
Number of switching cycles
15000
Operating mode
Mains voltage
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62471
RG0
Photobiological safety group acc. to EN62778
RG1
Power factor λ
> 0.5
Product color
Rust
Product recyclability
Mostly recyclable product 1)
Product weight
480.00 g
Protection class
I
Protection class IK (shock resistance)
IK03
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
≤6 sdcm
Stroboscope effect metric (SVM)
< 0.4
Temperature range at storage
-20…+80 °C
Total harmonic distortion
70 %
Total luminous flux of contained light sources
1050 lm
Type of connection
Terminal, 3-Pole (L, N, PE)
Type of emergency operation test
None
Type of protection
IP54
Width
90.00 mm
With light source
Yes
