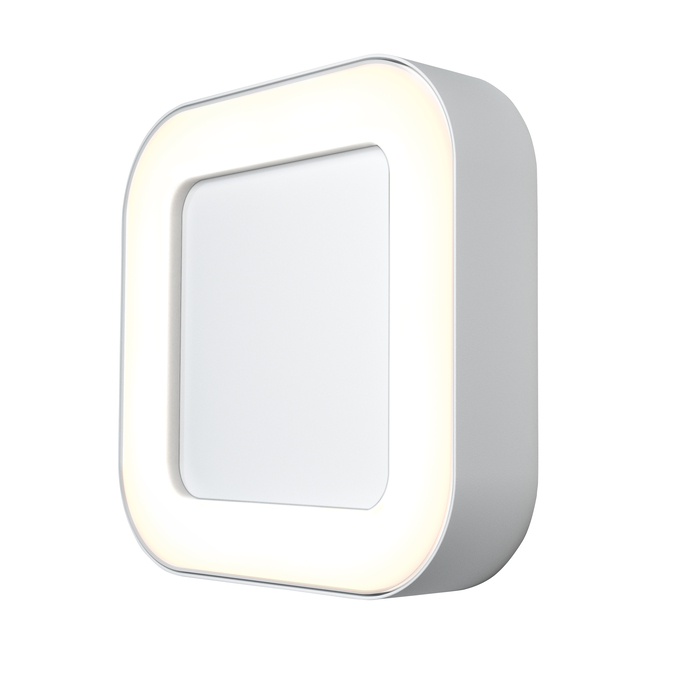

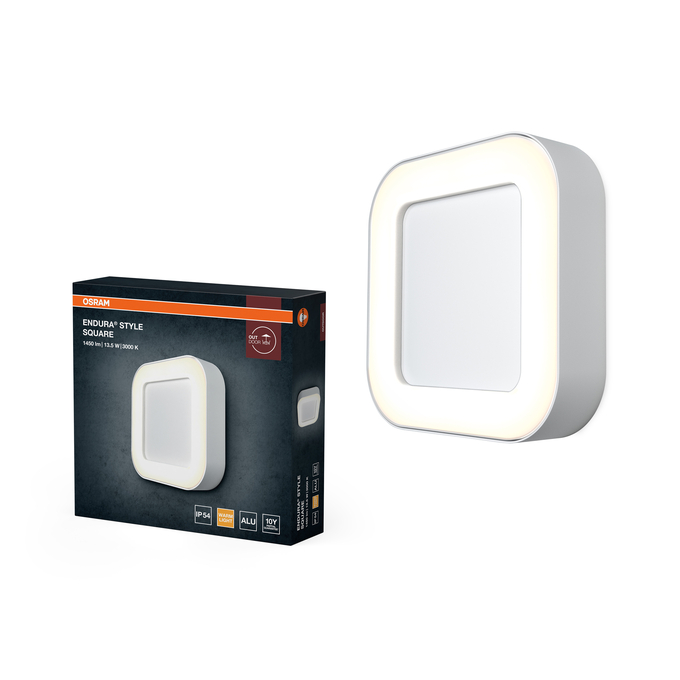

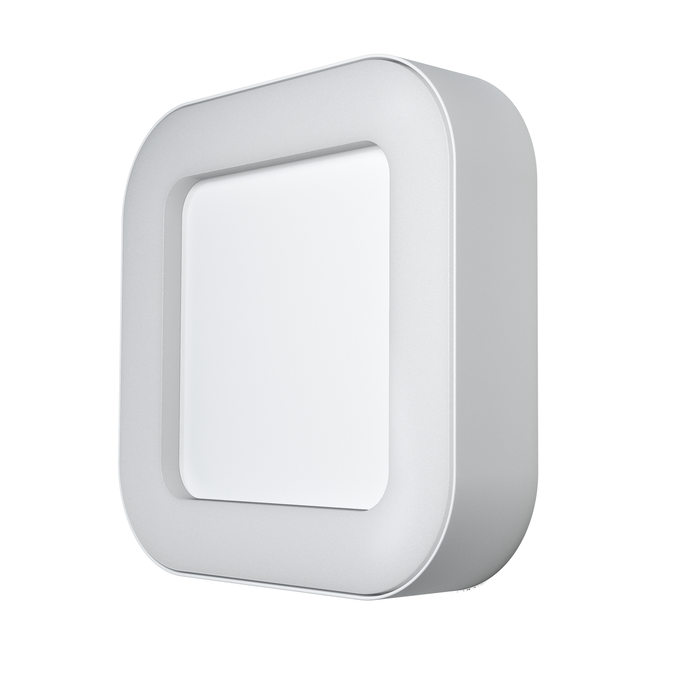

ENDURA Style Square 13.5W White
4099854461996
Product benefits
- Energy-efficient thanks to LED technology
- Easy and quick installation
Areas of application
- Outdoor use (IP54)
- Building facades
- Patios, balconies
Product features
- Bright and functional outdoor LED luminaires
- Die-cast aluminum housing
- Available in two housing colors
Equipment / Accessories
- Complete mounting and connecting accessories included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
Ambient temperature range
-20…+40 °C
Application environment
Outdoor
Beam angle
100 °
Body material
Aluminum
Color rendering index Ra
> 80
Color temperature
3000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Polycarbonate (PC)
Dimmable
No
GTIN
4099854461996
Height
45.00 mm
Housing color
White
Length
202.00 mm
Lifespan L70/B50 at 25 °C
30000 h 1)
Light color (designation)
Warm White
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
46 lm/W
Luminous flux
600 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
100
Max. number of luminaires per miniature circuit breaker C16
200
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting type
Surface
Nominal voltage
220…240 V
Nominal wattage
13.50 W
Number of illuminants
empty
Number of switching cycles
15000
Operating mode
Mains voltage
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
> 0.5
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
900.00 g
Protection class
I
Protection class IK (shock resistance)
IK07
Replaceable light source
No
Standard deviation of color matching
≤6 sdcm
Temperature range at storage
-25…+85 °C
Total harmonic distortion
≤ 20 %
Total luminous flux of contained light sources
1450 lm
Type of connection
Screw terminal
Type of protection
IP54
UGR
< 25
Width
202.00 mm
With light source
Yes
