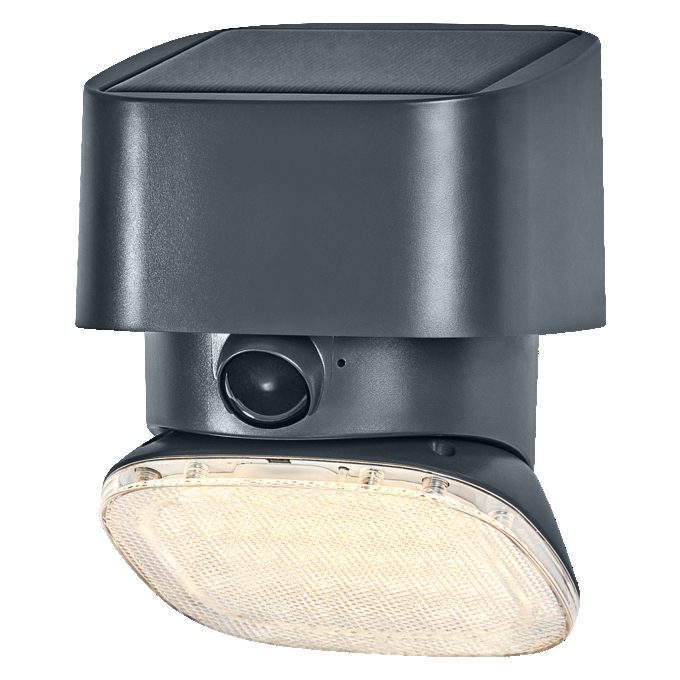

ENDURA® Style Solar Turn Sensor Wall IP54 Dark Grey
4099854415135
Product benefits
- Solar powered outdoor LED luminaire
- Adjustable luminaire head
- Easy and quick installation, independent from connection to power supply
- Long-term energy and cost savings
Areas of application
- Outdoor
- Entrance lighting
- Patios, balconies
- General illumination
- Facade and building illumination
Product features
- Sustainable energy, low environmental impact
- Bright light
- Highly efficient monocrystalline solar panel
- PIR motion detection and daylight sensor, matching with housing color
- Lower light smog, on-demand lighting (sensor version)
- Type of protection: IP54
- Operating time with fully charged battery: up to 140 days (depending on the work mode and conditions)
- 3 selectable operating modes (Dusk to Dawn): 1. 50 lm + 100 % light brightness after movement detection for 10 seconds; 2. 0 lm + 100 % light brightness after movement detection for 10 seconds; 3. 50 lm permanent light
- Energy-efficient thanks to LED technology
Equipment / Accessories
- Mounting accessories included
Safety advice
- If the battery compartment (if applicable) does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.
- Please avoid: Maximal ambient temperature: +35 °C. Replacement of a battery with an incorrect type that can defeat safeguard (for example, in the case of some lithium battery types). Altitude during operation: 2000 m. Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion.
Ambient temperature range
-10…+55 °C
Application environment
Outdoor
Ball shot safe
No
Battery charging time
15 h
Battery size [GMS]
Others
Beam angle
100 °
Body material
Polycarbonate (PC)|Acrylonitrile butadiene styrene (ABS)
Color rendering index Ra
> 80
Color temperature
3000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Polycarbonate (PC)
Detection range of motion sensor
3…5 m
Dimmable
Yes
Flickering metric (Pst LM)
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854415135
Height
149.00 mm
Housing color
Dark grey
Length
107.00 mm
Lifespan L70/B50 at 25 °C
54000 h 1)
Light color (designation)
Warm White
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
83 lm/W
Luminous flux
890 lm
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting type
Surface
Nominal capacity of battery
2000 mAh
Nominal current
2450.000 mA
Nominal voltage
4,2 V
Nominal voltage of battery
3.7 V
Nominal wattage
10.30 W
Number of included batteries
1
Number of switching cycles
100000
Operating mode
Battery
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Product color
Dark grey
Product recyclability
Mostly recyclable product 1)
Product weight
320.00 g
Protection class
III
Protection class IK (shock resistance)
IK04
Replaceable light source
No
Sensor detection angle
110 °
Sensor technology
Passive infrared (PIR)
Stroboscope effect metric (SVM)
Temperature range at storage
-20…+80 °C
Total luminous flux of contained light sources
1000 lm
Type of Battery
Lithium ion
Type of protection
IP54
Type of sensor
Lig
Width
115.00 mm
With light source
Yes
