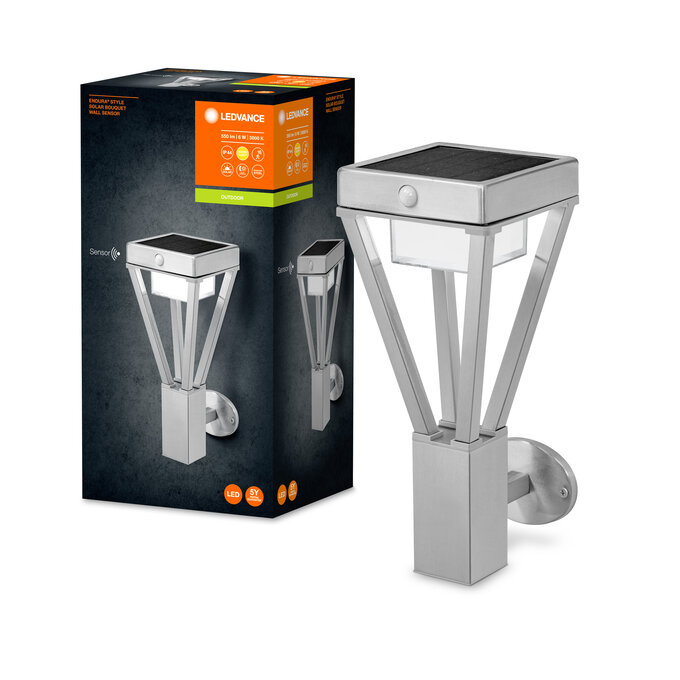

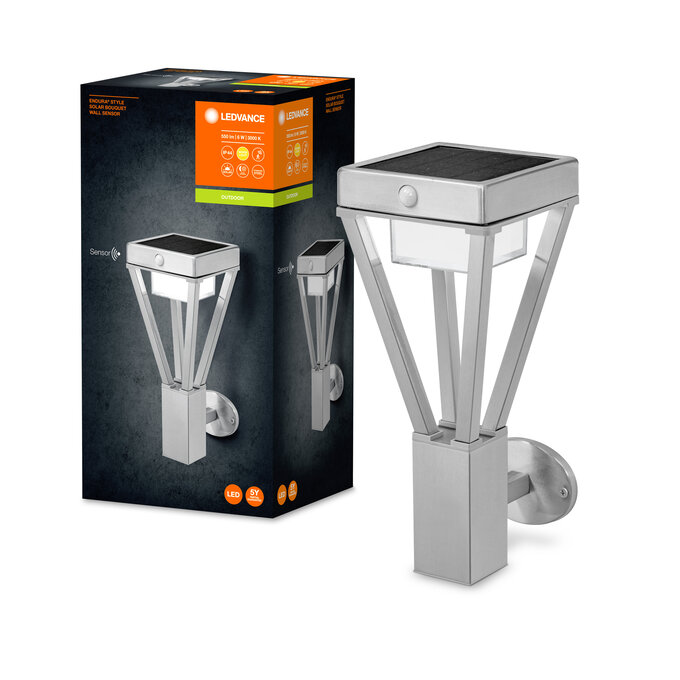

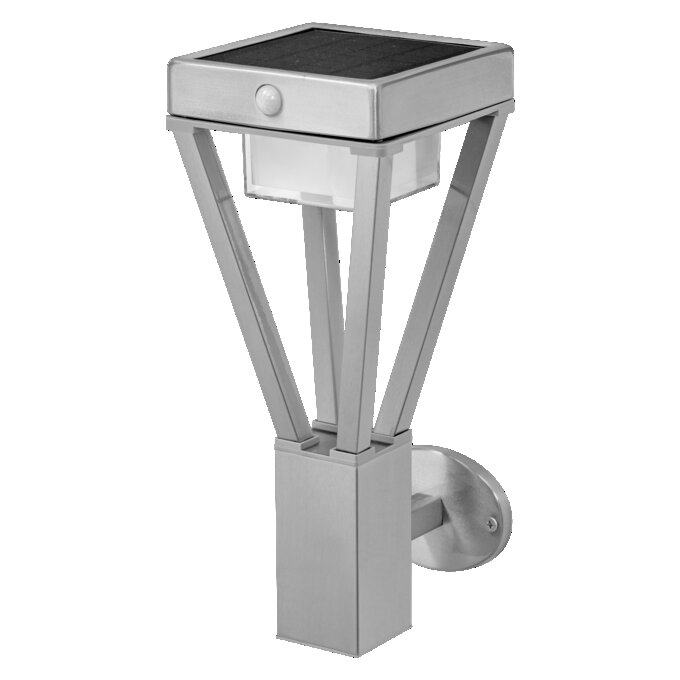

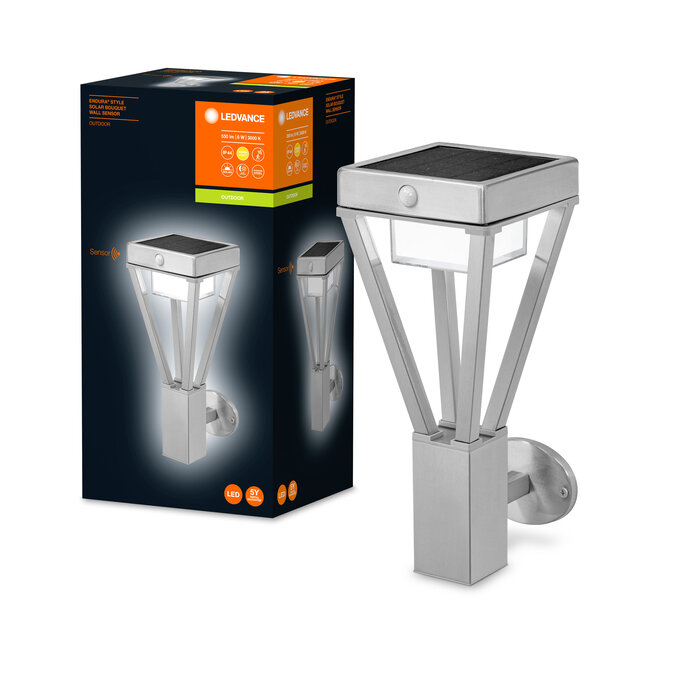

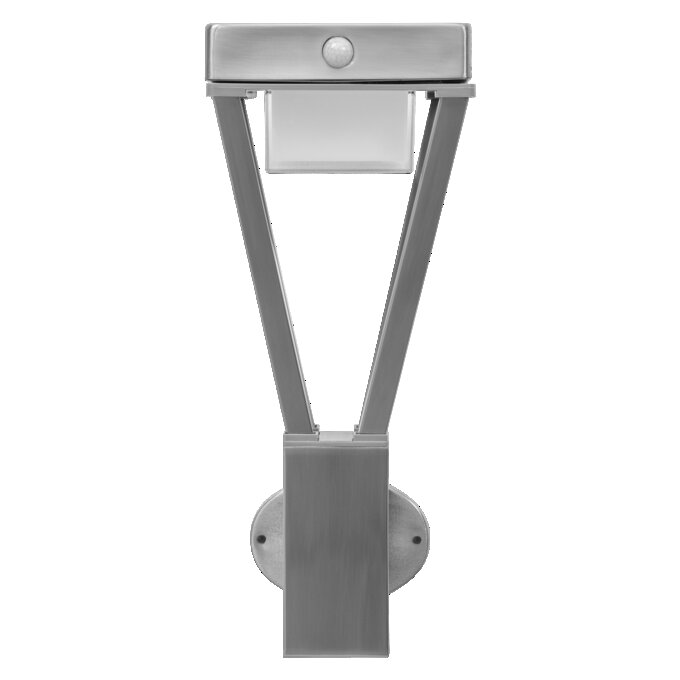

ENDURA Style Solar Bouquet Wall Sensor 6W Stainless Steel
4058075564503
Product benefits
- Demand based lighting and energy saving thanks to motion and daylight sensor
- Easy adjustment of daylight and motion detection via push switch
- Energy-efficient thanks to LED technology
- Easy and quick installation
Areas of application
- Outdoor use (IP44)
- Areas where no power supply is available
Product features
- Solar powered outdoor LED luminaire
- PIR motion detector and daylight sensor
- 3 operating modes selectable
- Operating mode 1: light continous on with 200 lumen (Max. 2.5 hours at full charge)
- Operating mode 2: light continous on with 75 lumen (Max. 8 hours at full charge), switches to 300 lumen when moving (Max. 100 times lit at full charge)
- Operating mode 3: light off, switches to 550 lumen when moving (max. 100 times lit at full charge)
- Battery charging via solar panel
- Battery technology: lithium-ion
- Stainless steel housing
Equipment / Accessories
- Complete mounting and connecting accessories included
Safety advice
- If the battery compartment (if applicable) does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.
- Please avoid: Maximal ambient temperature: +35 °C. Replacement of a battery with an incorrect type that can defeat safeguard (for example, in the case of some lithium battery types). Altitude during operation: 2000 m. Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion.
Ambient temperature range
-20…+40 °C
Application environment
Outdoor
Battery charging time
>12 h
Battery size [GMS]
ICR18650
Body material
Aluminum
Color rendering index Ra
> 80
Color temperature
3000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Cover material
Polycarbonate (PC)
Detection range of motion sensor
6 m
Detection threshold of daylight sensor
50…100 lx
Dimmable
No
Flickering metric (Pst LM)
≤1 %
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4058075564503
Height
365.00 mm
Housing color
Steel
Length
180.00 mm
Lifespan L70/B50 at 25 °C
25000 h 1)
Light color (designation)
Warm White
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead 7439-92-1
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
92 lm/W
Luminous flux
550 lm
Luminous flux in emergency operation mode
-
Luminous flux in maintained operation mode
-
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker C16
N/A
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Wall
Mounting type
Surface
Nominal capacity of battery
2200 mAh
Nominal voltage
3 V
Nominal voltage of battery
3.7 V
Nominal wattage
6.00 W
Number of illuminants
1
Number of included batteries
1
Number of switching cycles
12500
Operating mode
Battery
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62471
RG0
Photobiological safety group acc. to EN62778
RG0
Product color
Stainless steel
Product recyclability
Mostly recyclable product 1)
Product weight
1200.00 g
Protection class
III
Protection class IK (shock resistance)
IK03
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Sensor controlled switching time
15 s
Sensor detection angle
90 °
Sensor IP rating
IP44
Sensor technology
Passive infrared (PIR)
Standard deviation of color matching
< 6 sdcm
Stroboscope effect metric (SVM)
≤0.4
Temperature range at storage
-20…+70 °C
Type of Battery
Lithium ion
Type of emergency light operation
Non-maintained
Type of protection
IP44
Type of sensor
Lig
Width
150.00 mm
With light source
Yes
