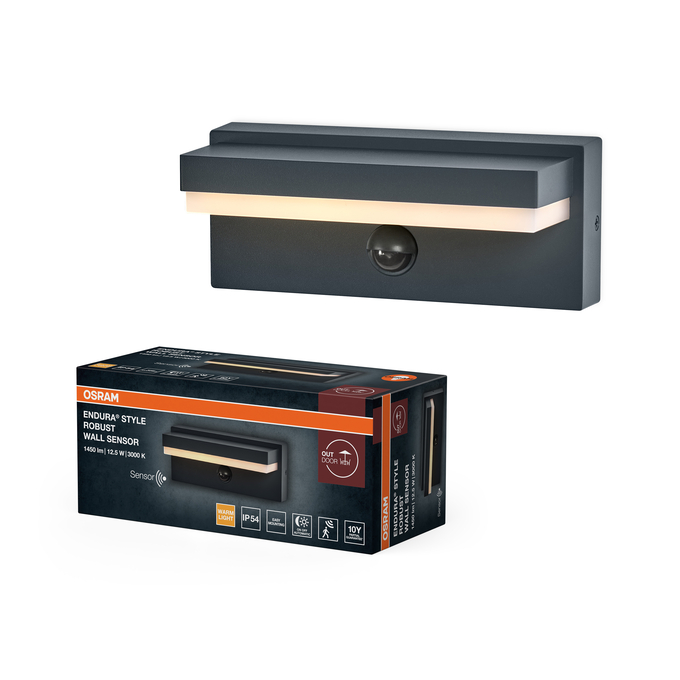

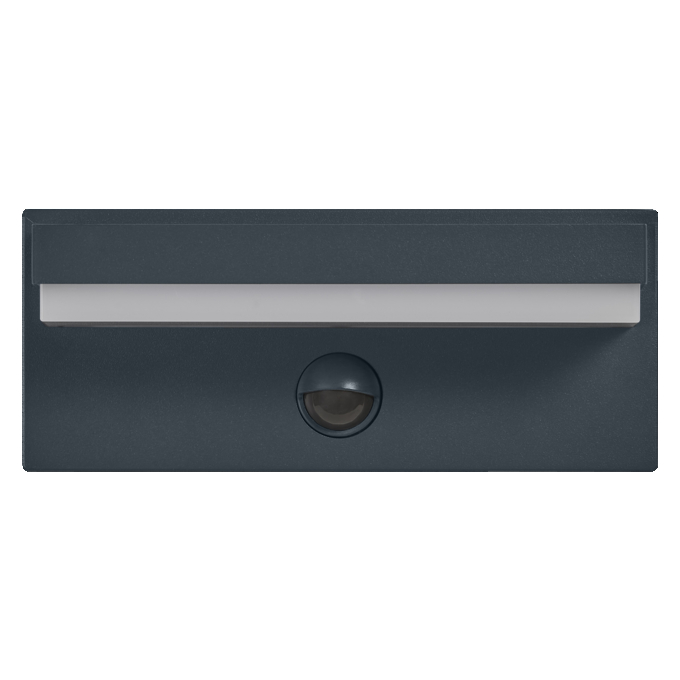

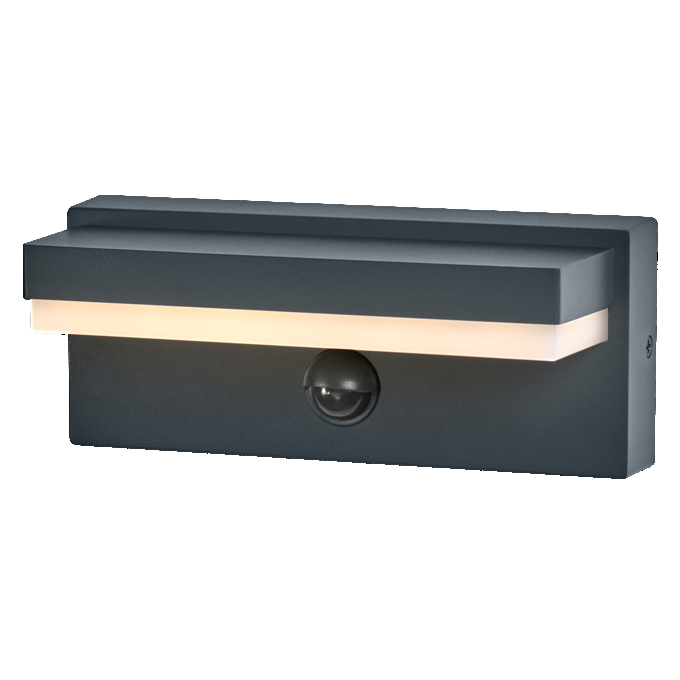

Endura Style Robust Wall Sensor IP54 Dark Grey
4099854415753
Product benefits
- Option with PIR motion detection and daylight sensor, matching with housing color available
- Energy-efficient thanks to LED technology
- Long-term energy and cost savings (sensor version)
Areas of application
- Outdoor
- Entrance lighting
- Patios, balconies
- General illumination
- Facade and building illumination
Product features
- Robust technical design
- Type of protection: IP54
- Housing material: aluminum
- Diffuser made of opal polycarbonate
- Easy and quick installation
- Lower light smog, on-demand lighting (sensor version)
Equipment / Accessories
- Complete mounting and connecting accessories included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
Ambient temperature range
-20…+40 °C
Application environment
Outdoor
Ball shot safe
No
Beam angle
90 °
Body material
Aluminum
Color rendering index Ra
> 80
Color temperature
3000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Polycarbonate (PC)
Detection range of motion sensor
4…10 m
Detection threshold of daylight sensor
30…10000 lx
Dimmable
No
Flickering metric (Pst LM)
≤1 %
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854415753
Height
86.00 mm
Housing color
Dark grey
Inrush current
0.068 A
Length
206.00 mm
Lifespan L70/B50 at 25 °C
50000 h 1)
Light color (designation)
Warm White
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
80 lm/W
Luminous flux
1000 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
100
Max. number of luminaires per miniature circuit breaker C10
110
Max. number of luminaires per miniature circuit breaker C16
200
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting type
Surface
Nominal current
70.000 mA
Nominal voltage
220…240 V
Nominal wattage
12.50 W
Number of switching cycles
50000
Operating mode
Mains voltage
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
> 0.70
Product color
Dark grey
Product recyclability
Mostly recyclable product 1)
Product weight
600.00 g
Protection class
I
Protection class IK (shock resistance)
IK06
Replaceable light source
No
Sensor controlled switching time
10 s…5 m
Sensor detection angle
100 °
Sensor technology
Passive infrared (PIR)
Standard deviation of color matching
< 6 sdcm
Stroboscope effect metric (SVM)
≤0.4
Temperature range at storage
-20…+80 °C
Total harmonic distortion
≤ 20 %
Total luminous flux of contained light sources
1450 lm
Type of connection
Terminal, 3-Pole (L, N, PE)
Type of protection
IP54
Type of sensor
Lig
Width
88.00 mm
With light source
Yes
