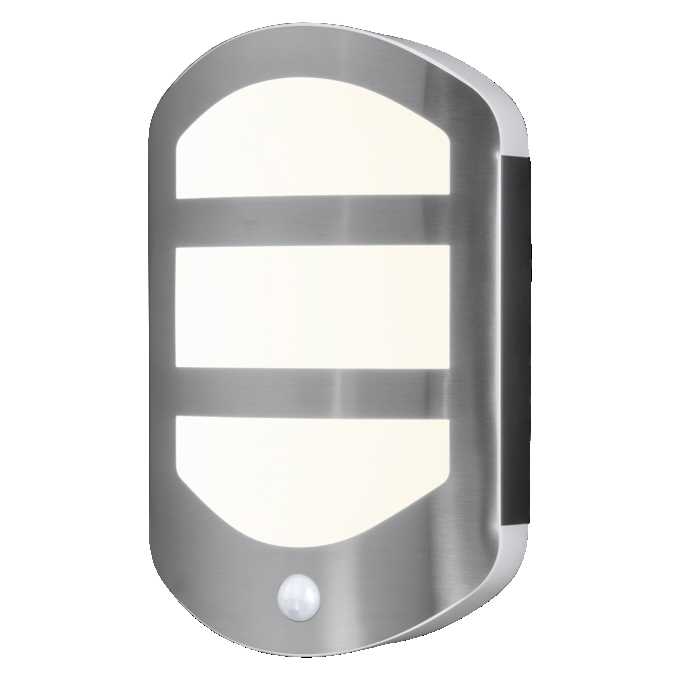

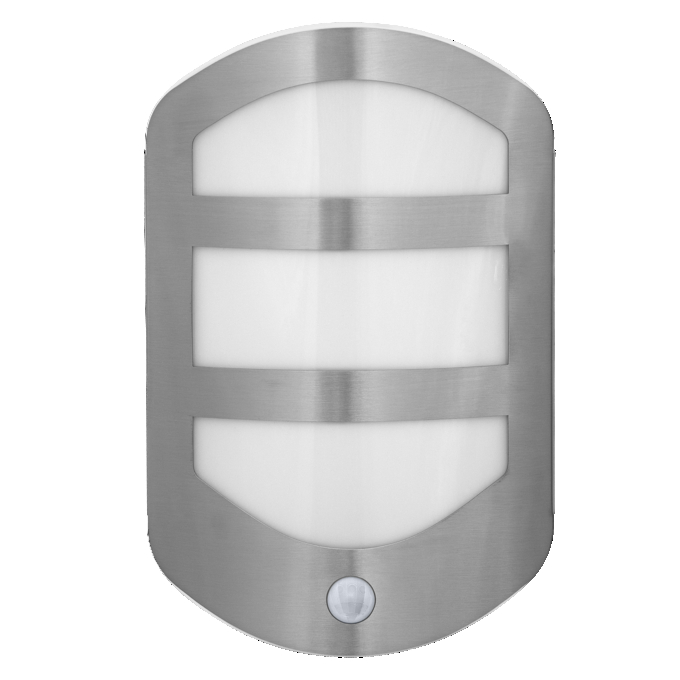

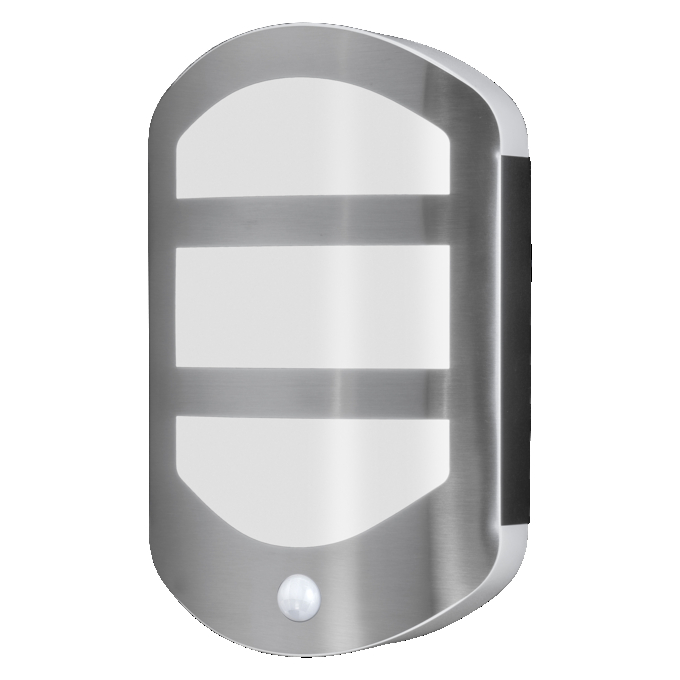

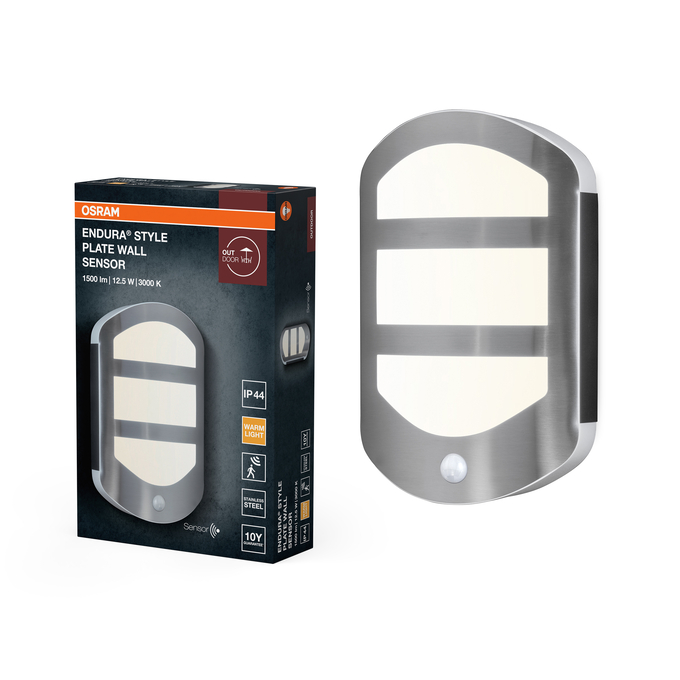

ENDURA Style Plate Wall Sensor 12.5W Stainless Steel
4099854461675
Product benefits
- Easy and quick installation
- Energy-efficient thanks to LED technology
Areas of application
- Building facades
- Entrance lighting
- Patios, balconies
Product features
- Bright and functional outdoor LED luminaires
- Available with and without motion sensor
- Stainless steel housing
- Type of protection: IP44
Equipment / Accessories
- Complete mounting and connecting accessories included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
Ambient temperature range
-20…+40 °C
Application environment
Outdoor
Ball shot safe
No
Beam angle
108 °
Body material
Steel
Color rendering index Ra
≥80
Color temperature
3000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Cover material
Polycarbonate (PC)
Detection range of motion sensor
5…8 m
Detection threshold of daylight sensor
10…2000 lx
Dimmable
No
Flickering metric (Pst LM)
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854461675
Height
283.00 mm
Housing color
Steel
Length
60.00 mm
Lifespan L70/B50 at 25 °C
25000 h 1)
Light color (designation)
Warm White
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
48 lm/W
Luminous flux
650 lm
Mains frequency
50…60 Hz
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Wall
Mounting type
Surface
Nominal current
65.000 mA
Nominal voltage
220…240 V
Nominal wattage
12.50 W
Number of switching cycles
12500
Operating mode
Mains voltage
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
≥0.5
Product color
Steel
Product recyclability
Mostly recyclable product 1)
Product weight
680.00 g
Protection class
II
Replaceable light source
No
Sensor controlled switching time
10 s…4 min
Sensor detection angle
100 °
Sensor technology
Passive infrared (PIR)
Standard deviation of color matching
< 6 sdcm
Stroboscope effect metric (SVM)
Total luminous flux of contained light sources
1500 lm
Type of connection
Terminal, 2-Pole (L, N)
Type of protection
IP44
Type of sensor
Lig
Width
180.00 mm
With light source
Yes
