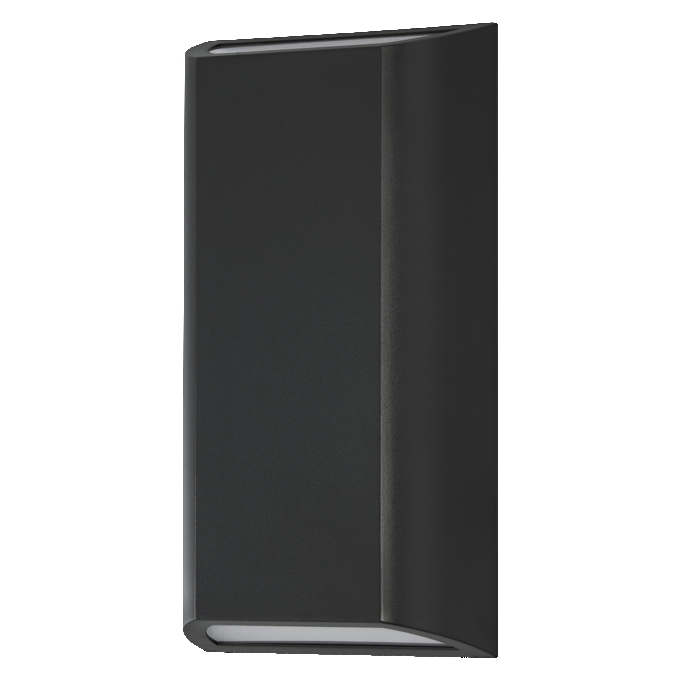

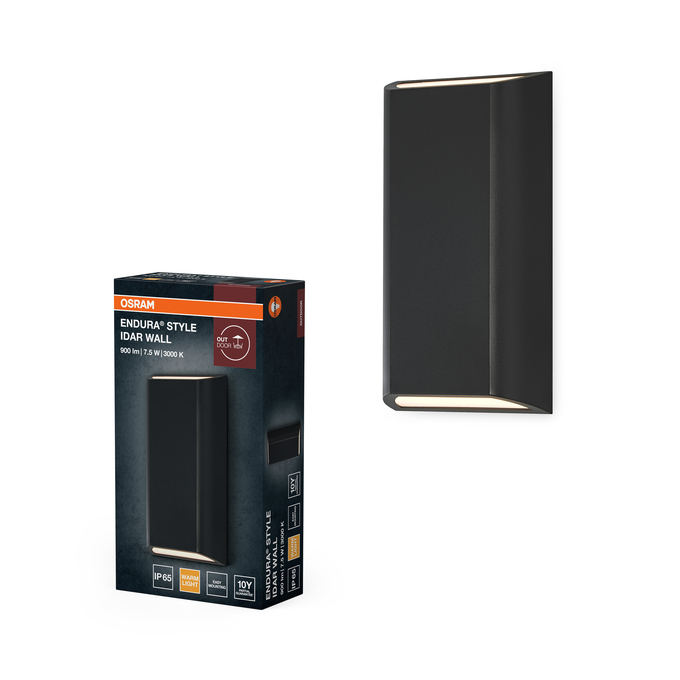

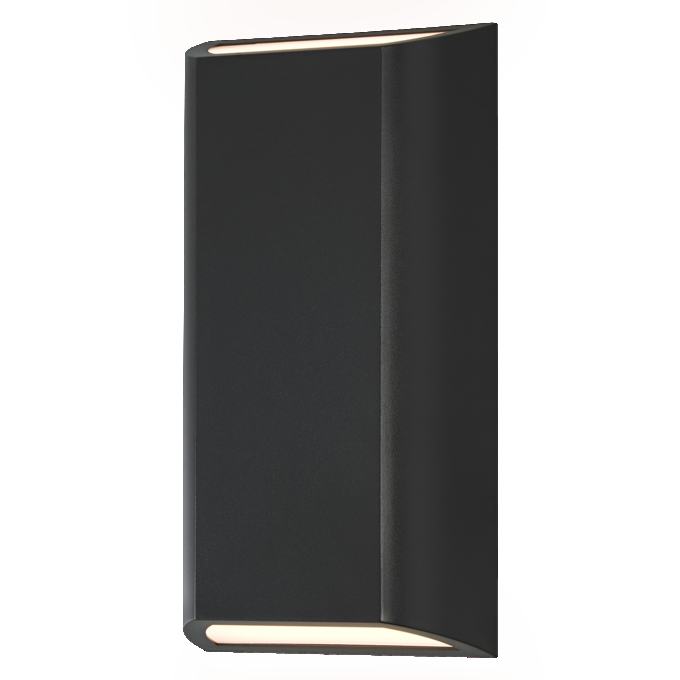

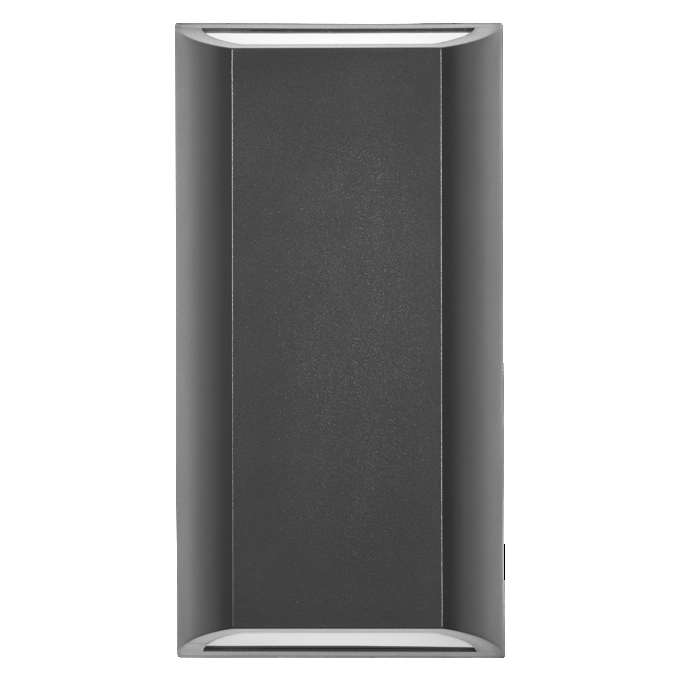

Endura Style IP65 Wall Idar Dark Grey
4099854444470
Product benefits
- Easy and quick installation
Areas of application
- Decorative outdoor lighting
- Building facades
- Entrance lighting
- Patios, balconies
Product features
- Durable housing material
- Type of protection: IP65
Equipment / Accessories
- Complete mounting and connecting accessories included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
Ambient temperature range
-20…+45 °C
Application environment
Outdoor
Ball shot safe
No
Beam angle
103 °
Body material
Polycarbonate (PC)
Color rendering index Ra
80
Color temperature
3000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Cover material
Polycarbonate (PC)
Dimmable
No
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854444470
Height
220.00 mm
Housing color
Dark grey
Length
113.00 mm
Lifespan L70/B50 at 25 °C
30000 h 1)
Light color (designation)
Warm White
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
45 lm/W
Luminous flux
340 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
63
Max. number of luminaires per miniature circuit breaker C10
53
Max. number of luminaires per miniature circuit breaker C16
86
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting type
Surface
Nominal current
37.000 mA
Nominal voltage
220…240 V
Nominal wattage
7.50 W
Number of switching cycles
15000
Operating mode
Mains voltage
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Power factor λ
> 0.5
Product color
Dark grey
Product recyclability
Mostly recyclable product 1)
Product weight
385.00 g
Protection class
II
Protection class IK (shock resistance)
IK06
Replaceable light source
No
Standard deviation of color matching
6 sdcm
Total harmonic distortion
< 70 %
Total luminous flux of contained light sources
900 lm
Type of connection
Terminal, 2-Pole (L, N)
Type of protection
IP65
Width
51.00 mm
With light source
Yes
