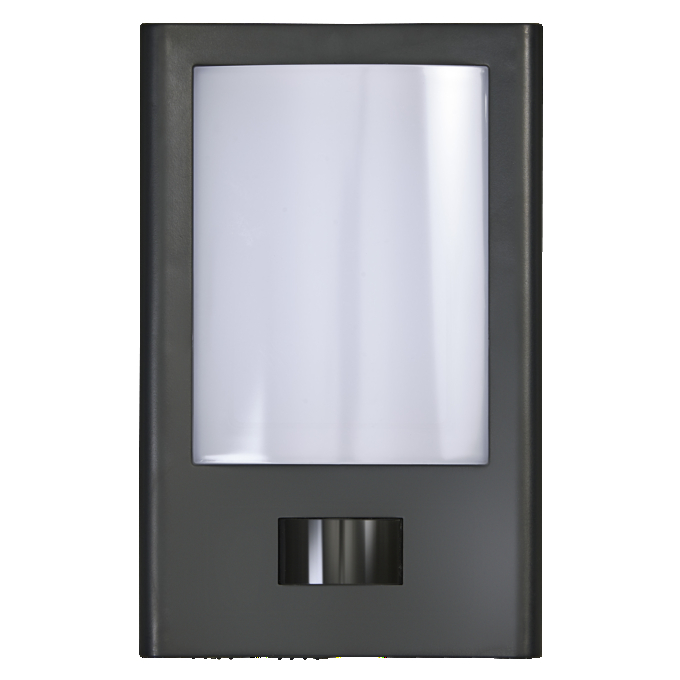

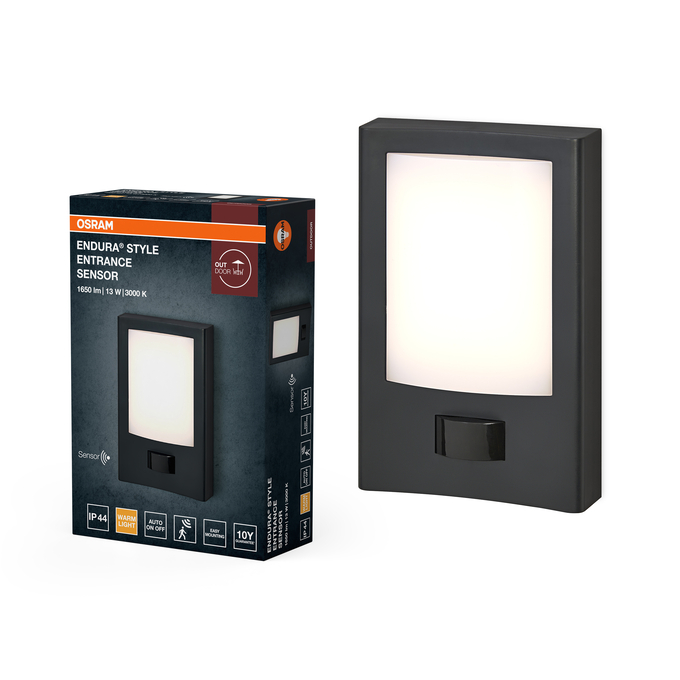

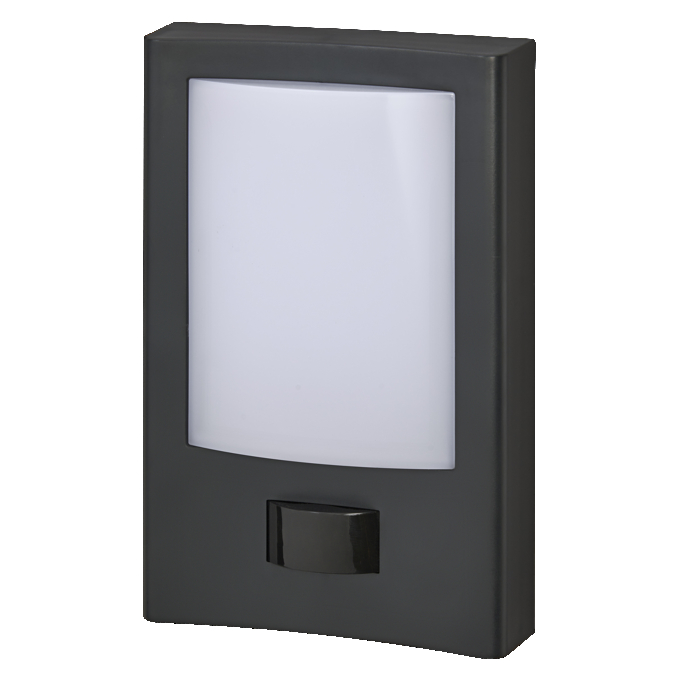

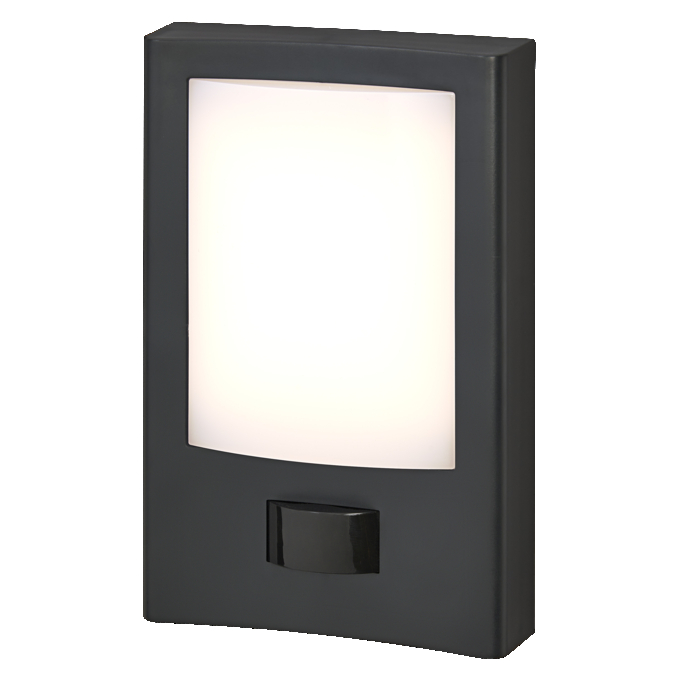

Endura Style Entrance Sensor Dark Grey
4099854444432
Product benefits
- Easy and quick installation
- High-quality materials
Areas of application
- Garages
- Entrance areas
Product features
- Option with PIR motion detection and daylight sensor, matching with housing color available
- Type of protection: IP44
- ABS housing
- Polycarbonate (PC) diffuser
Equipment / Accessories
- Complete mounting and connecting accessories included
- Mounting screws and dowels included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
Adjustable
No
Ambient temperature range
-20…+40 °C
Application environment
Outdoor
Ball shot safe
No
Beam angle
110 °
Body material
Aluminium|Acrylonitrile butadiene styrene (ABS)
Color rendering index Ra
> 80
Color temperature
3000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Polycarbonate (PC)
Dimmable
No
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854444432
Height
235.00 mm
Housing color
Dark grey
Length
150.00 mm
Lifespan L70/B50 at 25 °C
50000 h 1)
Light color (designation)
Warm White
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
70 lm/W
Luminous flux
900 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
100
Max. number of luminaires per miniature circuit breaker C16
200
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting type
Surface
Nominal current
65.000 mA
Nominal voltage
220…240 V
Nominal wattage
13.00 W
Number of switching cycles
100000
Operating mode
Mains voltage
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
> 0.80
Product color
Dark grey
Product recyclability
Mostly recyclable product 1)
Product weight
640.00 g
Protection class
I
Protection class IK (shock resistance)
IK05
Replaceable light source
No
Sensor detection angle
100 °
Sensor technology
Passive infrared (PIR)
Standard deviation of color matching
≤6 sdcm
Total harmonic distortion
≤ 20 %
Total luminous flux of contained light sources
1650 lm
Type of connection
Terminal, 3-Pole (L, N, PE)
Type of protection
IP44
Type of sensor
P
Width
62.00 mm
With light source
Yes
