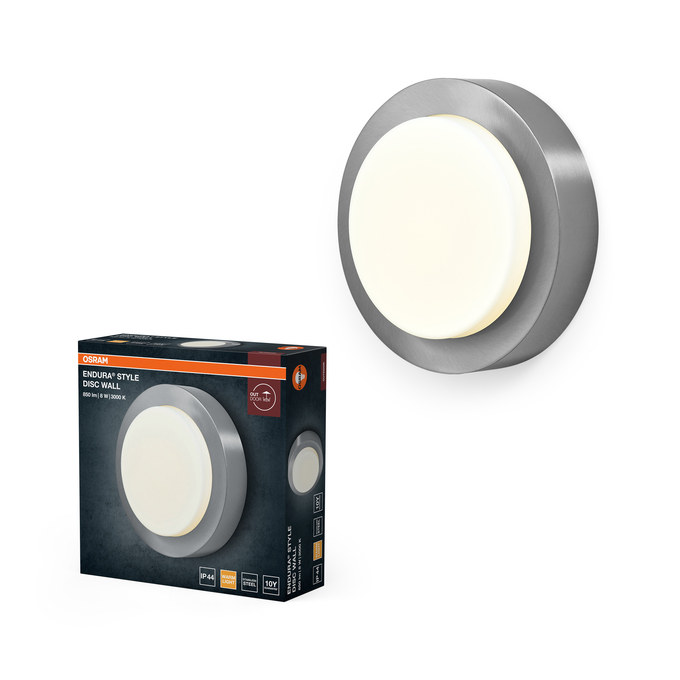

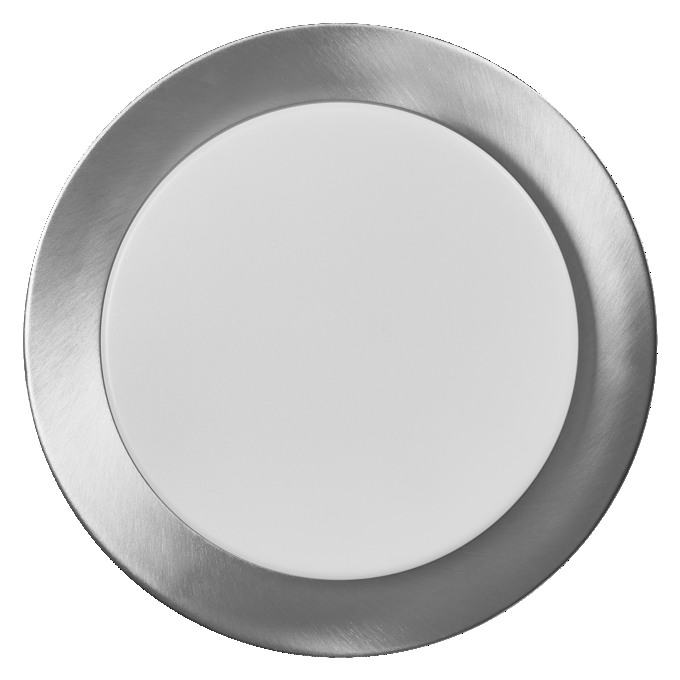

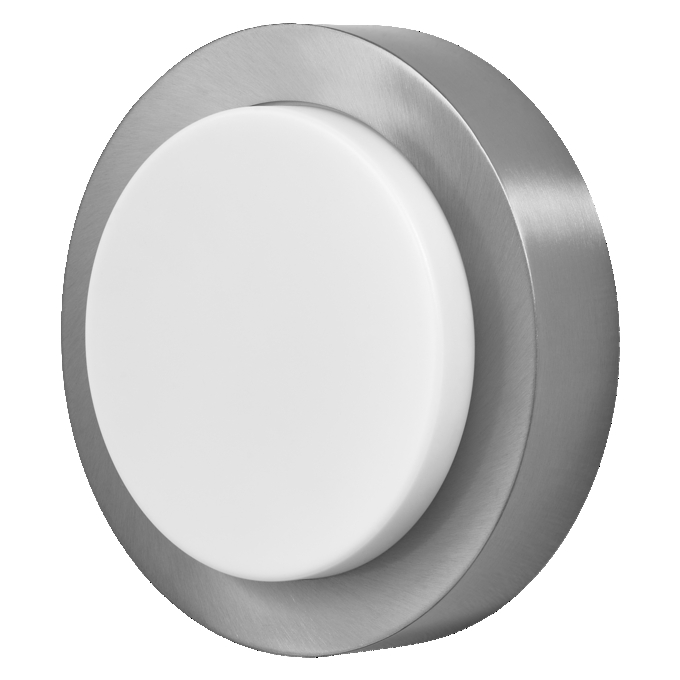

ENDURA Style Disc Wall 8W
4099854461453
Product benefits
- Easy and quick installation
- Energy-efficient thanks to LED technology
Areas of application
- Building facades
- Entrance lighting
- Patios, balconies
Product features
- Bright and functional outdoor LED luminaires
- Available with and without motion sensor
- Stainless steel housing
- Type of protection: IP44
Equipment / Accessories
- Complete mounting and connecting accessories included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
Ambient temperature range
-20…+40 °C
Application environment
Outdoor
Body material
Stainless steel
Color rendering index Ra
≥80
Color temperature
3000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Cover material
Polycarbonate (PC)
Diameter
200.00 mm
Dimmable
No
GTIN
4099854461453
Height
60.00 mm
Housing color
Steel
Lifespan L70/B50 at 25 °C
25000 h 1)
Light color (designation)
Warm White
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
46 lm/W
Luminous flux
370 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
188
Max. number of luminaires per miniature circuit breaker C10
186
Max. number of luminaires per miniature circuit breaker C16
298
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting type
Surface
Nominal current
56.000 mA
Nominal voltage
220…240 V
Nominal wattage
8.00 W
Number of switching cycles
12500
Operating mode
Mains voltage
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62471
RG0
Photobiological safety group acc. to EN62778
RG0
Power factor λ
≥0.5
Product color
Steel
Product recyclability
Mostly recyclable product 1)
Product weight
646.00 g
Protection class
II
Protection class IK (shock resistance)
IK03
Replaceable light source
No
Standard deviation of color matching
≤6 sdcm
Temperature range at storage
-20…+80 °C
Total harmonic distortion
< 20 %
Total luminous flux of contained light sources
850 lm
Type of connection
Terminal, 3-Pole (L, N, PE)
Type of protection
IP44
With light source
Yes
