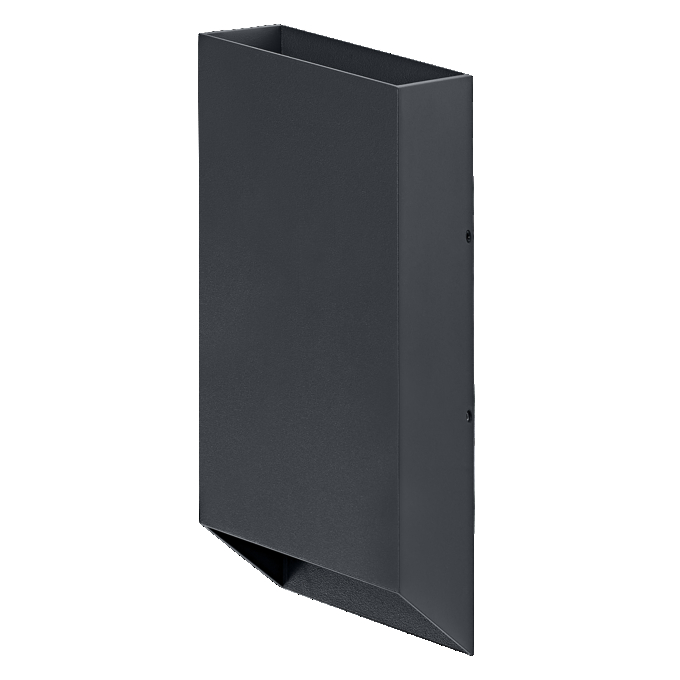

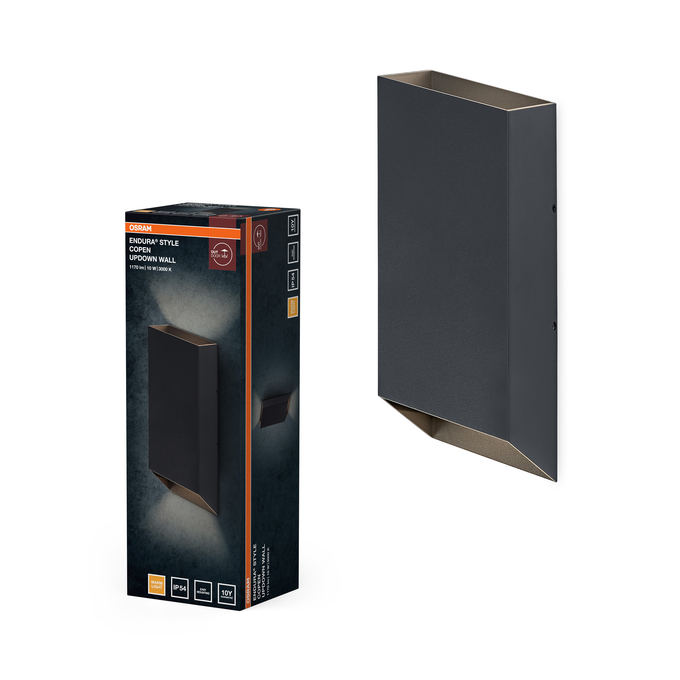

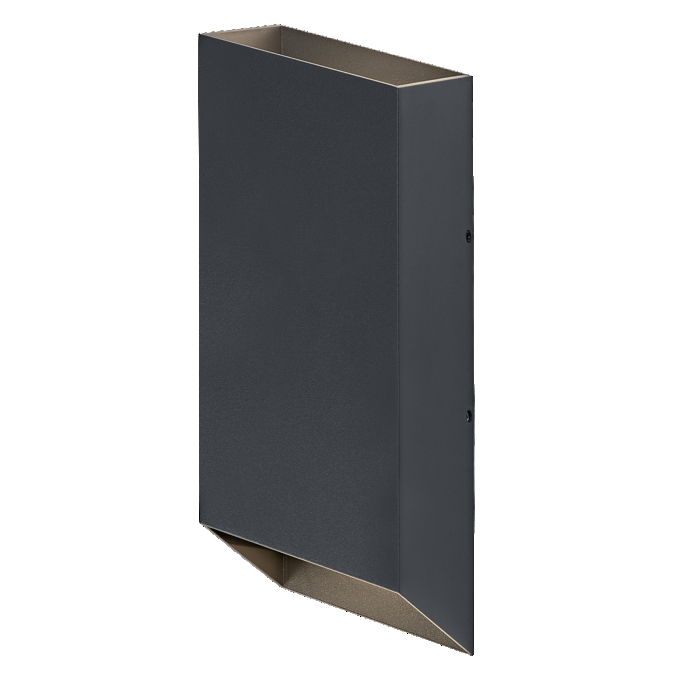

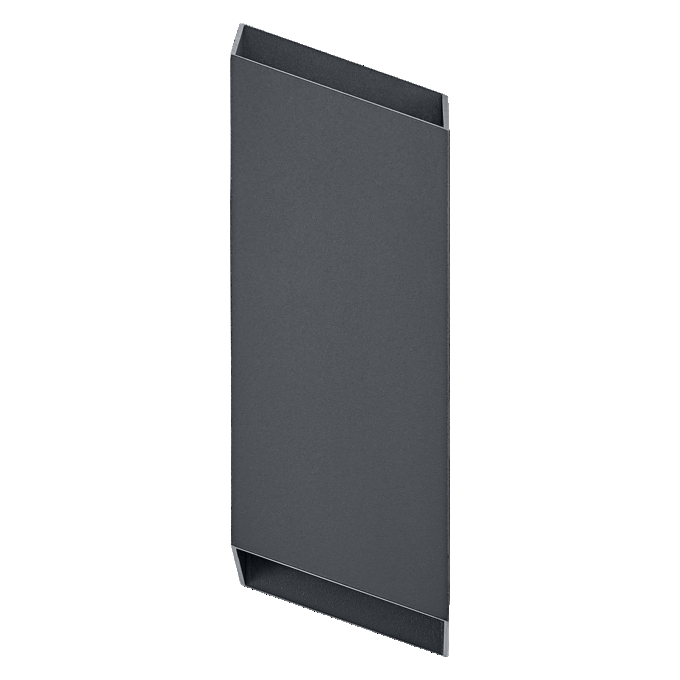

ENDURA® Style Copen Updown Wall 10W IP54 Dark Grey
4099854709425
Product benefits
- Energy-efficient thanks to LED technology
- Easy and quick installation
Areas of application
- Outdoor
- Decorative illumination
- Facade and building illumination
- Entrance lighting
- Patios, balconies
- General illumination
Product features
- Indirect illumination
- Die-cast aluminum housing
- Anthracite housing color
- Glass diffuser
- Type of protection: IP54
Equipment / Accessories
- Complete mounting and connecting accessories included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
Ambient temperature range
-20…+45 °C
Application environment
Outdoor
Ball shot safe
No
Beam angle
220 °
Body material
Aluminum
Color rendering index Ra
> 80
Color temperature
3000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Glass
Dimmable
No
Flickering metric (Pst LM)
< 1
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854709425
Height
257.00 mm
Housing color
Dark grey
Length
84.00 mm
Lifespan L70/B50 at 25 °C
50000 h 1)
Light color (designation)
Warm White
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminous efficacy
69 lm/W
Luminous flux
690 lm
Mains frequency
50 Hz
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Wall
Mounting type
Surface
Nominal current
57.000 mA
Nominal voltage
220…240 V
Nominal wattage
10.00 W
Number of switching cycles
12500
Operating mode
Mains voltage
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Power factor λ
> 0.70
Product color
Dark grey
Product recyclability
Mostly recyclable product 1)
Product weight
790.00 g
Protection class
I
Protection class IK (shock resistance)
IK03
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
< 6 sdcm
Stroboscope effect metric (SVM)
< 0.4
Temperature range at storage
-20…+80 °C
Total harmonic distortion
> 70 %
Total luminous flux of contained light sources
1170 lm
Type of connection
Terminal, 3-Pole (L, N, PE)
Type of protection
IP54
Width
73.00 mm
With light source
Yes
