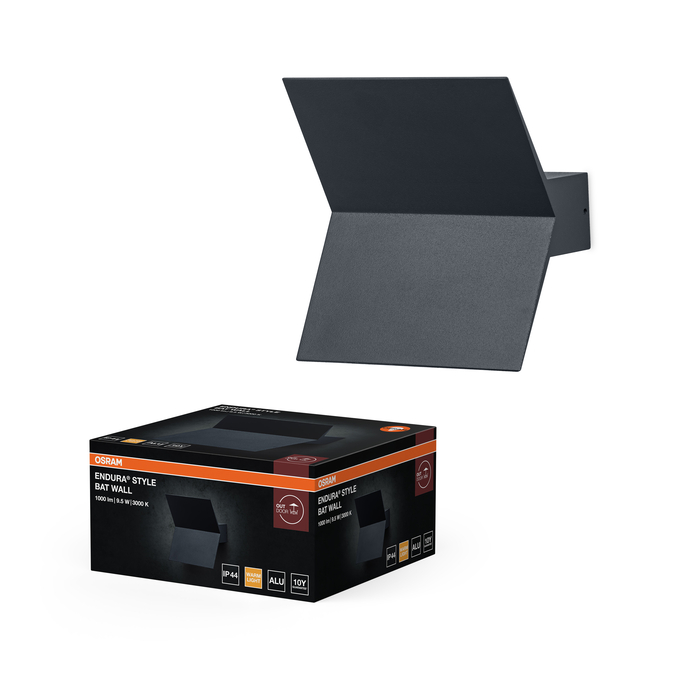

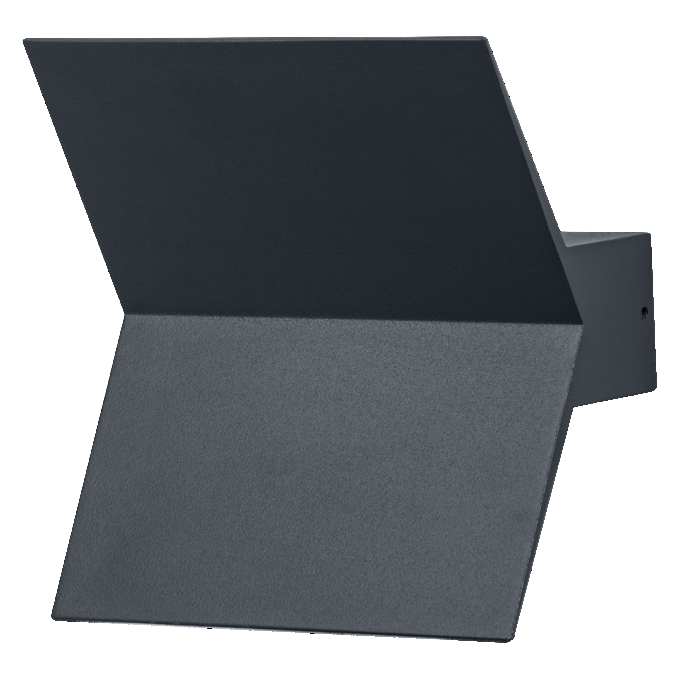

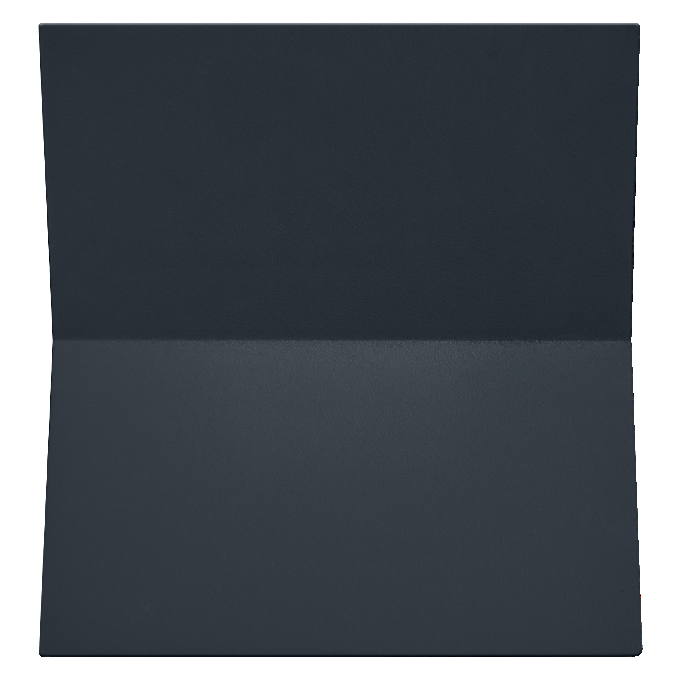

ENDURA Style Bat Wall
4099854461361
Product benefits
- Easy and quick installation
- Energy-efficient thanks to LED technology
Areas of application
- Building facades
- Entrance lighting
- Patios, balconies
Product features
- Bright and functional outdoor LED luminaires
- Aluminium housing
- Type of protection: IP44
Equipment / Accessories
- Complete mounting and connecting accessories included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
Ambient temperature range
-20…+40 °C
Application environment
Outdoor
Beam angle
120 °
Body material
Aluminum
Color rendering index Ra
≥80
Color temperature
3000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Cover material
Polycarbonate (PC)
Dimmable
No
GTIN
4099854461361
Height
84.00 mm
Housing color
Dark grey
Length
177.00 mm
Lifespan L70/B50 at 25 °C
25000 h 1)
Light color (designation)
Warm White
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
61 lm/W
Luminous flux
580 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
64
Max. number of luminaires per miniature circuit breaker C10
63
Max. number of luminaires per miniature circuit breaker C16
102
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting type
Surface
Nominal voltage
220…240 V
Nominal wattage
9.50 W
Number of switching cycles
12500
Operating mode
Mains voltage
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62471
RG0
Photobiological safety group acc. to EN62778
RG0
Power factor λ
≥0.5
Product color
Dark grey
Product recyclability
Mostly recyclable product 1)
Product weight
673.00 g
Protection class
I
Protection class IK (shock resistance)
IK03
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
≤6 sdcm
Temperature range at storage
-20…+80 °C
Total harmonic distortion
< 20 %
Total luminous flux of contained light sources
1000 lm
Type of connection
Terminal, 3-Pole (L, N, PE)
Type of protection
IP44
Width
169.00 mm
With light source
Yes
