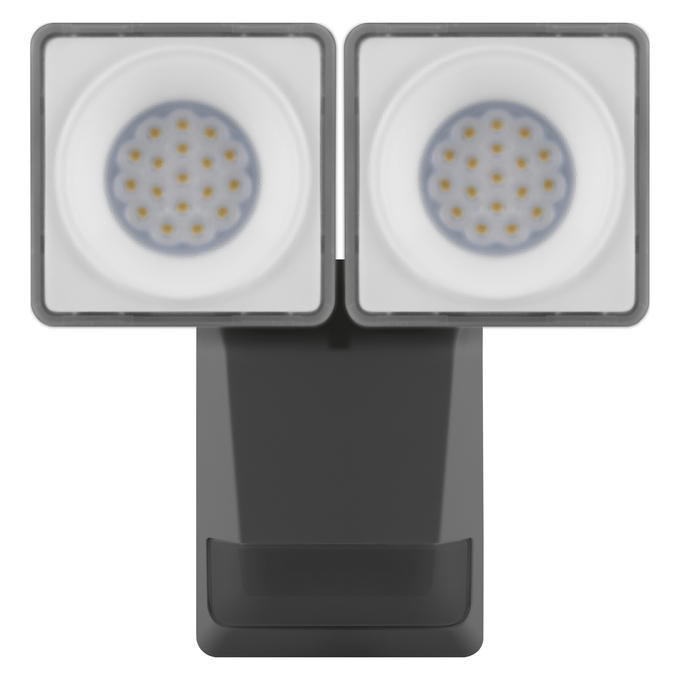

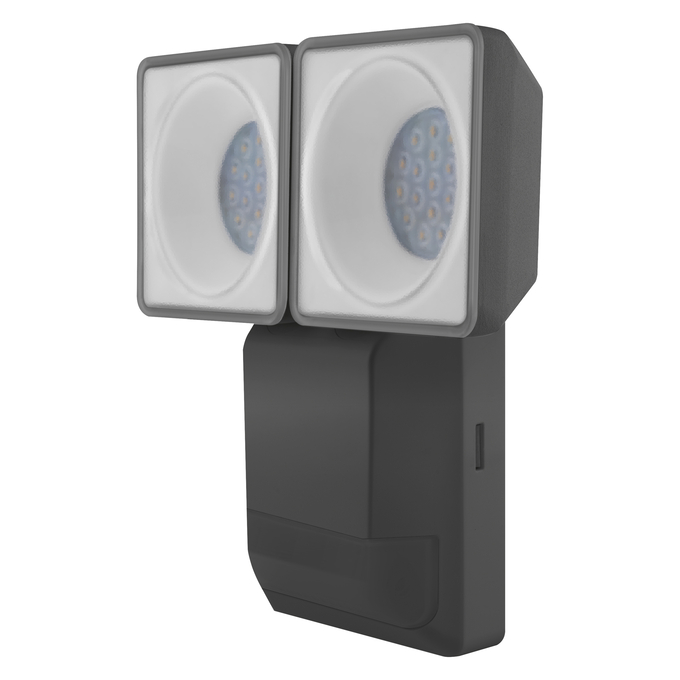

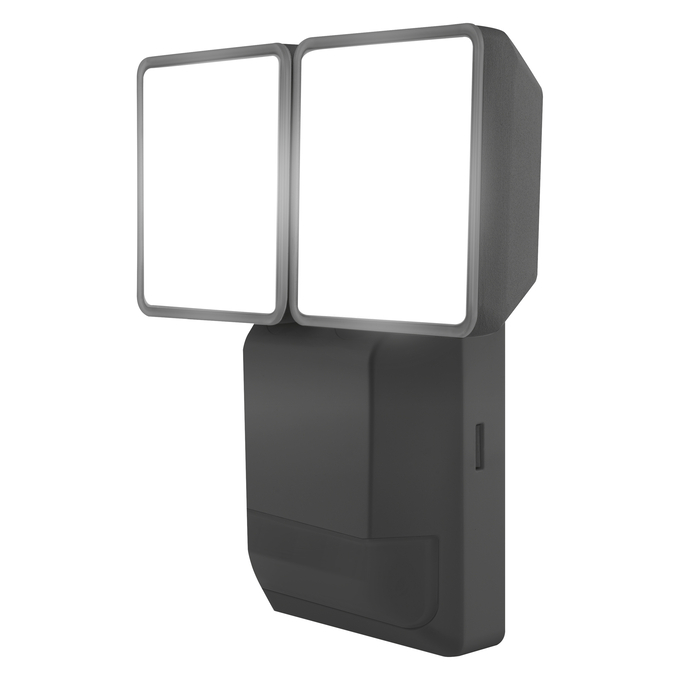

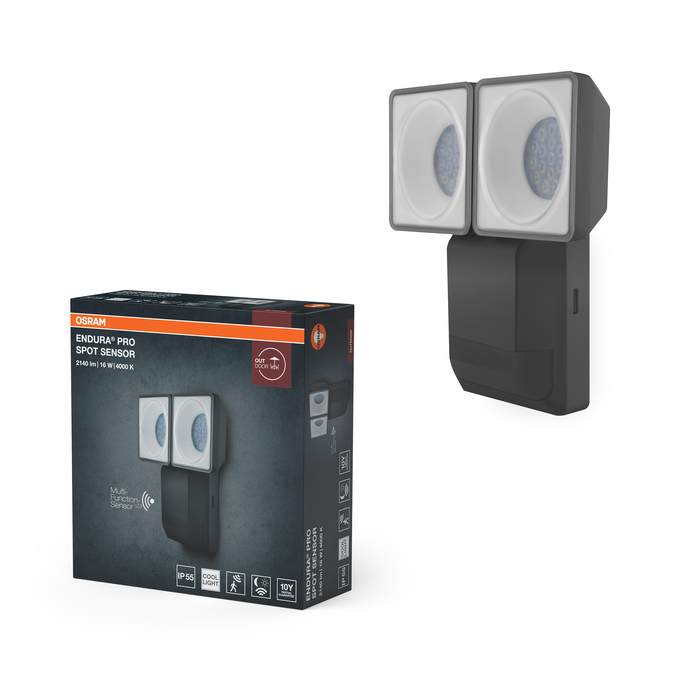

ENDURA PRO Spot Sensor 16W 4000K IP55 Dark Gray
4099854451812
Product benefits
- Small spotlight for precise illumination
- Lighting according to requirements due to adjustable luminaire head
- Easy and quick installation
Areas of application
- Outdoor
- Entrance areas
- Arcade passage
Product features
- 4 operating modes selectable (light 6h continous on, standby, switch-on by movement or dusk)
- Adjustable luminaire head
- Type of protection: IP55
- Impact resistance: IK05
- Protection class: II
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
Ambient temperature range
-20…+40 °C
Application environment
Outdoor
Beam angle
50 °
Body material
Polycarbonate (PC)
Color rendering index Ra
≥80
Color temperature
4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Polycarbonate (PC)
Dimmable
No
GTIN
4099854451812
Height
187.00 mm
Housing color
Dark grey
Inrush current time Th50
50 µs
Length
177.00 mm
Lifespan L70/B50 at 25 °C
30000 h 1)
Light color (designation)
Cool White
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
86 lm/W
Luminous flux
1500 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
94
Max. number of luminaires per miniature circuit breaker C10
75
Max. number of luminaires per miniature circuit breaker C16
120
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting type
Surface
Nominal current
86.000 mA
Nominal voltage
220…240 V
Nominal wattage
16.00 W
Number of switching cycles
12500
Operating mode
Mains voltage
Output current
220…280 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62471
RG1
Photobiological safety group acc. to EN62778
RG1
Power factor λ
> 0.85
Product color
Dark grey
Product recyclability
Mostly recyclable product 1)
Product weight
415.00 g
Protection class
II
Protection class IK (shock resistance)
IK05
Replaceable light source
No
Sensor detection angle
180 °
Sensor technology
Passive infrared (PIR)
Standard deviation of color matching
≤6 sdcm
Temperature range at storage
-25…+70 °C
Total luminous flux of contained light sources
2140 lm
Type of connection
Terminal, 3-Pole (L, N, PE)
Type of protection
IP55
Type of sensor
Lig
Width
58.00 mm
With light source
Yes
