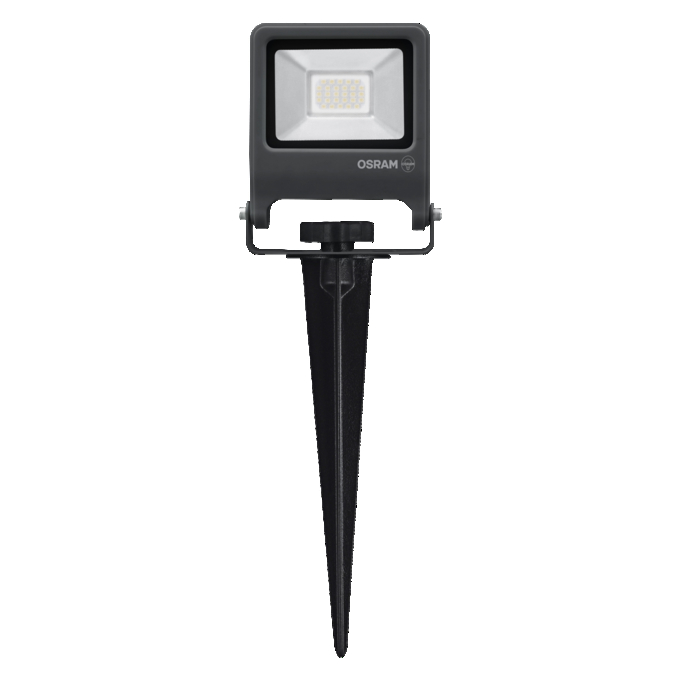

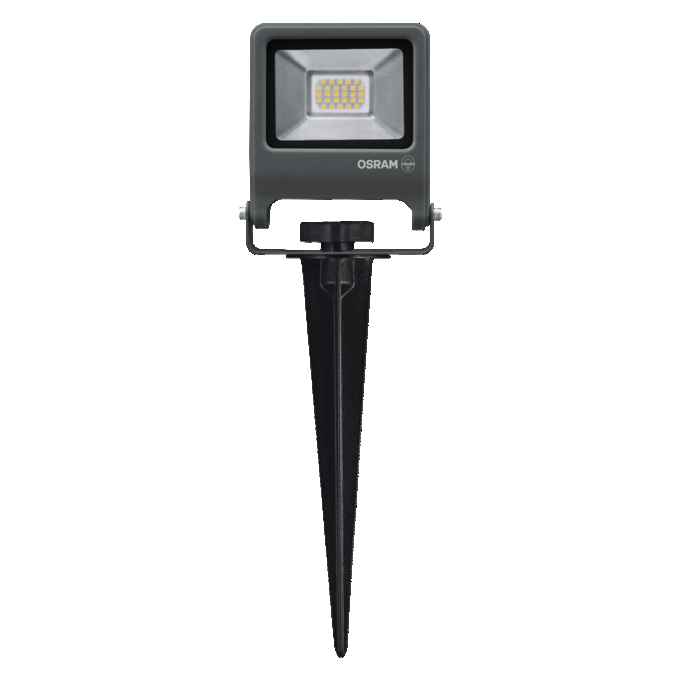

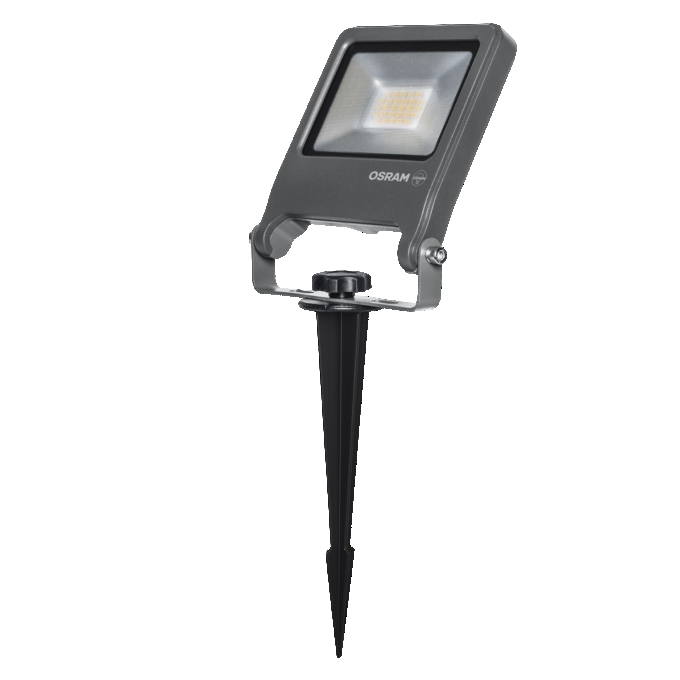

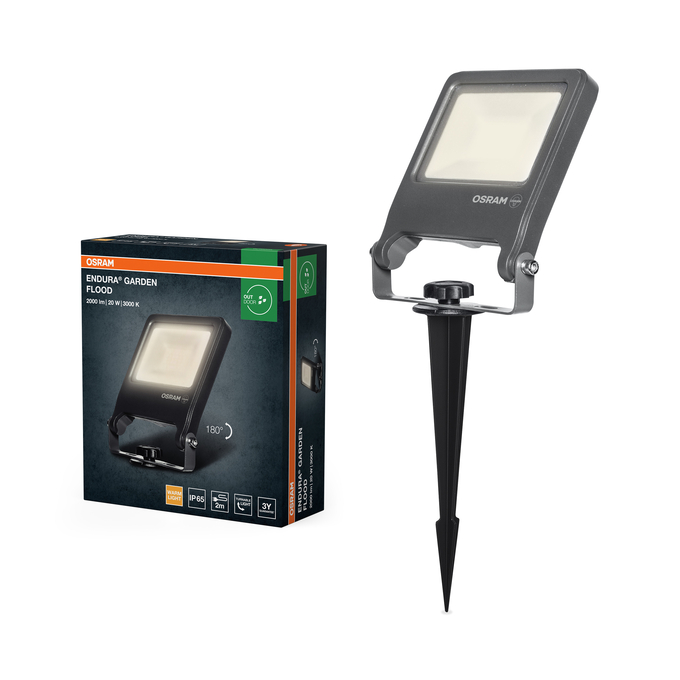

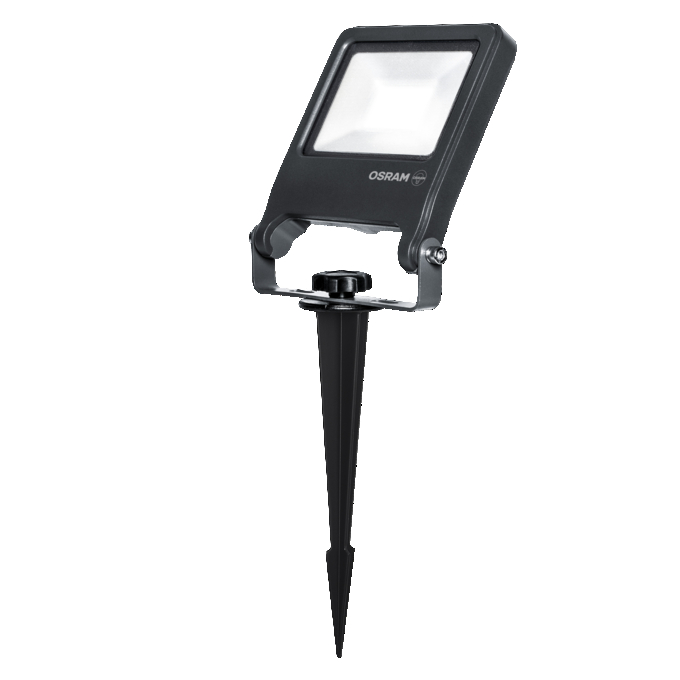

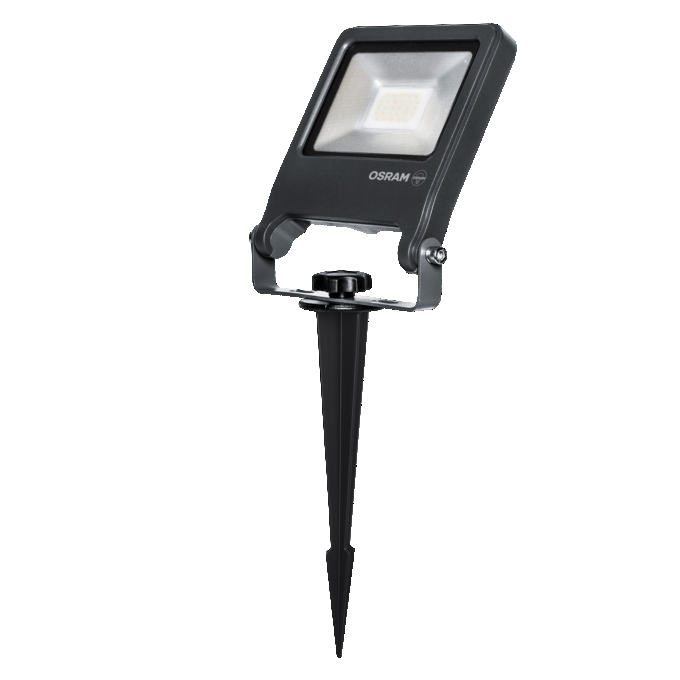

ENDURA Garden Flood Spike 20W 3000K
4099854585852
Product benefits
- Easy connection thanks to Plug and Play technology
- Pleasant, warm white light
- Energy-efficient thanks to LED technology
Areas of application
- Outdoor
- Gardens
Product features
- 2 m cable with protective contact plug (type F)
- Type of protection: IP65
Equipment / Accessories
- Complete mounting and connecting accessories included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
- To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
Ambient temperature range
-20…+40 °C
Application environment
Outdoor
Ball shot safe
No
Beam angle
120 °
Body material
Aluminum
Color rendering index Ra
≥80
Color temperature
3000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Additional info can be provided per individual request
Cover material
Glass
Dimmable
No
Flickering metric (Pst LM)
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854585852
Height
323.00 mm
Housing color
Dark gray
Length
44.00 mm
Lifespan L70/B50 at 25 °C
25000 h 1)
Light color (designation)
Warm White
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
85 lm/W
Luminous flux
1700 lm
Luminous intensity
700 cd
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
139
Max. number of luminaires per miniature circuit breaker C16
139
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Ground
Mounting type
Ground spike
Nominal current
92.000 mA
Nominal voltage
220…240 V
Nominal wattage
20.00 W
Number of switching cycles
15000
Operating mode
Electronic control gear (ECG)
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Power factor λ
> 0.90
Product color
Dark gray
Product recyclability
Mostly recyclable product 1)
Product weight
610.00 g
Protection class
I
Protection class IK (shock resistance)
IK03
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
6 sdcm
Standards
CE
Temperature range at storage
-30…70 °C
Total harmonic distortion
< 35 %
Total luminous flux of contained light sources
2000 lm
Type of connection
Protective contact Plug type
Type of emergency operation test
None
Type of protection
IP65
Width
133.00 mm
With light source
Yes
