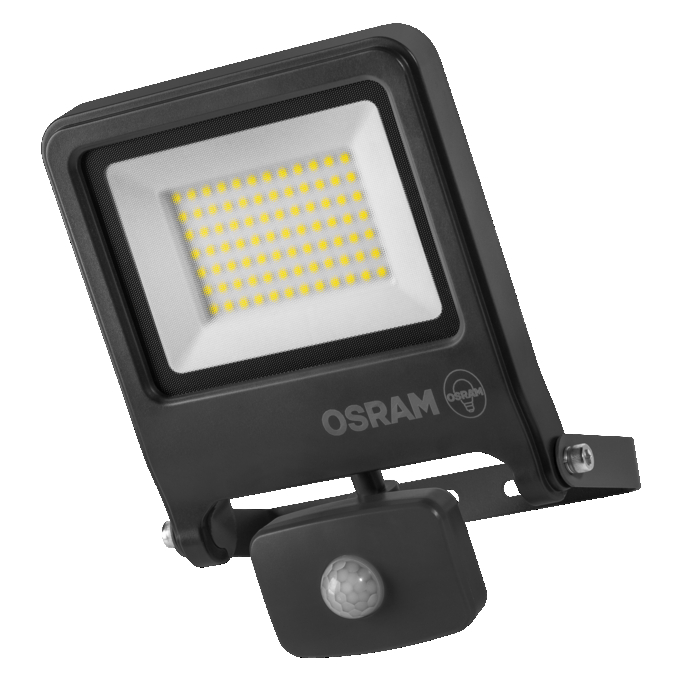

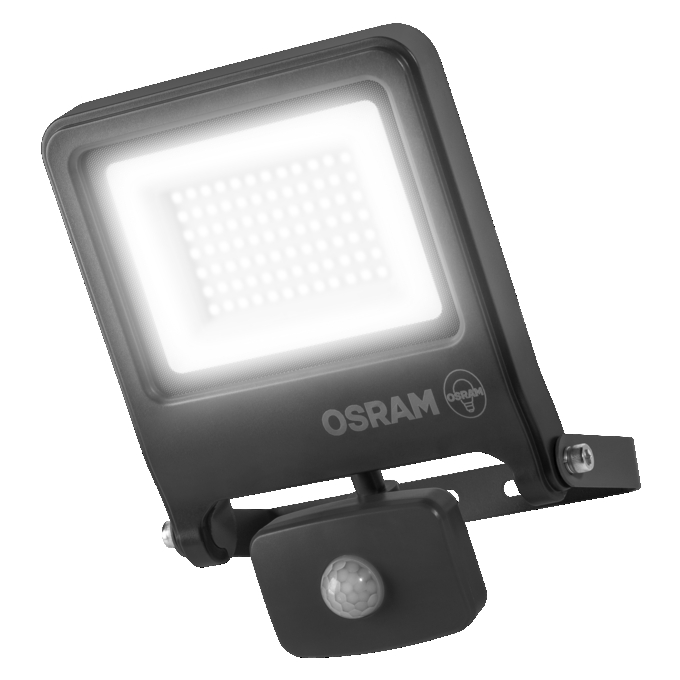

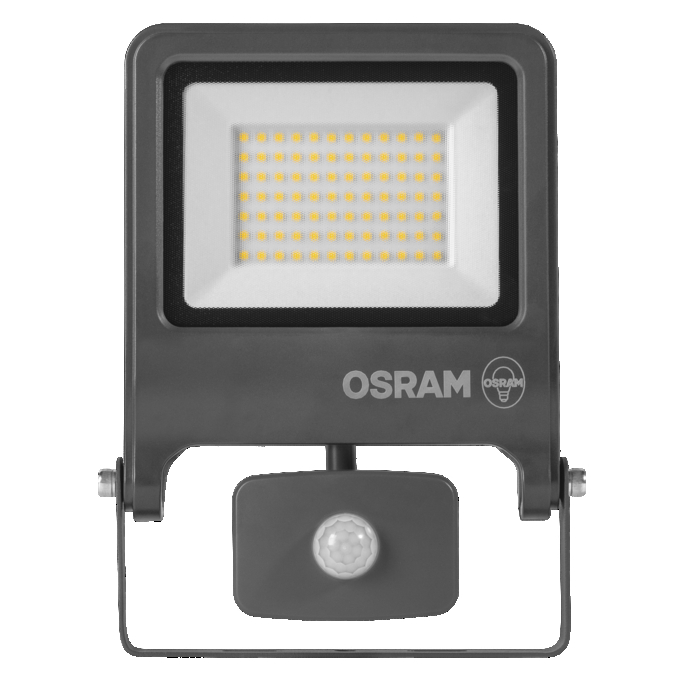

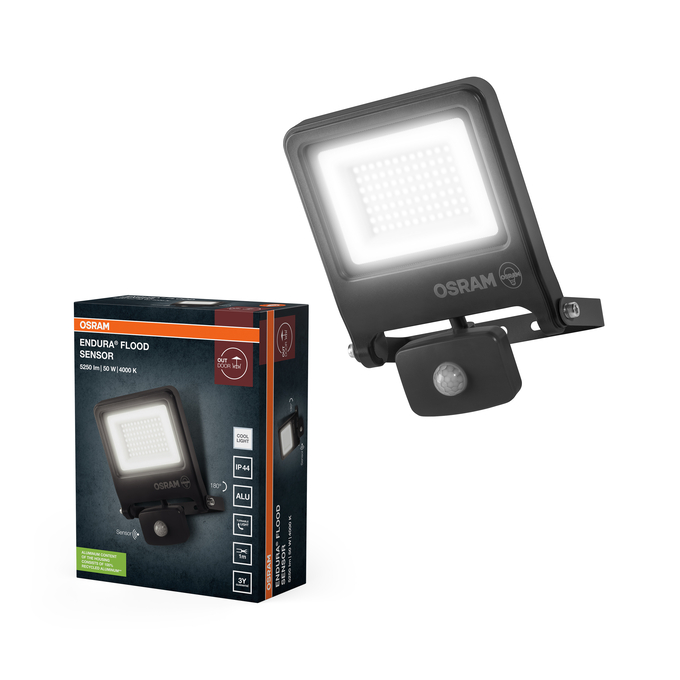

ENDURA® Flood Sensor Cool White PCR 50W Dark Grey
4099854487064
Product benefits
- Extremely compact functional design
- Quick and simple installation thanks to low profile, compact and light weight design
- Semi-frosted, tempered glass cover for uniform illumination
Areas of application
- Outdoor use (IP44)
- Garages
- Building facades
Product features
- Luminaire housing is made of 100 % recycled aluminum
- Small and compact housing size
- Higher efficiency up to 100 lm/W
- Very bright and functional outdoor LED luminaires
- Symmetrical beam angle: 110° x 110°
- Mounting bracket for up to 180° tilting
- Type of protection: IP65
- Connection via 1 m cable, wiring required
- Adjustable IR daylight and motion sensor with a detection range of up to 9 m
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
- To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
Ambient temperature range
-10…+35 °C
Application environment
Outdoor
Beam angle
110 °
Body material
Aluminum
Color rendering index Ra
> 80
Color temperature
4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Additional info can be provided per individual request
Cover material
Glass
Detection range of motion sensor
2…8 m
Detection threshold of daylight sensor
10…2000 lx
Dimmable
No
Flickering metric (Pst LM)
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854487064
Height
223.00 mm
Housing color
Dark grey
Inrush current time Th50
3.8 µs
Length
172.00 mm
Lifespan L70/B50 at 25 °C
30000 h 1)
Light color (designation)
Cool White
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
100 lm/W
Luminous flux
5000 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
51
Max. number of luminaires per miniature circuit breaker C16
51
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Wall
Mounting type
Surface
Nominal current
250.000 mA
Nominal voltage
220…240 V
Nominal wattage
50.00 W
Number of switching cycles
15000
Operating mode
Mains voltage
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Power factor λ
> 0.90
Product color
Dark grey
Product recyclability
Mostly recyclable product 1)
Product weight
720.00 g
Protection class
I
Protection class IK (shock resistance)
IK06
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Sensor controlled switching time
10 s…8 min
Sensor technology
Passive infrared (PIR)
Standard deviation of color matching
6 sdcm
Temperature range at storage
-30…+80 °C
Total harmonic distortion
< 20 %
Total luminous flux of contained light sources
5250 lm
Type of connection
Terminal, 3-Pole (L, N, PE)
Type of emergency operation test
None
Type of protection
IP44
Type of sensor
Lig
Width
70.00 mm
With light source
Yes
