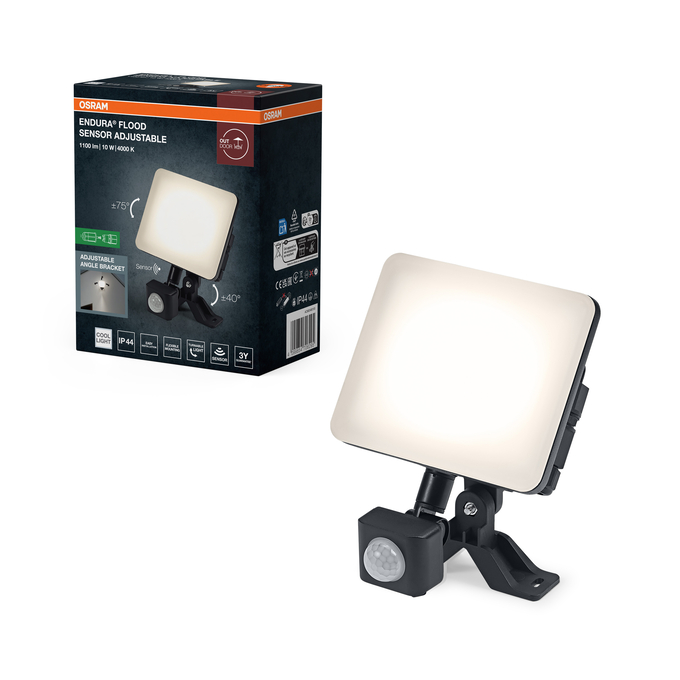

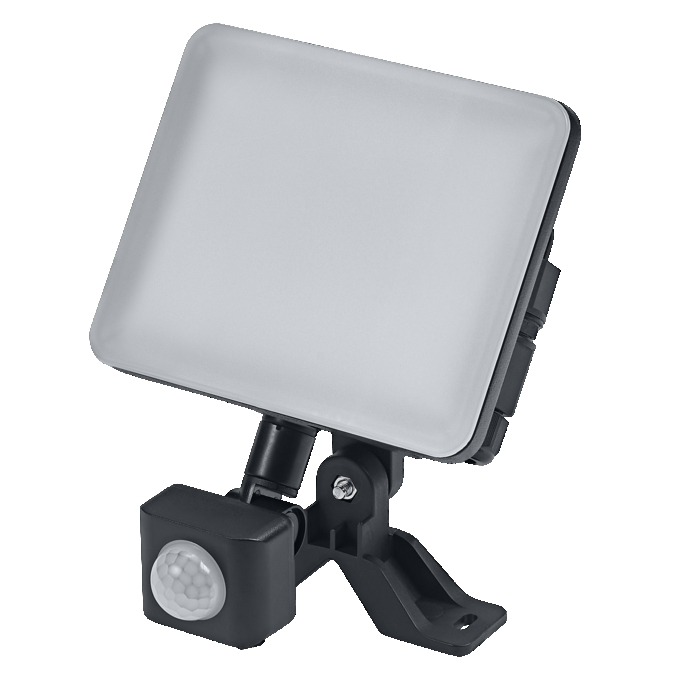

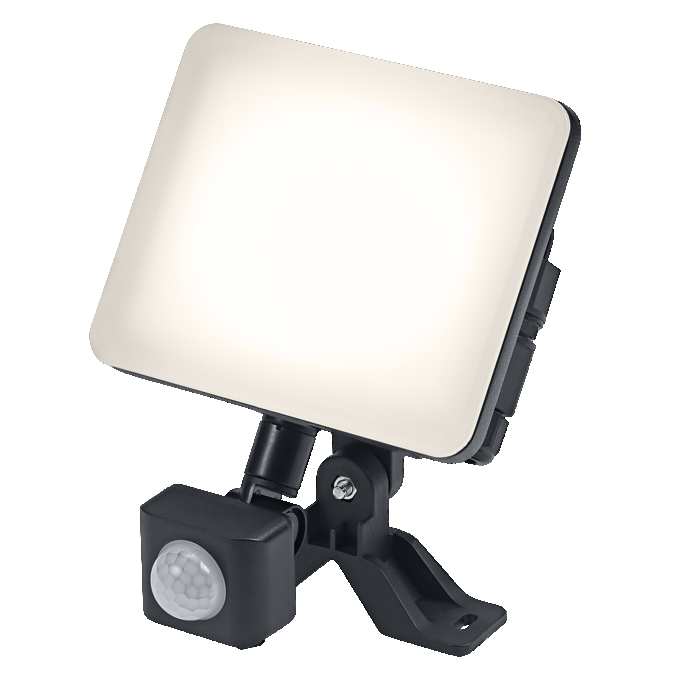

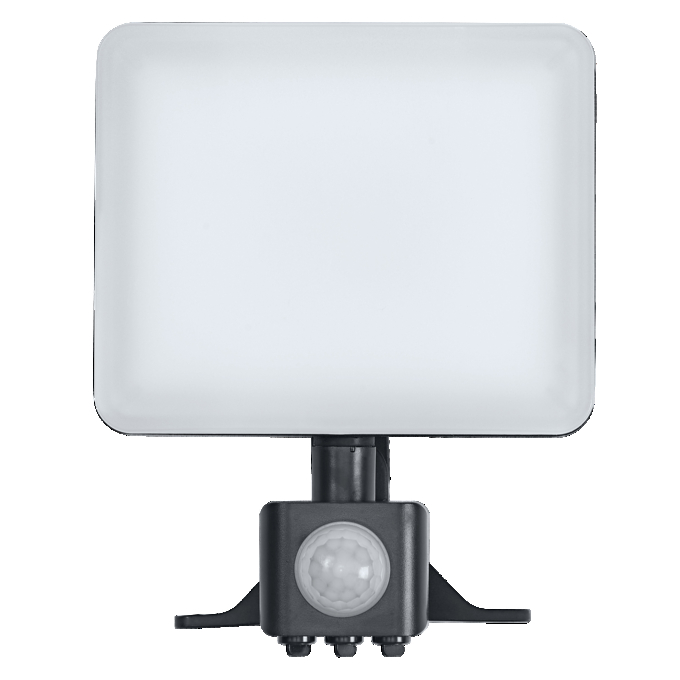

ENDURA® Flood Sensor Adjustable 10W 840 Black
4099854706295
Product benefits
- Customer can adjust the light in all kind of directions according to his needs
- Easy installation thanks to fast connector, no need for manual wiring work
- Easy adjustment of sensor range, daylight detection and hold time
Areas of application
- Outdoor
- Garages
- Building facades
Product features
- Versatile adjustable bracket: Floodlight can rotate vertically and horizontally
- Easy possibility to mount on 90° edges thanks to corresponding mounting holes
- Homogenous illumination thanks to Panel look
- Adjustable IR daylight and motion sensor
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
Ambient temperature range
-20…+40 °C
Beam angle
120 °
Body material
Aluminum
Color rendering index Ra
> 80
Color temperature
4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Polycarbonate (PC)
Detection range of motion sensor
5…8 m
Detection threshold of daylight sensor
5…2000 lx
Dimmable
No
Flickering metric (Pst LM)
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854706295
Height
166.00 mm
Housing color
Black
Inrush current
0.129 A
Inrush current time Th50
11.6 µs
Length
131.00 mm
Lifespan L70/B50 at 25 °C
30000 h 1)
Light color (designation)
Cool White
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
85 lm/W
Luminous flux
850 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
186
Max. number of luminaires per miniature circuit breaker C16
186
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Wall
Mounting type
Surface
Nominal current
45.000 mA
Nominal voltage
220…240 V
Nominal wattage
10.00 W
Number of switching cycles
25000
Operating mode
Mains voltage
Packaging recyclability
Mostly recyclable packaging 1)
Power factor λ
> 0.5
Product color
Black
Product recyclability
Mostly recyclable product 1)
Product weight
300.00 g
Protection class
I
Protection class IK (shock resistance)
IK05
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Sensor detection angle
120 °
Sensor IK rating
IK03
Sensor technology
Passive infrared (PIR)
Standard deviation of color matching
6 sdcm
Stroboscope effect metric (SVM)
Temperature range at storage
-30…+80 °C
Total luminous flux of contained light sources
1100 lm
Type of connection
Terminal, 3-Pole (L, N, PE)
Type of emergency operation test
None
Type of protection
IP44
Type of sensor
Lig
Width
92.00 mm
With light source
Yes
