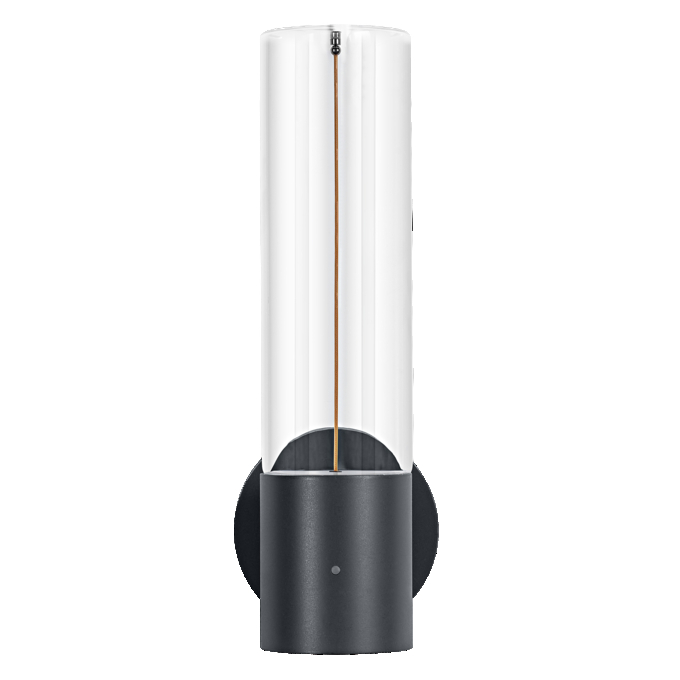

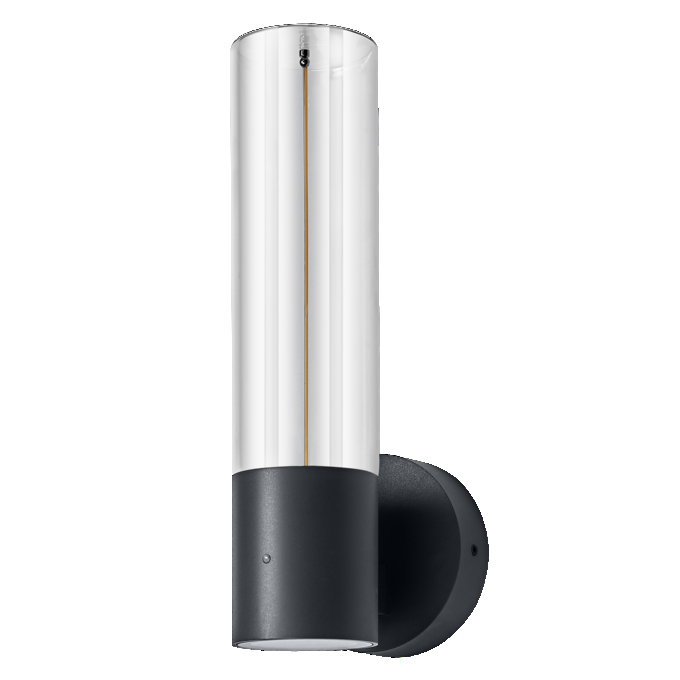

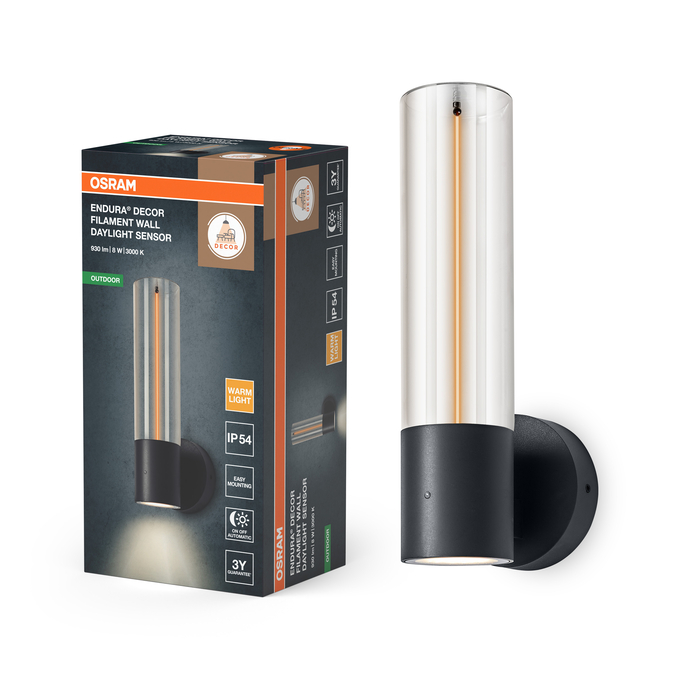

ENDURA® Decor Filament Wall Daylight Sensor 8W IP54 Dark Grey
4099854705014
Product benefits
- Decorative wall light
- Daylight sensor automatically switches the light ON and OFF
- Long-term energy and cost savings
- Easy and quick installation
Areas of application
- Outdoor
- Decorative illumination
- Entrance lighting
- Patios, balconies
- General illumination
Product features
- High quality glass and aluminum housing finish
- Anthracite housing color
- Lower light smog, on-demand lighting (sensor version)
- 4 selectable operating modes: 1. 100% light brightness (Dusk to Dawn); 2. 30% light brightness (Dusk to Dawn); 3. 100% light brightness; 4. 30% light brightness
- Type of protection: IP54
- Energy-efficient thanks to LED technology
Equipment / Accessories
- Complete mounting and connecting accessories included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
Ambient temperature range
-20…+40 °C
Application environment
Outdoor
Ball shot safe
No
Beam angle
170 °
Body material
Glass|Aluminum
Color rendering index Ra
> 80
Color temperature
3000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Glass
Detection threshold of daylight sensor
20…40 lx
Dimmable
No
Flickering metric (Pst LM)
< 1
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854705014
Height
287.00 mm
Housing color
Dark gray
Length
100.00 mm
Lifespan L70/B50 at 25 °C
25000 h 1)
Light color (designation)
Warm White
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
75 lm/W
Luminous flux
600 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
195
Max. number of luminaires per miniature circuit breaker C10
155
Max. number of luminaires per miniature circuit breaker C16
249
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Wall
Mounting type
Surface
Nominal current
46 mA
Nominal voltage
220…240 V
Nominal wattage
8.00 W
Number of switching cycles
20000
Operating mode
Mains voltage
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
≥0.5
Product color
Dark gray
Product recyclability
Mostly recyclable product 1)
Product weight
715.00 g
Protection class
I
Protection class IK (shock resistance)
IK05
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Sensor detection angle
120 °
Sensor technology
Photocell
Standard deviation of color matching
6 sdcm
Stroboscope effect metric (SVM)
< 0.4
Temperature range at storage
-20…+80 °C
Total harmonic distortion
< 20 %
Total luminous flux of contained light sources
930 lm
Type of connection
Terminal, 3-Pole (L, N, PE)
Type of emergency operation test
None
Type of protection
IP54
Type of sensor
Light
Width
132.00 mm
With light source
Yes
