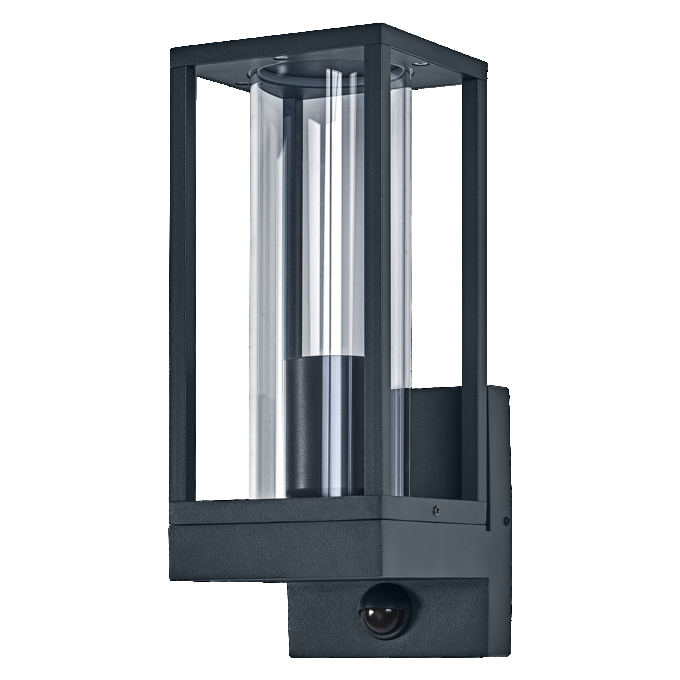

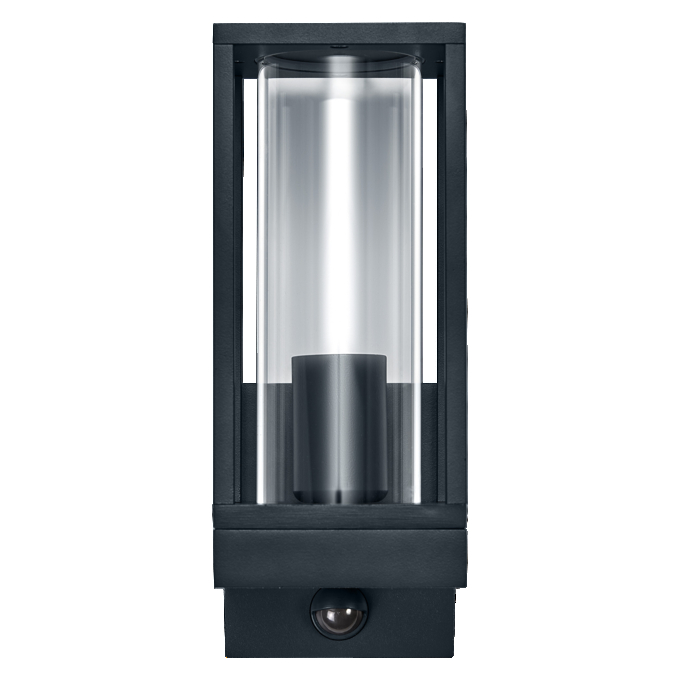

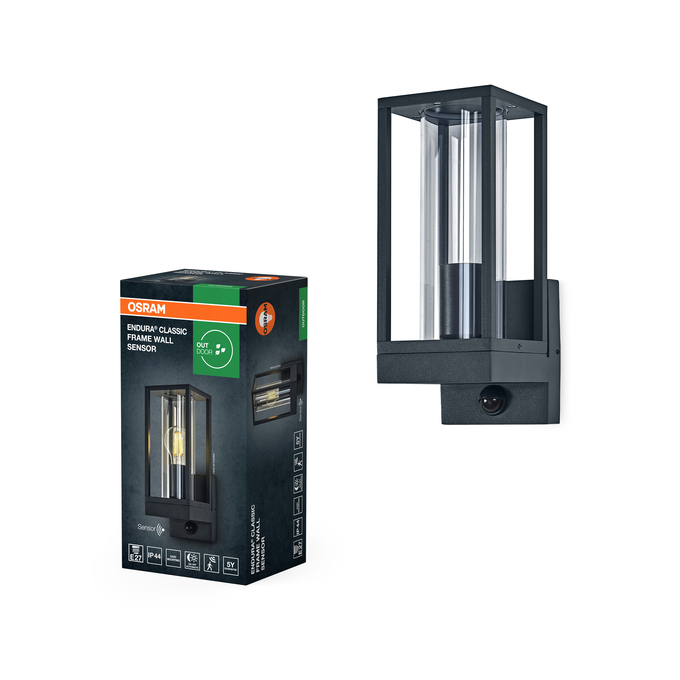

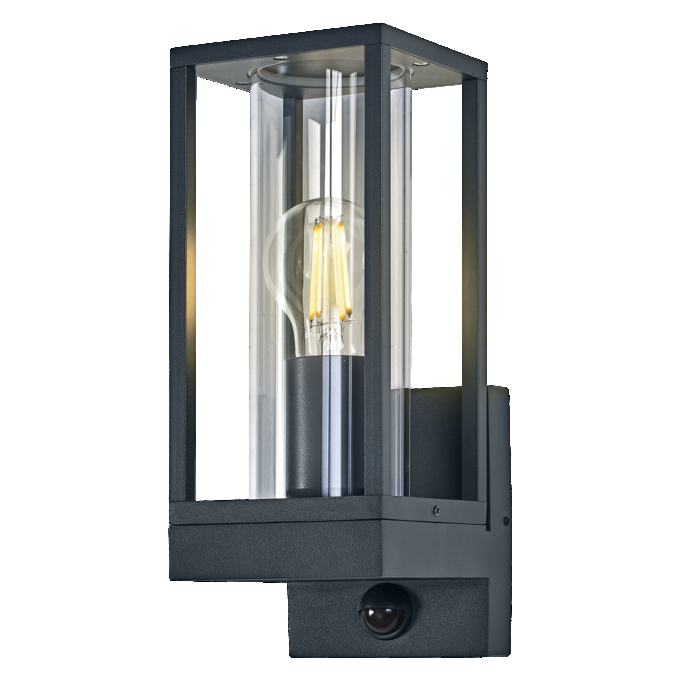

Endura Classic Frame Wall Sensor E27 IP54 Dark Grey
4099854415654
Product benefits
- High flexibility in the choice of the light source thanks to E27 socket
- Easy and quick installation
- Option with PIR motion detection and daylight sensor, matching with housing color available
- Long-term energy and cost savings (sensor version)
Areas of application
- Building facades
- Entrance lighting
- Patios, balconies
- Pathway lighting
- Driveways
Product features
- Suitable for smart applications thanks to compatibility with SMART+ lamps
- Lower light smog, on-demand lighting (sensor version)
- Direct illumination
- Light cover material: glass
- Light cover appearance: clear
- Housing material: aluminum
- Housing color: RAL 7016
- Type of protection: IP44
Equipment / Accessories
- Complete mounting and connecting accessories included
- No light sources included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
Ambient temperature range
-20…+40 °C
Application environment
Outdoor
Ball shot safe
No
Body material
Aluminum
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Glass
Detection range of motion sensor
4…10 m
Detection threshold of daylight sensor
30…10000 lx
Dimmable
No
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854415654
Height
285.00 mm
Holder designation
E27
Housing color
Dark grey
Length
110.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminaire with limited surface temperature, "D sign"
No
Mains frequency
50…60 Hz
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting type
Surface
Nominal voltage
220…240 V
Number of illuminants
1
Operating mode
Mains voltage
Packaging recyclability
Mostly recyclable packaging 1)
Product color
Dark grey
Product recyclability
Mostly recyclable product 1)
Product remark
Maximum bulb wattage: 40W (15W LED)
Product weight
1300.00 g
Protection class
I
Protection class IK (shock resistance)
IK03
Replaceable light source
No
Sensor controlled switching time
10 s…5 m
Sensor detection angle
100 °
Sensor technology
Passive infrared (PIR)
Temperature range at storage
-20…+80 °C
Type of connection
Terminal, 3-Pole (L, N, PE)
Type of protection
IP44
Type of sensor
Lig
Width
140.00 mm
With light source
No
