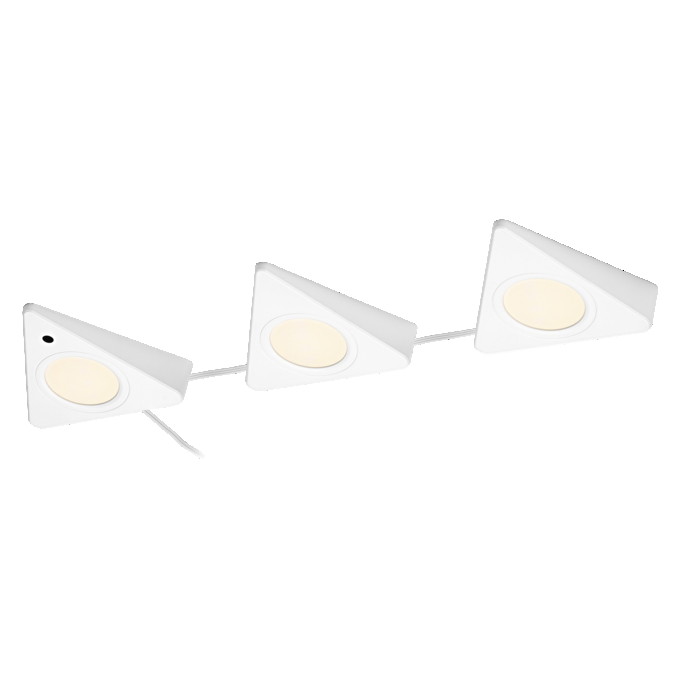

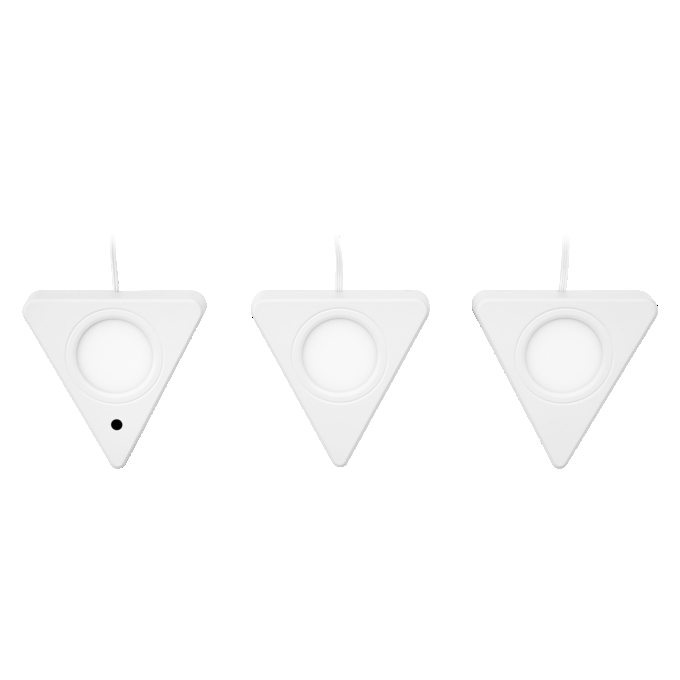

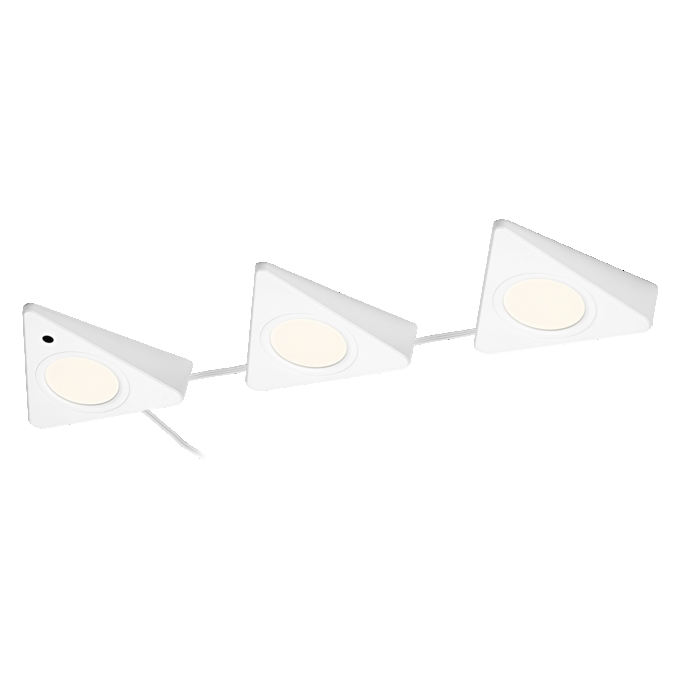

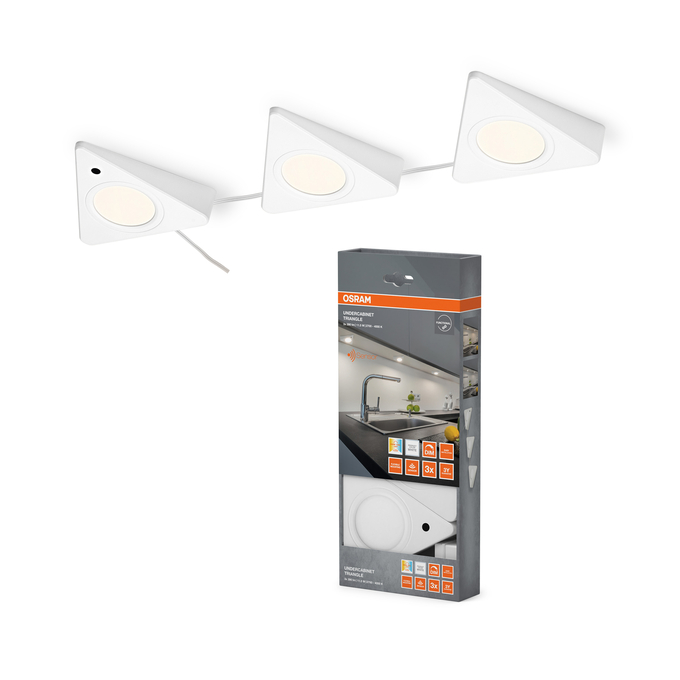

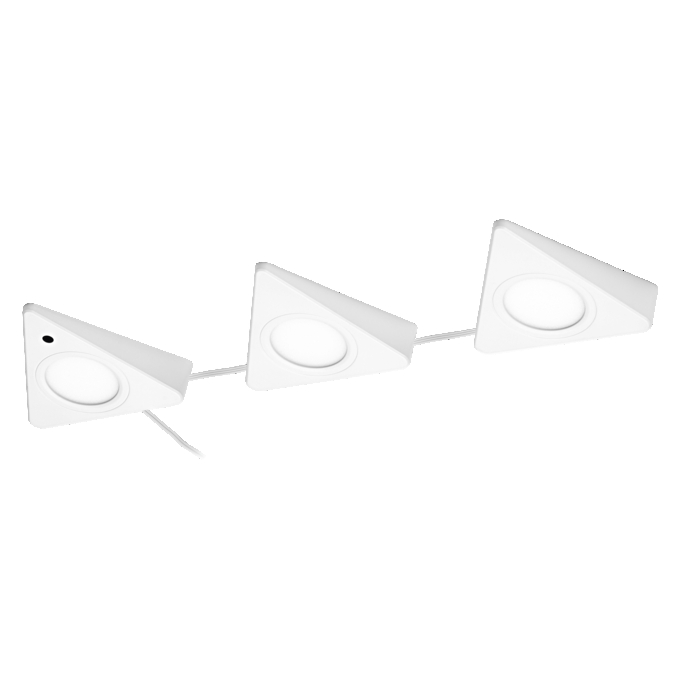

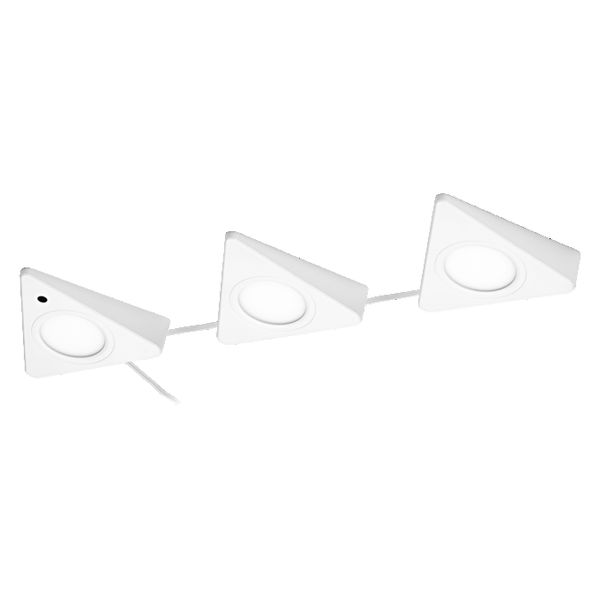

Undercabinet Triangle 11.5 W CCT DIM White
4099854856310
Product benefits
- Easy and quick series connection thanks to simple plug system
- Highly versatile due to selectable color
Areas of application
- Kitchens, Living areas, Shelf and undercabinet lighting
Product features
- Triangular undercabinet luminaire in a classic design in a 3-pack
- Color temperature adjustable in two steps
- Switch on and off and color change by movements with max. 5 cm distance in front of the infrared motion sensor
- Dimming by covering the infrared motion sensor for at least one second
- Lifetime up to 30,000 h
Equipment / Accessories
- Complete mounting and connecting accessories included
Safety advice
- If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by a qualified person in order to avoid a hazard.
- To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
Ambient temperature range
-20…+40 °C
Beam angle
120 °
Body material
Acrylonitrile butadiene styrene (ABS)
Color rendering index Ra
> 80
Color temperature
2700 K / 4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Polycarbonate (PC)
Detection range of motion sensor
0.05 m
Dimmable
Yes
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854856310
Height
35.00 mm
Housing color
White
Inrush current
16.6 A
Inrush current time Th50
144 µs
Length
130.00 mm
Lifespan L70/B50 at 25 °C
30000 h 1)
Light color (designation)
Warm Whi
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
60 lm/W
Luminous flux
700 lm
Mains frequency
50/60 Hz
Max. number of luminaires per miniature circuit breaker B16
31
Max. number of luminaires per miniature circuit breaker C10
28
Max. number of luminaires per miniature circuit breaker C16
36
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting type
Surface
Nominal current
77 mA
Nominal voltage
220…240 V
Nominal wattage
11.50 W
Operating mode
Mains voltage
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
> 0.5
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
390.00 g
Protection class
II
Reference control setting of contained light source (Kelvin)
4000 K
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Sensor detection angle
90 °
Sensor technology
Infrared/Photocell
Standard deviation of color matching
< 6 sdcm
Total harmonic distortion
130 %
Total luminous flux of contained light sources
1170 lm
Type of connection
Plug type C (EU)
Type of dimming
PWM
Type of protection
IP20
Type of sensor
Motion
Width
125.00 mm
With light source
Yes
