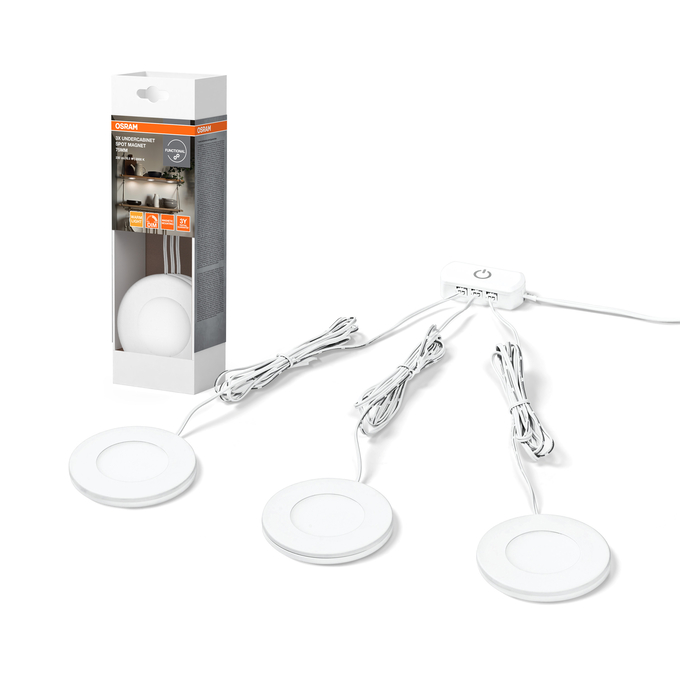

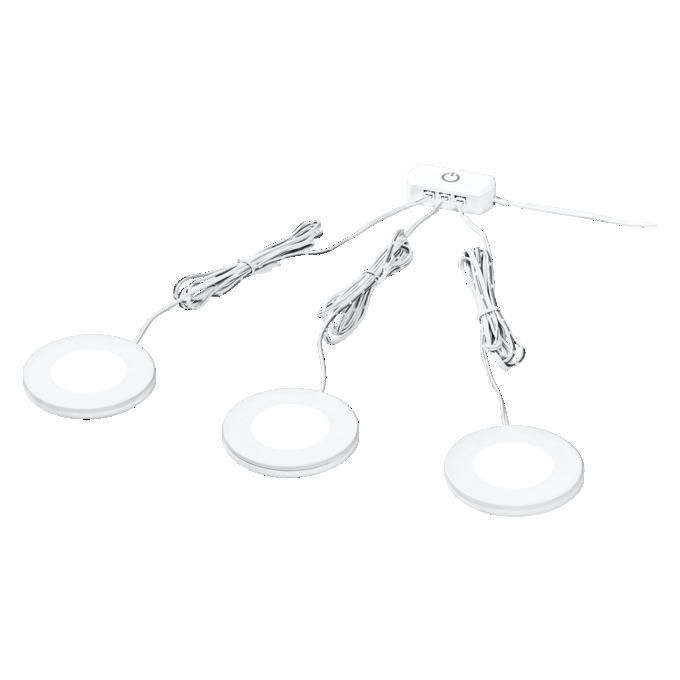

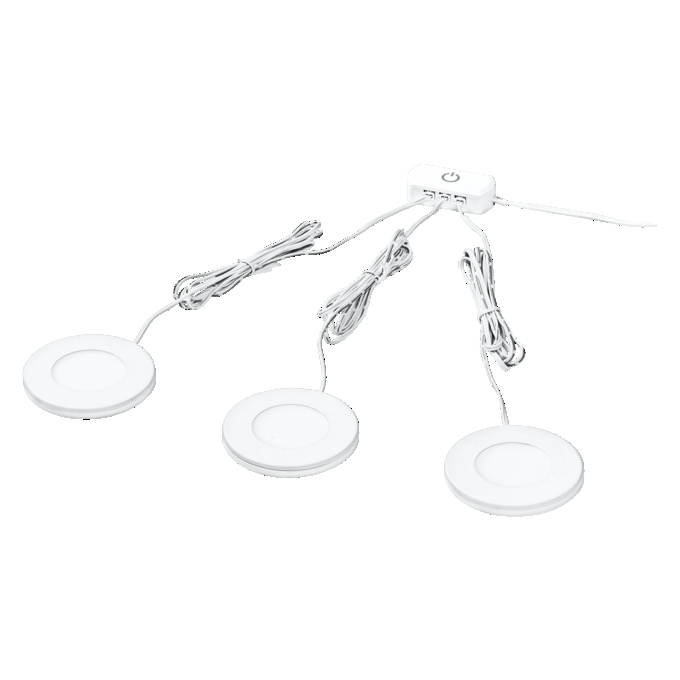

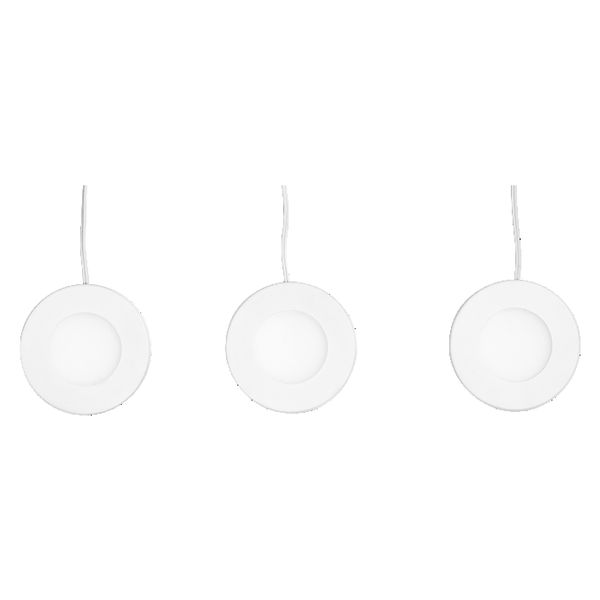

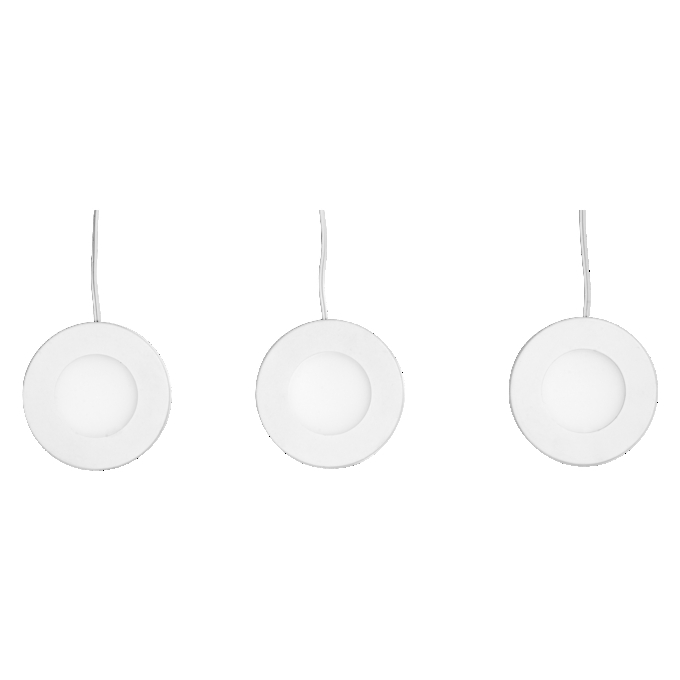

Undercabinet Spot Magnet 75mm 8.5W 830
4099854462450
Product benefits
- Modern design with very flat luminaire base
- Spotlights for Undercabinet illumination
- Magnetic closure
- Easy mounting
Areas of application
- Kitchens
- Living areas
- Undercabinet lighting
Equipment / Accessories
- Mounting screws and dowels included
Safety advice
- The luminaires are not suitable for covering with thermally insulated material.
- To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
Ambient temperature range
-20…+40 °C
Application environment
Indoor
Beam angle
120 °
Body material
Aluminum|Plastic
Color rendering index Ra
> 80
Color temperature
3000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Diameter
75.00 mm
Dimmable
Yes
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854462450
Height
7.00 mm
Housing color
White
Lifespan L70/B50 at 25 °C
30000 h 1)
Light color (designation)
Warm White
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
45 lm/W
Luminous flux
390 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
64
Max. number of luminaires per miniature circuit breaker C16
64
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting type
Surface
Nominal current
49.000 mA
Nominal voltage
220…240 V
Nominal wattage
8.50 W
Operating mode
Integrated LED driver
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Power factor λ
> 0.5
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
240.00 g
Protection class
III
Replaceable light source
No
Standard deviation of color matching
6 sdcm
Total harmonic distortion
< 60 %
Type of connection
Cable, 3-pole
Type of dimming
CLICKSWITC
Type of protection
IP20
With light source
Yes
