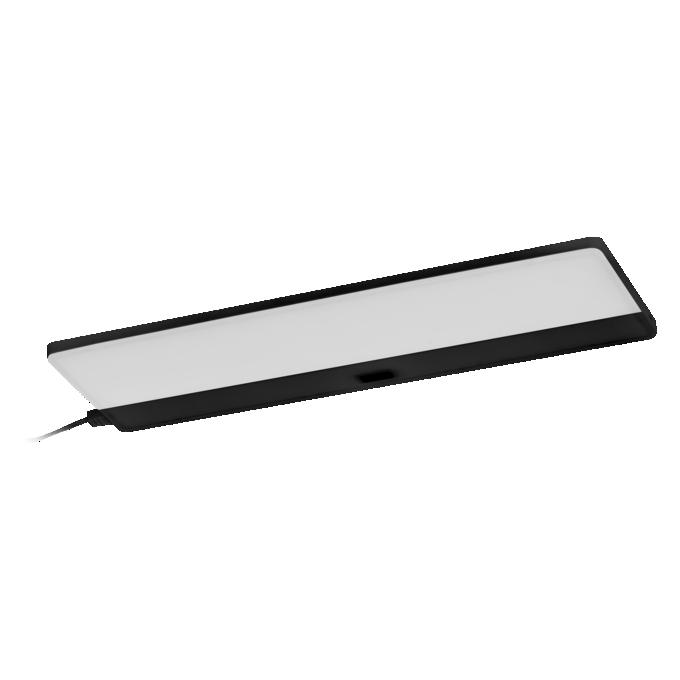

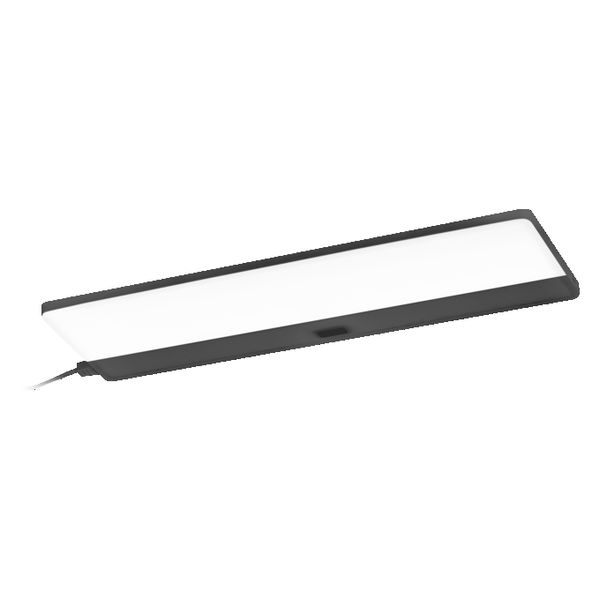

Undercabinet Panel Frameless 30x10cm CCT DIM Black
4099854463099
Product benefits
- Easy and quick series connection thanks to simple plug system
- Connection of up to 3 luminaires in a row via enclosed connector cable
- Highly versatile due to selectable CCT
Areas of application
- Kitchens, Living areas, Shelf and undercabinet lighting
Product features
- Low voltage luminaire for DC operation with external driver
- Easy and fast mounting on nearly every surface (adhesive tape)
- Color temperature adjustable in three steps
- Switch on and off and color change by movements with max. 6 cm distance in front of the infrared motion sensor
- Stepless dimming by covering the infrared motion sensor in max. 6 cm distance for at more than one second
- 2 different lengths available
- Lifetime up to 30,000 h
Equipment / Accessories
- Complete mounting and connecting accessories included
Safety advice
- To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
Adjustable
No
Ambient temperature range
-20…+40 °C
Application environment
Indoor
Beam angle
110 °
Body material
Polycarbonate (PC)
Cable length
1500 mm
Color rendering index Ra
> 80
Color temperature
3000 K / 4000 K / 6500 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Polycarbonate (PC)
Dimmable
Yes
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854463099
Height
8.00 mm
Housing color
Black
Inrush current time Th50
245 µs
Length
300.00 mm
Lifespan L70/B50 at 25 °C
30000 h 1)
Light color (designation)
Warm Whi
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
44 lm/W
Luminous flux
220 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
57
Max. number of luminaires per miniature circuit breaker C10
51
Max. number of luminaires per miniature circuit breaker C16
82
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting type
Surface
Nominal current
45.000 mA
Nominal voltage
220…240 V
Nominal wattage
5.00 W
Number of switching cycles
15000
Operating mode
Mains voltage
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Power factor λ
≥0.5
Product color
Black
Product recyclability
Mostly recyclable product 1)
Product weight
330.00 g
Protection class
III
Replaceable light source
No
Standard deviation of color matching
< 6 sdcm
Standards
CE
Temperature range at storage
-20…+80 °C
Total harmonic distortion
< 130 %
Total luminous flux of contained light sources
250 lm
Type of connection
Plug type C (EU)
Type of dimming
PIR STEP
Type of protection
IP20
Width
100.00 mm
With light source
Yes
